SF6 Leak Detector vs Area Monitor: Which Do You Need?

An SF6 leak detector and an SF6 area monitor are two different instruments. A handheld leak detector finds where sulphur hexafluoride is escaping, while a fixed area monitor warns the room when the gas has already built up. Most substations and switchgear halls need both jobs covered, and buying the wrong type is the most common mistake.

Which SF6 detector do I need: a handheld leak detector or a fixed area monitor?

Choose by the question you need answered. If the question is where is the gas escaping?, you need a handheld leak detector (a "sniffer"). If the question is is the air in this room safe right now?, you need a fixed area monitor. They are complementary: the sniffer is used on a maintenance round, the monitor runs 24/7 between rounds.

Why does SF6 leak detection matter in Canada?

SF6 is the insulating gas in most high-voltage gas-insulated switchgear (GIS) and circuit breakers, and it is a regulated greenhouse gas. Environment and Climate Change Canada notes that SF6 was added to Schedule 1 of CEPA in November 2005, that it is colourless, odourless and heavier than air, and that large releases can cause death by suffocation. Releases to the atmosphere are reportable by large facilities that exceed the combined greenhouse-gas threshold.

The US EPA puts SF6 at 23,500 times the heat-trapping effect of CO2 over 100 years and lists leak detection and repair as one of the cost-effective ways utilities reduce emissions. The gas is also expensive to replace, so an undetected slow leak costs money as well as emissions.

How does a handheld SF6 leak detector work?

Sensing technology matters more than any other spec. Two approaches dominate the market:

• Negative Ion Capture (NIC): ion-based sensing used by Ion Science. Its SF6 LeakCheck P1:p literature quotes a minimum detection level of 1 x 10^-7 ml/sec (1 x 10^-8 ml/sec with the Highsense option), a T90 rise and clear-down under one second, and no loss of function after exposure to a large leak, including 100% concentration. The source is non-radioactive, so no radioactive-source registration or shipping paperwork applies.
• Infrared (NDIR): measures absorption of infrared light by SF6. It is selective and used in several handheld models; check the published leak-rate sensitivity and response time rather than assuming parity with NIC.

When you compare quotes, ask for sensitivity in the same unit (ml/sec or ppm), response and clear-down time, whether the instrument recovers after a large leak, and how it is calibrated. The P1:p, for example, is calibrated with the CalCheck accessory and logs more than 500 data points with date and time stamps for the maintenance record.

What does a fixed SF6 area monitor do that a sniffer cannot?

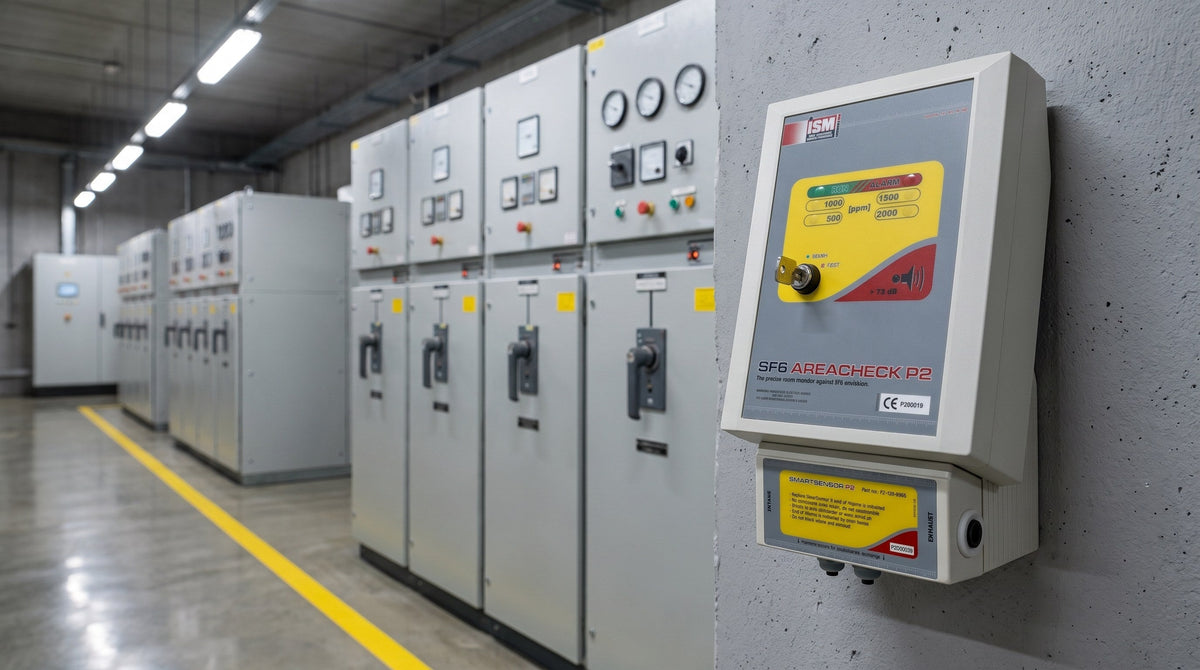

A fixed monitor watches the room when nobody is carrying a sniffer. The Ion Science SF6 AreaCheck P2 is a wall-mounted unit built for continuous SF6 monitoring in switchgear rooms and substations. From the manufacturer literature:

• NIC detection with a 0-2000 ppm SF6 range, and no cross-sensitivity to other gases or moisture in air.
• Audible alarm above 75 dBA at 1 m, visual alarm, and a relay output rated 2.5 A / 230 VAC for ventilation interlocks or a building alarm panel.
• RS485 network and RS232 outputs, set-up by PC or network interface, and a built-in low-flow alarm with self-diagnostics.
• User-exchangeable SmartSensor with a service life of up to 12 months, 100-240 VAC supply, IP52 enclosure, -5 to 45 °C operating range.

The product literature cites a maximum allowable concentration of 1000 ppm for SF6, and the AreaCheck P2 front panel indicates 500, 1000, 1500 and 2000 ppm. Confirm the alarm set-points against your own site procedure and applicable provincial occupational health and safety rules before commissioning.

How do I choose between NIC and infrared SF6 detectors for switchgear?

Match the technology to the duty, not the price:

• Frequent leak hunting on GIS compartments: prioritise sensitivity and fast clear-down so you can sweep a joint, step away and re-check without waiting.
• Occasional verification after maintenance: a simpler handheld may be enough, provided its published sensitivity is below your leak-rate acceptance limit.
• Room safety and compliance records: add a fixed monitor; a handheld does nothing between inspections.
• Calibration and traceability: ask how and how often the instrument is checked. Our gas detector calibration guide and bump test vs calibration guide explain the routine for portable instruments in general.

For continuous multi-gas systems beyond SF6, see the fixed gas detectors collection and our fixed gas detectors buyer's guide. For portable instruments, see the portable gas detectors collection and the portable gas detector buyer's guide.

What should I tell ERE when I ask for an SF6 quote?

ERE Inc. is a Canadian multi-brand distributor of environmental and gas-detection instruments and has served consultants since 1994. Send us the following and an engineer will recommend the right instrument or combination:

• The job: leak location on equipment, room monitoring, or both.
• The environment: indoor GIS hall, outdoor substation, or a lab or test bench.
• Sensitivity you need to demonstrate (leak rate or ppm) and your reporting obligations.
• Alarm outputs required: relay, network, or panel interface.

The AreaCheck P2 area monitor is listed on our website; contact us about the Ion Science SF6 LeakCheck P1:p handheld system. Pricing is quoted on request.

Frequently Asked Questions

Is SF6 toxic?

Environment and Climate Change Canada describes SF6 as non-toxic except at extreme temperatures, but it is heavier than air and can cause suffocation if a large quantity is released in an enclosed space. That is why room monitoring is used alongside leak detection.

Can a handheld SF6 leak detector replace a fixed monitor?

No. A handheld detector only measures where the operator is pointing it, while a fixed monitor alarms continuously. Use the handheld to locate leaks and the fixed monitor to protect the room.

How often does the AreaCheck P2 sensor need replacing?

The AreaCheck P2 uses a user-exchangeable SmartSensor with a service life of up to 12 months, according to the manufacturer literature.

Does ERE sell SF6 leak detectors in Canada?

ERE lists the Ion Science SF6 AreaCheck P2 area monitor on its website. For the Ion Science SF6 LeakCheck P1:p handheld system, contact us for availability and send your application for a recommendation.
