Systèmes mobiles et conteneurisés de traitement de l'eau pour l'assainissement environnemental — filtration à haut débit, floculation et unités de pompage-traitement.
Média : zéolite clinoptilolite | Granulométrie : 14×40 (0,4–1,4 mm) | Densité : 55 lb/ft³ | Filtration : <5 µm nominal | Capacité : 2,6–2,8× le sable
Coconut shell GAC | chlorine/taste/odor | max 110°F | max 125 psig | min 30 psig inlet
Zeolite | 14x40 mesh | 5 micron nominal | 12-20 gpm/sq.ft | bed 36-48 in | NSF/ANSI 61 & 372
Coconut-shell GAC | Iodine ≥1000 mg/g | Hardness ≥97% | Sizes 8x30, 12x40 & powder
Catalytic coconut shell | 12x40 mesh | iodine min 1000 mg/g | BET 1060 m2/g | hardness min 98% | 1 cu ft ~29 lb
SAC gel 8% crosslink | 16x50 mesh | cap >2.0 eq/L | 2-5 gpm/ft3 | pH 0-14 | NSF/ANSI 61 | 1 cu ft / 52 lb
SBA gel | quaternary ammonium | Cl- form | cap 1.3 eq/L | 300-1200 um | pH 0-14 | max 100C(Cl)/60C(OH) | 1 cu ft / 43 lb
Mixed bed SAC+SBA | H+/OH- regenerated | ~1:1 equiv | 425-1200 um | UC max 1.7 | DI/ultrapure | 1 ft3/bag
75-85% MnO2 | 12x40 mesh | 6 gpm/cu.ft | pH 6.5-9.0 | NSF/ANSI 61 | 0.5 cu ft / 57 lb
Effective size 0.30-0.35mm | 2-12 gpm/ft² | pH 6.2-8.5 | NSF/ANSI 61
Iron-enhanced activated alumina | Surface area 280 m²/g | Bulk density 66 lb/ft³ | Mesh 14x28 & 28x48 | NSF/ANSI 61
Granular activated alumina | Al2O3 93% | Surface area 330 m²/g | Bulk density 48 lb/ft³ | Mesh 14x28 & 28x48
50/50 organoclay + coconut GAC | 8x30 mesh | Iodine ≥1150 mg/g | Density 43-45 lb/ft³ | pH 4-10 | 50 lb

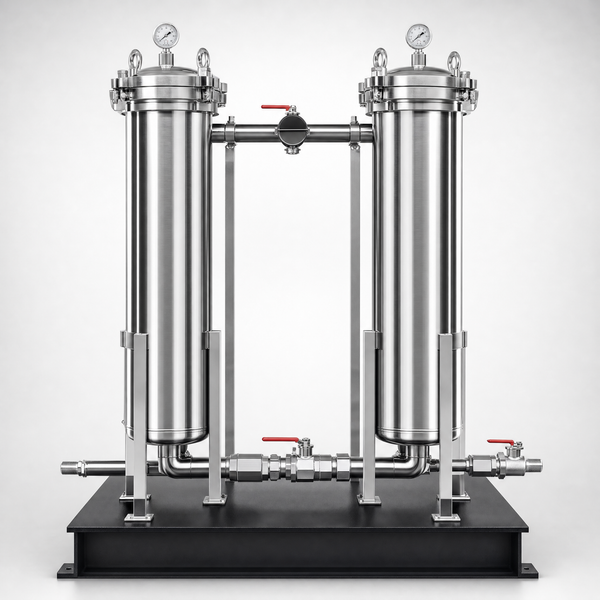

Configuration: dual bag filter housing | Construction: stainless steel | Footprint: compact | Condition: new
Technology: membrane ultrafiltration | Grade: industrial | Membrane: replaceable | Pre-filtration: filter bags included
Cleaning: self-cleaning backwash | Footprint: compact | Runtime: 24/7 continuous | Maintenance: low

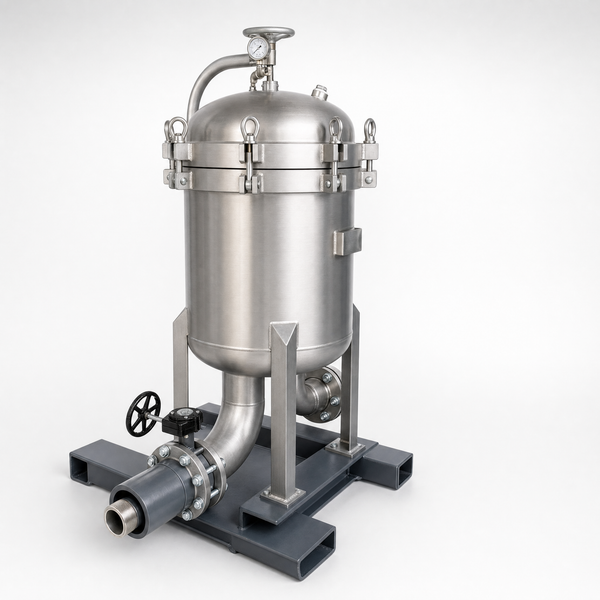

Configuration: multi-bag parallel | Construction: stainless steel | Pump: submersible included | Monitoring: water meter included
Process: gravity settling & clarification | Footprint: compact | Pump: submersible compatible | Maintenance: easy-clean design
Operation: continuous flow | Treatment: automated acid dosing | Pumping: submersible pump included | Acid resupply: every 3–4 months
Vessels: 2 large-diameter | Frame: heavy-duty reinforced cage | Media: GAC / multi-media / specialty | Includes: submersible pumps + water meter
Vessels: 3, quick-connect | Frame: cage-mounted (crane/forklift) | Media: GAC or multi-media | Includes: submersible pumps + water meter
Flow: 500 GPM (113 m³/h) | Media: 600 ft³ (17 m³) | Frame: 20 ft ISO | Operating weight: ≈ 40,000 lb
Flow: up to 200 GPM parallel / 100 GPM series | Tanks: (4) 61" FRP Type 60 | Housings: (2) 4-bag SS | Container: 30 ft marine-grade insulated
Model: ER-92-125 | Footprint: 8.5' L x 4.8' x 108" H | Power: 230/3/60 | Dry-flocculant batch process
