Caractéristiques
• Raccordement sur un plus petit diamètre de façon économique
• Offert en HDPE noir ou en Nylon 6
• Offert en différentes tailles
Plages de température
• HDPE : -55 °C à 90 °C
• Nylon : -40 °C à 100 °C
• FPT - Filetage conique femelle
• GHT - Filetage de boyau d'arrosage
| Nylon 6 | HDPE noir | Taille du tube | Taille du tube | Quantité |
| CO-C42 | CO-C42PE | ¼" D.I. | 1/8" D.I. | 10/paquet |
| CO-C43 | CO-C43PE | ¼" D.I. | 3/16" D.I. | 10/paquet |
| CO-C64 | CO-C64PE | 3/8" D.I. | ¼" D.I. | 10/paquet |
| CO-C84 | CO-C84PE | ½" D.I. | ¼" D.I. | 10/paquet |
| CO-C86 | CO-C86PE | ½" D.I. | 3/8" D.I. | 10/paquet |
| CO-C106 | CO-C106PE | 5/8" D.I. | 3/8" D.I. | 10/paquet |
| CO-C108 | CO-C108PE | 5/8" D.I. | ½" D.I. | 10/paquet |
Équipement connexe en stock
Connecteurs
Nylon 6 (natural) or Black HDPE | Sizes: 1/8\" to 1-1/2\" I.D. | Straight barb-to-barb hose mender | Nylon temp: -40°C to 100°C | HDPE temp: -55°C to 90°C

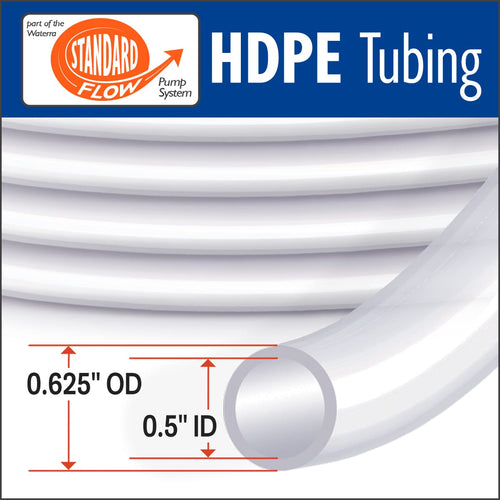

Tubes HDPE et LDPE
100% virgin HDPE/LDPE resin | HDPE working pressure: 65–250 psi @ 73°F | LDPE working pressure: 70–135 psi @ 73°F | Available diameters: 1/4" to 1" OD | Roll lengths: 100, 200, 500 ft | FDA 21 CFR 177.1520 compliant | PFAS-free
Clé à vue
For All Foot Valves Except WA-SS-06, WA-SS-09 & WA-SS-19
Pumps Solinst Modèle 408M Micro Double Valve
3/8\" (10 mm) OD x 6\" pump body | PTFE coaxial tubing | 316 SS sintered 50 micron filter | Flow: 20–150 ml/min | Tubing lengths: 90/140/240 ft
