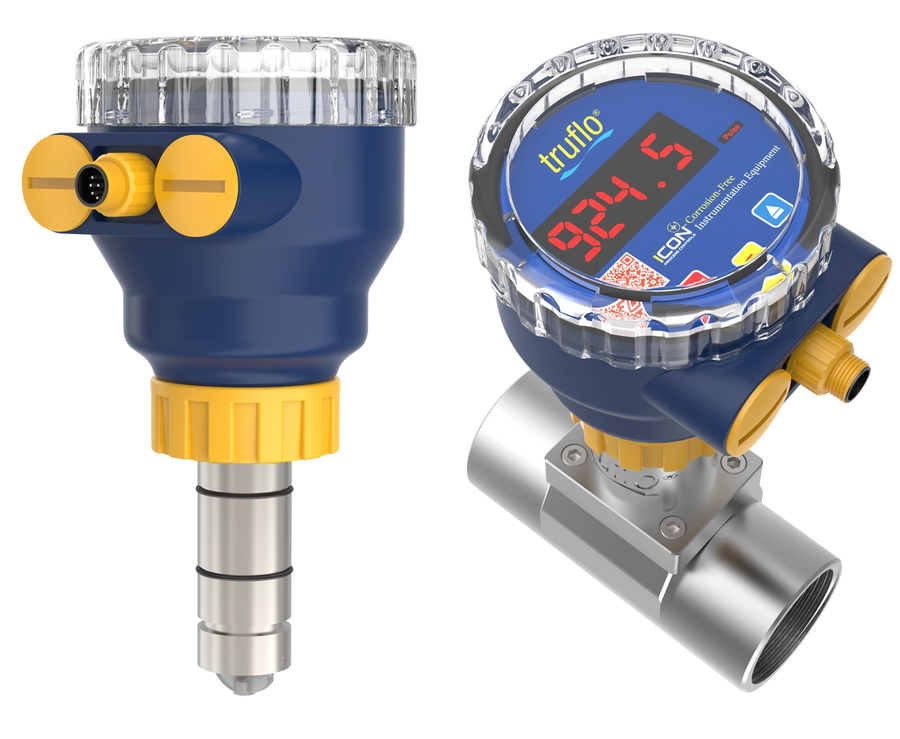

The TI3R is a 316 stainless steel insertion paddle wheel flow meter for pipes from 1/2 in to 24 in. It gives pulse, 4-20mA and 1 amp relay outputs. It installs through a tee, saddle or weld-on fitting.
- Pulse, 4-20mA and relay outputs
- IO-Link connectivity
- 316 stainless steel body
- Accuracy of ±0.5% of full scale
- Fits 1/2 in to 24 in pipe with TI3 Series fittings
- Lifetime warranty on the paddle wheel assembly
Install with a TI3 Series tee or weld-on fitting (sold separately). EPDM (+$49) or FFKM (+$399) seals are available. Contact us to order.
Pièces et accessoires
Icon 316 Stainless Steel Weld-On Adapter with PVDF Insert for TI3 Series Flow Meters (SWOL)
Pipe Size: 3 - 12 in | Wetted Material: 316 SS / PVDF
dès$399.95 CAD
Icon 316 Stainless Steel Threaded Tee Fitting for TI3 Series Flow Meters
Pipe Size: 1/2 - 4 in | Wetted Material: 316 SS
dès$499.85 CAD
Icon 316 Stainless Steel Sanitary Tee Fitting for TI3 Series Flow Meters
Pipe Size: 1/2 - 4 in | Wetted Material: 316 SS
dès$630.85 CAD
Icon 316 Stainless Steel Flanged Tee Fitting for TI3 Series Flow Meters (SSF)
Pipe Size: 1/2 - 4 in | Wetted Material: 316 SS
dès$630.85 CAD
