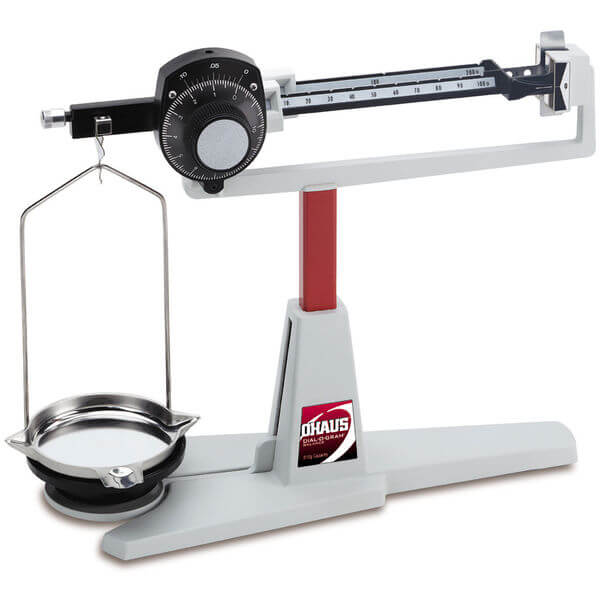

The Cent-O-Gram and Dial-O-Gram balances offer the accuracy and convenience of an integrated weigh below balance while allowing students to visualize mass measurement principles. Designed with a hanging pan system, both balances offer 10 times the readability of the Ohaus Triple Beam and Dial-O-Gram top loading balances.
Features
- With aluminum pressure castings for the base and beam assembly, agate bearings, steel knife-edges, and stainless steel pan, the Dial-O-Gram is built to the highest standard of quality.
- The three-point base, special floating bearing principle and beam design eliminates the need for level adjustments.
- The self-aligning beam ensures accurate results are garnered effortlessly.
Details
| Applications | Weighing |
| Display | Easy to-read deep-notched, tiered beams and dial plates |
| Operation | N/A |
| Communication | N/A |
| Construction | Metal base and beam, stainless steel pan |
| Design Features | self-aligning beam design, magnetic damping to minimize oscillation and speed weighing, zero adjust compensator |
Models
| Part Number | Model | Maximum Capacity | Readability | Pan Size | Pan Type |
|---|---|---|---|---|---|
| OH-80000009 | 310-00 | 310 g | 0.01 g | 0.5 in x 3.5 in (13 mm x 89 mm) | Removable Pan |
| OH-80000010 | Mechanical Scale, 311-00 | 311 g | 0.01 g | 0.5 in x 3.5 in (13 mm x 89 mm) | Removable Pan |
Équipement connexe en stock

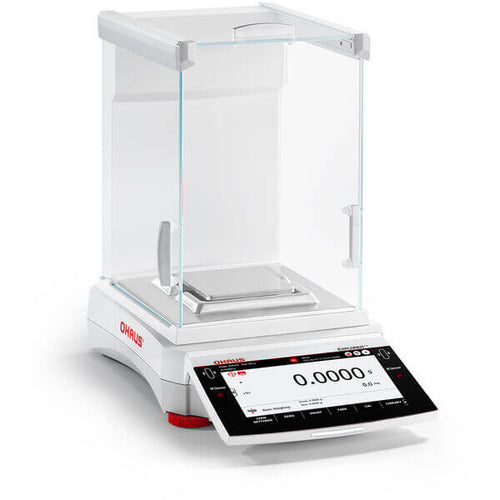

OHAUS Explorer™ Analytical EXR
