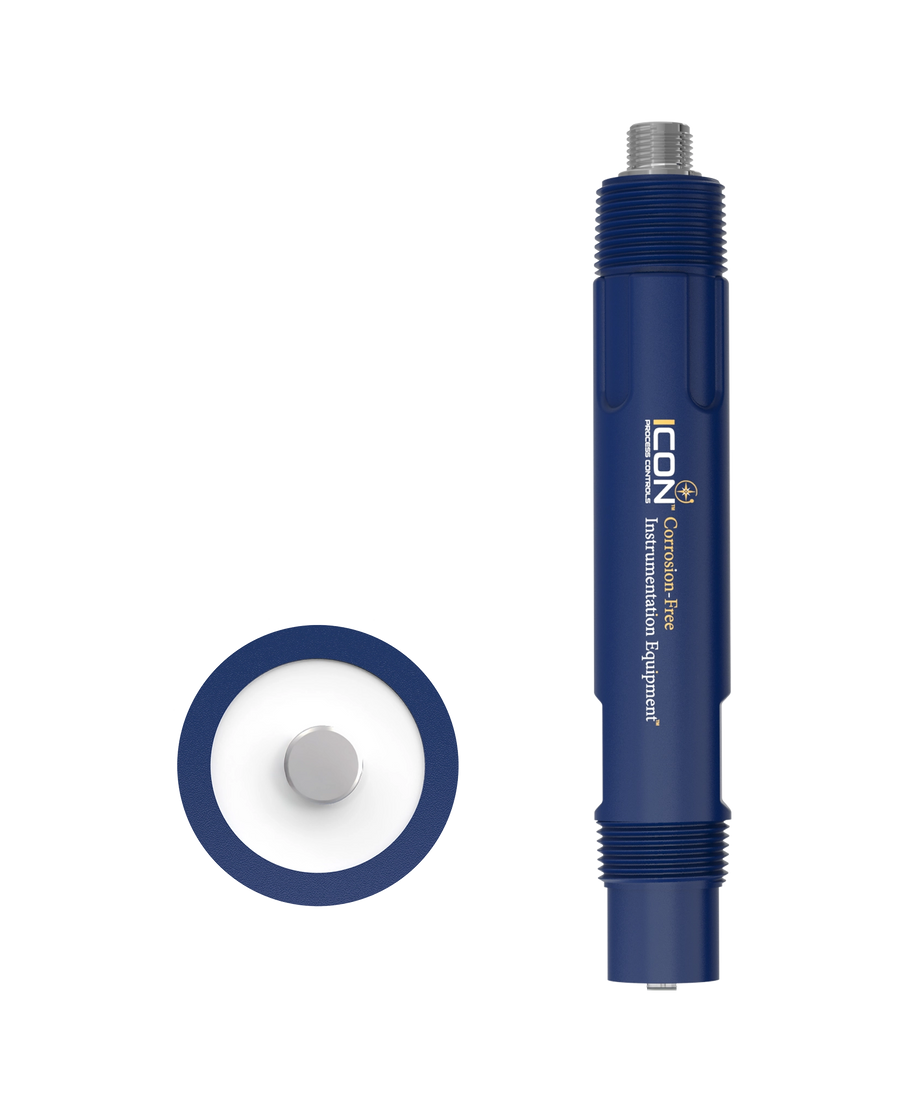

The R7C is an ORP sensor transmitter for complex process environments. A PTFE Teflon Nexus double junction and a non-porous solid KCl reference resist fouling and chemical attack, and the electrode, temperature sensor and reference are in one compact body.
- Platinum or gold electrode with Nexus solid KCl reference
- Outputs: 4-wire for ProCon controllers, 2-wire 4-20mA, 4-20mA + RS485 or IO-Link adapter
- Polypropylene body with 3/4 in NPT connection
- Temperature compensated, no preamp required
Ryton (R) body version and flying-lead connection are available on request. Contact us to order.
