Low-Flow Groundwater Sampling: Peristaltic Pump Selection Guide for Canada

Low-flow groundwater sampling draws water at 100–500 mL/min from the mid-point of the well screen until water-quality parameters stabilize — producing a more representative, lower-turbidity sample than traditional high-flow purging. A peristaltic pump is the standard tool for it in wells up to roughly 26–33 feet (8–10 m) deep. This guide covers the technique per ASTM D6771 and compares the four peristaltic pumps ERE Inc. stocks.

Table of contents

• What Is Low-Flow Groundwater Sampling?
• Why Does Low-Flow Purging Produce a More Reliable Sample?
• Which Peristaltic Pump Should You Use?
• How Do You Perform a Low-Flow Purge and Sample?
• What Are the Depth and Analyte Limits of a Peristaltic Pump?
• Frequently Asked Questions

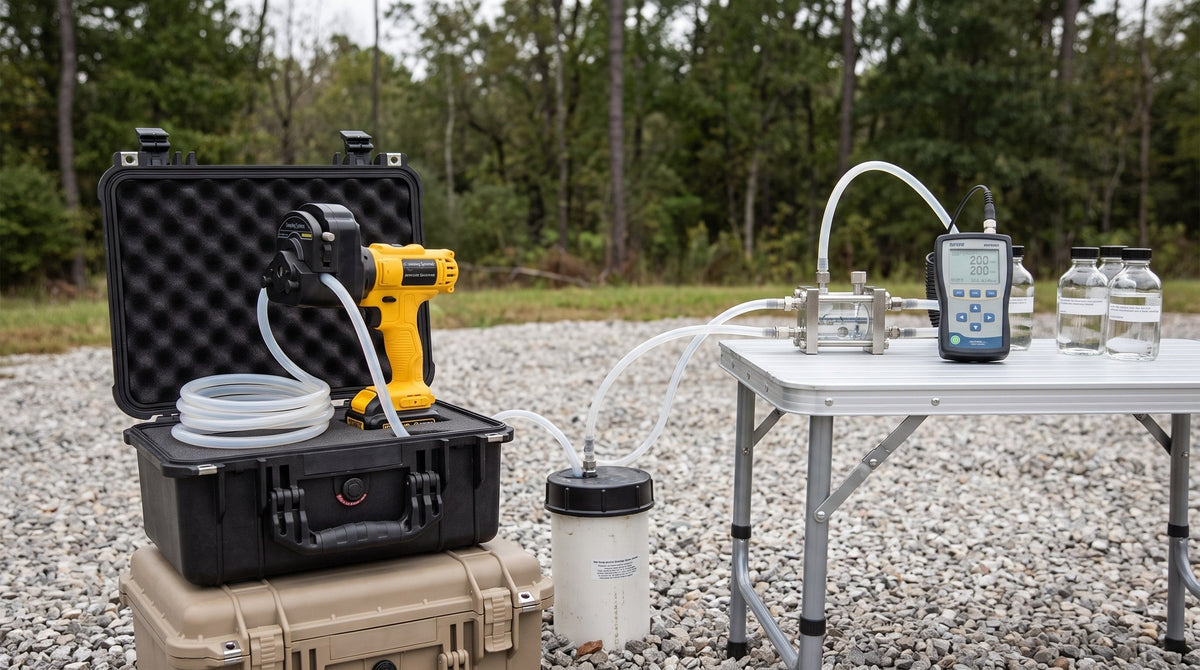

What Is Low-Flow Groundwater Sampling?

Low-flow (minimal-drawdown) groundwater sampling purges a monitoring well at a rate comparable to the aquifer's natural inflow — typically 100–500 mL/min — while positioning the pump intake at the mid-point of the well screen instead of near the bottom. The goal is to draw water past the screen without pulling the water table down or stirring up sediment that has settled in the casing, so the sample reflects actual formation water rather than stagnant casing water or resuspended solids.

The EPA's low-flow (minimal-drawdown) sampling procedure and ASTM D6771 both describe this method, and it's now the standard approach specified in most Canadian provincial site-assessment guidance for monitoring wells screened in unconsolidated aquifers.

Why Does Low-Flow Purging Produce a More Reliable Sample?

Low-flow purging keeps drawdown to a few centimetres, which means the water reaching the pump comes from the formation through the screen rather than from the stagnant column above it. Traditional purging — removing three to five casing volumes at high flow before sampling — was designed for wells with bailers or high-capacity pumps, but it disturbs the sand pack, elevates turbidity, and generates far more purge water to manage and dispose of.

Traditional Purge vs. Low-Flow: What Changes

• Turbidity: low-flow sampling typically yields turbidity low enough to sample metals without filtering; high-flow purging often requires field filtration to compensate for resuspended sediment.
• Purge volume: low-flow purges until parameters stabilize (often 1–2 well volumes or less), versus 3–5 full casing volumes for traditional purging — less investigation-derived waste (IDW) to drum and dispose of.
• Representativeness: minimal drawdown avoids mixing water from different depth intervals in the screen, which matters when contamination is stratified.

For the broader equipment picture across your sampling program — bailers, coliwasas, and other manual methods for wells or media where a peristaltic pump doesn't apply — see ERE's environmental sampling equipment guide.

Which Peristaltic Pump Should You Use?

The right pump depends on how deep you're sampling, how many wells you're running in a day, and whether you need a true sub-100 mL/min rate or just a general-purpose low-flow pump. ERE stocks four ACTIVE models from three brands, all sold through our water sampling pumps collection.

If your program is built around ASTM D6771's low-end flow target, the Solinst 410 Mk4 is the only one of the four that reaches a true 40 mL/min through its 3/8" adaptor kit — the other three are general-purpose low-flow pumps that comfortably run in the 100–500 mL/min range but don't throttle as low. For a program running several wells a day where battery life is the limiting factor, the Spectra FieldPro's 14-hour rating at low flow is the deciding spec.

How Do You Perform a Low-Flow Purge and Sample?

Set the pump intake at mid-screen depth, purge at 100–500 mL/min while monitoring field parameters every few minutes, and only collect the sample once three consecutive readings stabilize. The full sequence:

1. Position the tubing. Lower the intake tubing to the mid-point of the well screen — not the bottom of the well — to avoid disturbing sediment that has settled in the casing sump.
2. Purge at low flow. Start the pump at 100–500 mL/min (a rate that produces minimal drawdown — ideally under a few centimetres of water-level change) and record water level.
3. Monitor stabilization parameters. Check turbidity, pH, temperature, specific conductance, dissolved oxygen, and ORP every 3–5 minutes using a flow-through cell where possible. ERE's water quality meters guide covers the multiparameter instruments used for this step.
4. Confirm stabilization. Continue until three consecutive readings fall within the accepted range (commonly ±10% for turbidity, DO, and specific conductance; ±0.1 for pH; ±3% for temperature) without a continuing trend.
5. Collect the sample. Reduce flow if needed for VOC-sensitive containers, then fill sample bottles directly from the pump discharge tubing at the same low flow rate, filling the most sensitive-parameter bottles first.

What Are the Depth and Analyte Limits of a Peristaltic Pump?

A peristaltic pump suction-lifts water rather than pushing it, which caps depth at roughly 26–33 feet (8–10 m) at sea level depending on the model — beyond that, atmospheric pressure can no longer support the water column in the tubing. It's also generally not recommended for volatile organic compound (VOC) sampling, because the vacuum drawn through the tubing can strip dissolved volatiles from the sample before it reaches the bottle, biasing results low.

For wells deeper than about 33 feet, or for VOC-sensitive analyte lists, a bladder pump or dedicated submersible pump — which push water under positive pressure instead of pulling a vacuum — is the correct tool. Talk to ERE about matching pump type to your well depth and analyte list before specifying equipment for a sampling program.

ERE Inc. supplies water sampling pumps alongside the rest of a groundwater monitoring program — Solinst Leveloggers for continuous water-level data and manual water level meters for spot checks. Browse the full water sampling pumps collection for peristaltic, bladder, and submersible models.

Frequently Asked Questions

What flow rate counts as "low flow" for groundwater sampling?

Generally 100–500 mL/min, per EPA and ASTM D6771 guidance — well below the 1–3+ L/min many of the same pumps can also run at higher speed for well development or bulk purging. The Solinst 410 Mk4 is the only pump in ERE's lineup with an adaptor rated down to a true 40 mL/min for the lowest-flow protocols.

What's the maximum depth a peristaltic pump can sample from?

Roughly 26–33 feet (8–10 m) at sea level, depending on the model — a peristaltic pump works by suction lift, and atmospheric pressure limits how high it can draw a water column through the tubing. Wells deeper than that need a bladder or submersible pump instead.

Can a peristaltic pump be used for VOC sampling?

It's generally not recommended. The vacuum drawn through the tubing can strip dissolved volatile organic compounds out of the sample before it reaches the bottle, biasing VOC results low. Use a bladder pump for VOC-sensitive analyte lists, and reserve peristaltic pumps for general parameters (metals, general chemistry, nutrients).

Do you need a dedicated pump for every well?

Not necessarily. Only the tubing contacts the sample, so the drive unit/pump head can be shared across wells as long as tubing is dedicated per well or replaced between wells to prevent cross-contamination.

How is low-flow sampling different from traditional purge-and-sample?

Traditional purging removes three to five full well-casing volumes at high flow before sampling. Low-flow sampling instead purges at minimal drawdown (100–500 mL/min) from mid-screen depth until water-quality parameters stabilize — typically far less purge water, lower turbidity, and a sample that better represents actual formation water.
