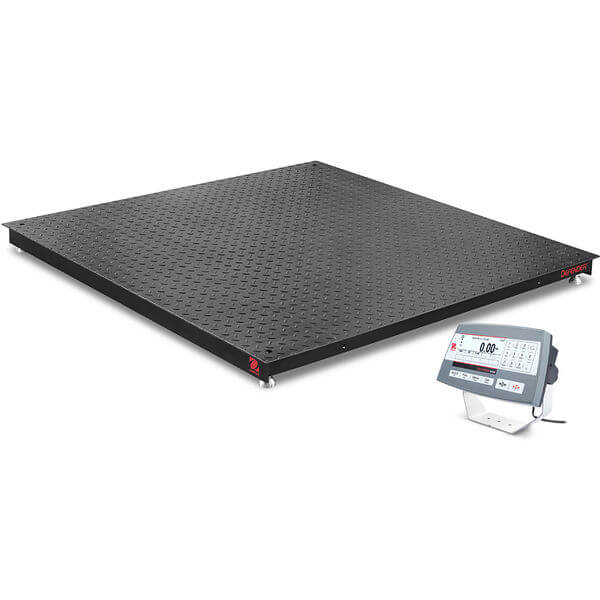

Defender 5000 Series Floor Scales meet advanced weighing needs for industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features software for Counting, Checkweighing, Accumulation, Display Hold, and other modes. Ramps and mounting plates are available.
Features
- Painted carbon steel, treaded decks with four alloy steel load cells, fixed top plate (5 mm/0.196 in. thick) with structural bracing for stiff construction.
- Platforms available in sizes of 3x3 ft and 4x4 ft and capacities from 2,500lb to 5,000lb with NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs.
- Equipped with a new TD52 series indicator featuring an easy-to-use keypad, large backlit display, and plain text on-screen prompts to guide you through operation.
Details
| Applications | Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold), Filling |
| Display | Backlit Liquid Crystal Display (LCD), 256 x 80 pixels |
| Operation | Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory) |
| Communication | Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock |
| Construction | ABS plastic or 304 stainless steel indicator, 5 mm/0.196 in. fixed top plate, black painted steel treaded platform, IP65 stainless steel junction box with side access, alloy steel load cells, two carbon steel eye bolts, painted steel ramp available |
| Design Features | Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories) |
Models
| Part Number | Model | Maximum Capacity | Readability | Readability (Certified) | Platform Size | Battery Life | Legal for Trade |
|---|---|---|---|---|---|---|---|
| OH-30837696 | I-DF52P2500B1R | 2,500 lb (1,250 kg) | 0.5 lb (0.2 kg) | 0.5 lb (0.5 kg) | 3 ft x 3 ft (914 mm x 914 mm) | 10 Hours with Rechargeable Battery | NTEP Certified |
| OH-30837698 | I-DF52P2500B1L | 2,500 lb (1,250 kg) | 0.5 lb (0.2 kg) | 0.5 lb (0.5 kg) | 4 ft x 4 ft (1,219 mm x 1,219 mm) | 10 Hours with Rechargeable Battery | NTEP Certified |
| OH-30837699 | I-DF52P5000B1L | 5,000 lb (2,500 kg) | 1 lb (0.5 kg) | 1 lb (0.5 kg) | 4 ft x 4 ft (1,219 mm x 1,219 mm) | 10 Hours with Rechargeable Battery | NTEP Certified |
| OH-30837706 | I-DF52XW2500B1R | 2,500 lb (1,250 kg) | 0.5 lb (0.2 kg) | 0.5 lb (0.5 kg) | 3 ft x 3 ft (914 mm x 914 mm) | 10 Hours with Rechargeable Battery | NTEP Certified |
| OH-30837707 | I-DF52XW2500B1L | 2,500 lb (1,250 kg) | 0.5 lb (0.2 kg) | 0.5 lb (0.5 kg) | 4 ft x 4 ft (1,219 mm x 1,219 mm) | 10 Hours with Rechargeable Battery | NTEP Certified |
| OH-30837708 | I-DF52XW5000B1L | 5,000 lb (2,500 kg) | 1 lb (0.5 kg) | 1 lb (0.5 kg) | 4 ft x 4 ft (1,219 mm x 1,219 mm) | 10 Hours with Rechargeable Battery | NTEP Certified |
