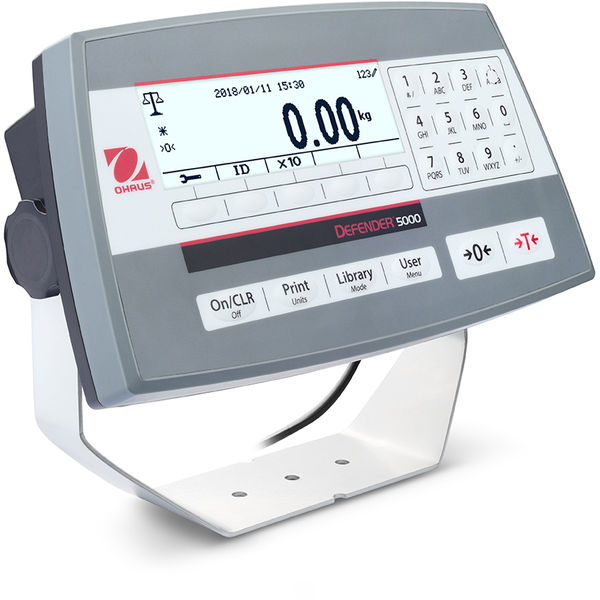

The OHAUS next generation Defender 5000 Series multifunctional indicator is ideal for use in conjunction with bench and floor scales for a multitude of applications including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options - the Defender 5000 Series is designed to handle demanding industrial and commercial applications.
Features
- See results clearly on the large backlit display. The alphanumeric keypad & function keys allow for a simplified user experience. On-screen prompts and soft keys will guide you through the operation.
- Results can be stored in the Micro SD card. Data output via built-in RS232 or optional interfaces including RS232/RS485/USB device, Ethernet & Bluetooth/WiFi. Analog Output & Discrete I/O with relays.
- Features common industrial modes & supports a 50,000 item library & 1,000 user profiles which can be downloaded/uploaded for easy set-up (with SD Card). GMP/GLP with time/date for result traceability.
Details
| Applications | Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold), Filling |
| Display | Backlit Liquid Crystal Display (LCD), 256 x 80 pixels |
| Operation | Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory) |
| Communication | Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock |
| Construction | ABS plastic housing |
| Design Features | Check weighing symbols with selectable operation and audible signal settings, menu lock switch, multiple operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim, auto-off, auto tare, screensaver |
Models
| Part Number | Model | Resolution | Resolution (Certified) | Battery Life | Outputs | Second Scale Input | Protection Rating |
|---|---|---|---|---|---|---|---|
| OH-30424078 | TD52P AM | 75,000 | 10,000 | 20 Hours with Rechargeable Battery | 4 - 20mA;2 In/4 Out digital I/O | Not Applicable | Not Applicable |
