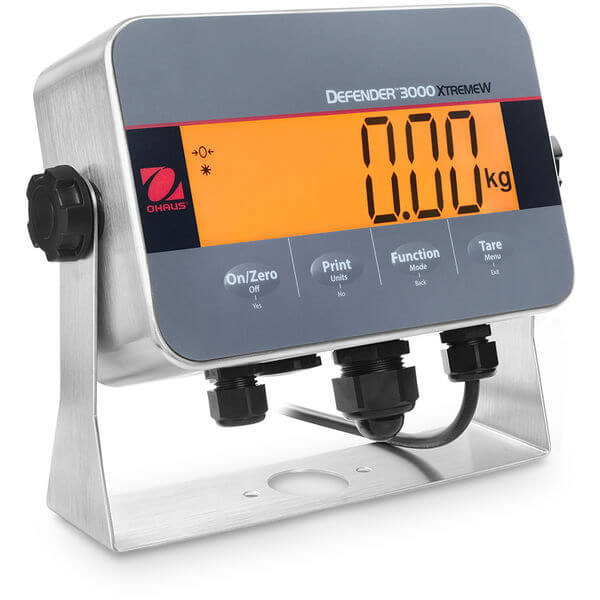

i-DT33XW is the go-to indicator when simplicity and accuracy are necessary in wet environments, or where the ability to frequently wash down is a must. The IP66 washdown stainless steel housing indicator features software for Weighing, Parts Counting, Checkweighing and Totalization, a large multicolor backlit LCD display, stainless steel mounting bracket, and a built-in bi-directional RS232C for printing or data connectivity.
Features
- Results are clearly shown using the large, bright backlit LCD display. In Checkweighing mode, the display changes color (yellow/green/red) to alert when it is within the target weight range.
- Features software for Parts Counting, Checkweighing, and Totalization. Includes RS232 with optional USB Device or Ethernet for printing or data connectivity.
- Indicator features an IP66 protected 304-stainless steel housing with bracket. Display resolution up to 1:30,000; OIML approved resolution 1:10,000; NTEP and Measurement Canada approved to 1:6,000.
Details
| Applications | Weighing, Parts Counting, Checkweighing, and Totalization |
| Display | 7 Segment LCD with multicolor backlight |
| Operation | AC Power (included), 6C (LR14) Batteries (not included), or Rechargeable Battery |
| Communication | Standard RS232 and optional USB Device or Ethernet |
| Construction | ABS housing and powder-coated steel mounting bracket |
Models
| Part Number | Model | Resolution | Resolution (Certified) | Battery Life | Second Scale Input | Protection Rating | Outputs |
|---|---|---|---|---|---|---|---|
| OH-30659311 | DT33XW | 30,000 | 6,000 | 100 Hours with Rechargeable Battery | Not Applicable | IP66 | Not Applicable |
| OH-30678638 | DT33XW | 30,000 | 6,000 | 100 Hours with Rechargeable Battery | Not Applicable | IP66 | Not Applicable |
| OH-31016438 | I-DT33XW | 30,000 | 6,000 | 100 Hours with Rechargeable Battery | Not Applicable | IP66 | — |
