Levelogger

Solinst Leveloggers are self-contained dataloggers that record water level and temperature in wells, piezometers and surface water. ERE carries the current Levelogger 5 series: the Levelogger 5 (±0.05% FS, 150,000 readings, 10-year battery at one reading per minute), the Levelogger 5 LTC that adds electrical conductivity, the lower-cost Levelogger 5 Junior and the Barologger 5 for barometric compensation. The vented LevelVent 5 and AquaVent 5 need no barometric correction, and the Rainlogger 5 records rainfall from a tipping-bucket gauge.

To read data without a laptop or a site visit, add a DataGrabber 5, the Bluetooth app interface or LevelSender 5 telemetry. ERE also services and calibrates Solinst instruments.

Levelogger FAQ

Do I need a Barologger with my Levelogger?

Yes, if you use non-vented (absolute) loggers such as the Levelogger 5, LTC or Junior: they record water pressure plus atmospheric pressure, and the Barologger 5 record is used to remove the atmospheric part. One Barologger typically covers every absolute logger within about 30 km and 300 m of elevation. Vented loggers (LevelVent 5, AquaVent 5) do not need one. See What is a Barologger?

Levelogger 5, LTC or Junior: which one?

The Levelogger 5 is the standard choice for level and temperature (±0.05% FS). The Levelogger 5 LTC adds electrical conductivity, for example to track saltwater intrusion or mine drainage. The Levelogger 5 Junior (±0.1% FS, 75,000 readings, 5-year battery) is the budget option for simpler programs. Our Levelogger 5 guide compares the models and depth ranges.

How do I get data out of a Levelogger?

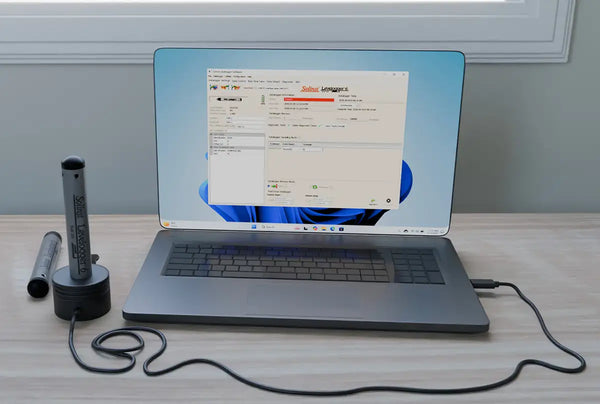

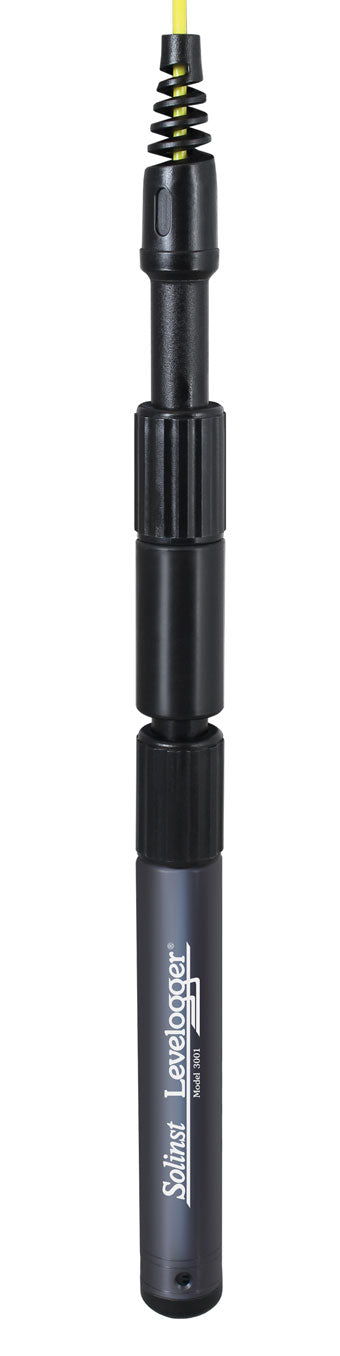

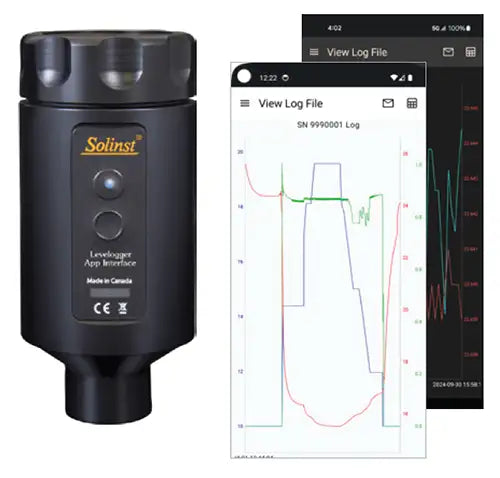

Connect it to a computer with a Desktop Reader 5 or Field Reader 5. In the field, the DataGrabber 5 copies all logged data to a USB flash drive with one button, the Levelogger 5 App Interface connects to an iOS or Android device over Bluetooth, and the Solinst Readout Unit shows instant readings. A direct read cable lets you read the logger without pulling it from the well.

Can I monitor wells remotely?

Yes. The LevelSender 5 sends data over 4G LTE cellular to email and SMS recipients. The Model 9200 RRL radio system reaches up to 30 km line of sight to a home station PC, and the Model 9100 STS connects up to four Solinst dataloggers per remote station over 4G LTE, with solar or AC power options. Our telemetry guide compares the three.

How is a Levelogger installed in a well?

It hangs on a stainless steel wireline, a Kevlar cord or a direct read cable (up to 1,500 ft). Levelogger well caps fit 2" wells (4" with an adaptor), are vented for barometric equalization, can be padlocked and hold two loggers.
