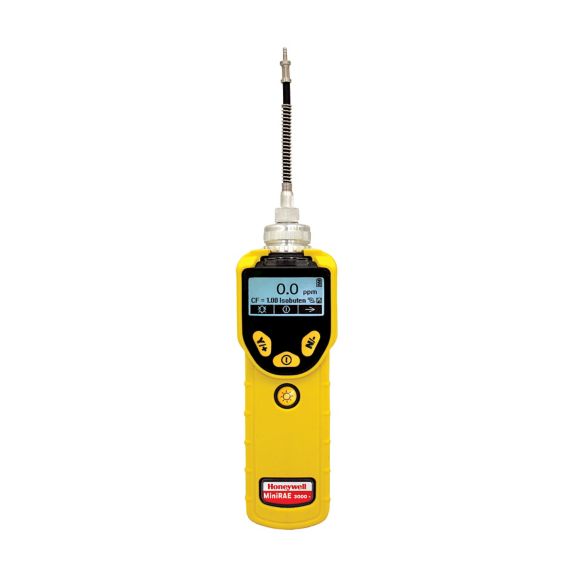

The Honeywell RAE MiniRAE 3000 (PGM-7320) and MiniRAE Lite (PGM-7300) are handheld photoionization (PID) monitors for volatile organic compounds, used for site assessment, remediation, leak detection and industrial hygiene. ERE sells them and rents them calibrated from Montreal for the length of your project.
- Buy or rent: ERE rents the MiniRAE 3000 and MiniRAE Lite calibrated and tested before shipment, with a calibration certificate
- MiniRAE 3000 (PGM-7320): measures VOCs from 0 to 15000 ppm with a 10.6 eV lamp (9.8 and 11.7 eV lamps are optional from Honeywell)
- MiniRAE Lite (PGM-7300): measures VOCs from 0 to 5000 ppm with a 10.6 eV lamp
- 3-second response time, with humidity compensation from built-in humidity and temperature sensors (3000)
- Internal pump samples from up to 30 m (100 ft) away, horizontally or vertically
- Logs six months of data at one-minute intervals; download through the charging cradle or Bluetooth Low Energy with the dedicated app
- Large backlit display, 95 dB audible alarm and flashing red LEDs, built-in flashlight
- Lamp and sensor accessible for service; 3-year warranty on the 10.6 eV lamp, 1 year on pump, battery and instrument
- Rubber boot, IP65 while running; the 3000 is IP67 with the unit off and no flexible probe
Rental: tell us your dates and site and we quote daily, weekly or monthly rates; the monitor ships calibrated with its certificate and a prepaid return label. Calibration gas, extra lamps and filters are available. Request a quote for purchase or rental pricing and availability.
Specifications
- Detection Principle
- Photoionization detector (PID), 10.6 eV lamp standard; 3000 also offers 9.8 and 11.7 eV lamps
- Range (MiniRAE 3000)
- VOCs 0 - 999.9 ppm (0.1 ppm resolution) and 1000 - 15000 ppm (1 ppm resolution)
- Range (MiniRAE Lite)
- VOCs 0 - 999.9 ppm (0.1 ppm resolution) and 1000 - 5000 ppm (1 ppm resolution)
- Response Time (T90)
- Under 3 seconds
- Sampling Pump
- Internal, included; samples from up to 30 m (100 ft) horizontally or vertically; auto shutoff on low flow
- Calibration
- Two-point or three-point (3000); two-point zero and span with AutoZero (Lite); memory for alarm limits, span values and dates
- Battery
- Rechargeable field-replaceable lithium-ion pack or alkaline battery adapter; 3000: 16 h (12 h alkaline); Lite: 12 h
- Display
- 4-line graphic display with LED backlight, 28 x 43 mm; ppm and mg/m3, STEL, TWA, peak, temperature, date and time
- Alarms
- 95 dB buzzer and flashing red LEDs; high 3 beeps per second, low 2 per second; latching with manual or automatic reset; low battery and pump stall diagnostics
- Datalogging
- 6 months at one-minute intervals
- Wireless
- Bluetooth Low Energy up to 5 m (15 ft) with the app; MiniRAE 3000 also supports mesh radio options (see data sheet)
- Ingress Protection
- IP65 running; MiniRAE 3000 IP67 off and without flexible probe
- Certifications (3000)
- CSA intrinsically safe for Class I, Div 1, Groups A, B, C, D (US and Canada); ATEX II 2G EEx ia IIC T4
- Operating Conditions
- -20 to 50 °C; 0 to 95 % RH non-condensing
- Size and Weight
- 25.5 x 7.6 x 6.4 cm (10 x 3.0 x 2.5 in); 738 g (26 oz)
- Warranty
- 3 years on the 10.6 eV lamp; 1 year on pump, battery, sensor and instrument
Documents
Calibration and repair
Send it to our Montreal service team. We evaluate the instrument and send a detailed quote before any work starts.
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
Can ERE calibrate or repair it?
Yes. Our Montréal service shop calibrates and repairs it in-house. Request service
What warranty does it carry?
The manufacturer's warranty applies. The exact terms are in the warranty document. Read the warranty
