Government of QuébecOverview
The liquid flows into the removable bottles at each level. The sampler comes as standard in 3 convenient lengths.
Operation
1. Push the sampler into the liquid
2. Pull the hand chain which will lift the lid off the bottles
3. Remove the sampler and then unscrew the bottles from each location
Compare models
Your selection is highlighted. Select a row to switch.| Part Number | Model | Length | Volume | Number of Sampling Points | Material |
| SS-5045A-1000 | Multi Dipper 2 | 1000 | 250 ml | 3 | 316L stainless steel |
| SS-5045A-1500 | Multi Dipper 2 | 1500 | 250 ml | 3 | 316L stainless steel |
| SS-5045A-2000 | Multi Dipper 2 | 2000 | 250 ml | 3 | 316L stainless steel |
| SS-8165A-250 | Square Bottle | - | 250 ml | - | HDPE |
| SS-8165A-500 | Square Bottle | - | 500 ml | - | HDPE |
Documents
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
Related equipment we stock

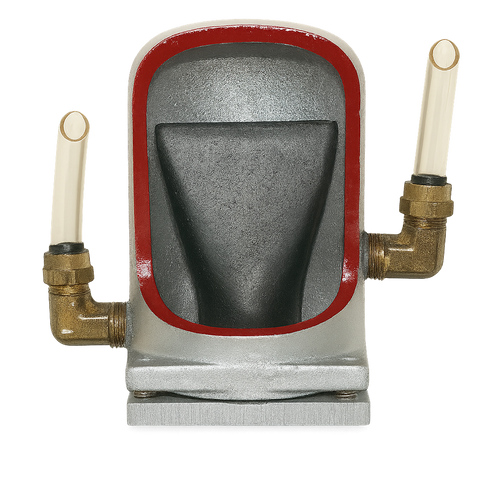

Duckbill™ Automatic Composite Sampling System
Body Dia: 73 mm (2-7/8") | Height: 127 mm (5") | Sample Size: 75 ml/shot (std) | Lift: >80 ft vertical, >90 ft horizontal | Materials: Aluminum / 316 SS / PVC

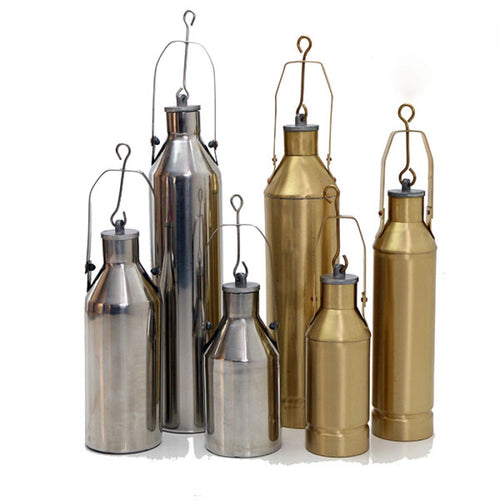

Dipping Bottle
304 SS or Brass body | Aluminum stopper | 300–1000ml volumes | 62–77mm diameter | 153–325mm height

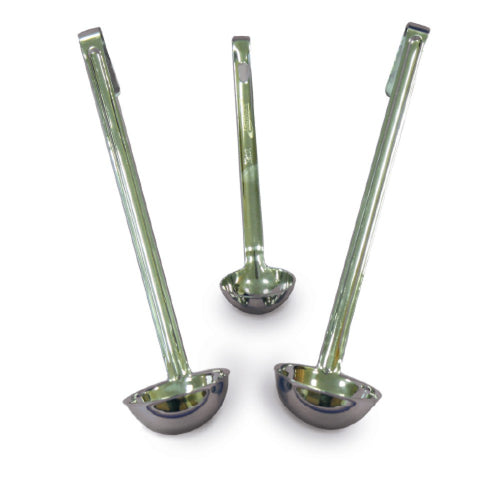

Stainless Ladle
