The sub sampler weighs a heavy 3kg which is ideal when dropping it into thick materials. It also means it drops faster when it is going deep into liquid.
After sampling the bottle can be easily removed using the patented click system
When sampling hazardous materials (Hazard Categories IIA and IIB) make sure you use conductive hand reels and lines. The sampler is made from spark suppressant brass and glass.
Operation
1. Lower Sub Sampler to the required depth.
2. Pull up sharply on the lowering cable to pull the stopper out of the bottle
3. Wait a few seconds for the liquid to flow into the bottle
4. Pull up the Sub Sampler and retrieve the sample
| Part Number | Volume | Height | Diameter | Material |
| SS-5073A-1000 | 1000ml | 300mm | 125mm | Nickel Plated Brass & Glass |
Documents
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
Related equipment we stock

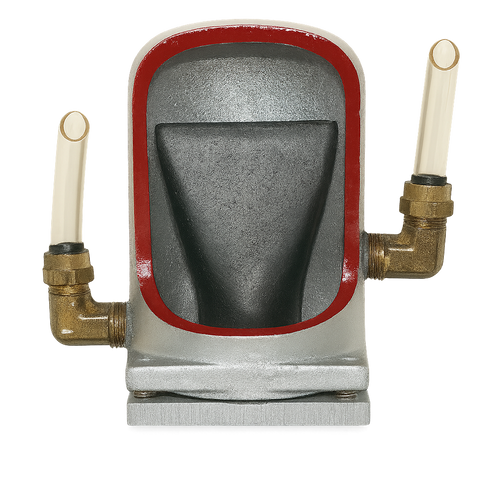

Duckbill™ Automatic Composite Sampling System
Body Dia: 73 mm (2-7/8") | Height: 127 mm (5") | Sample Size: 75 ml/shot (std) | Lift: >80 ft vertical, >90 ft horizontal | Materials: Aluminum / 316 SS / PVC

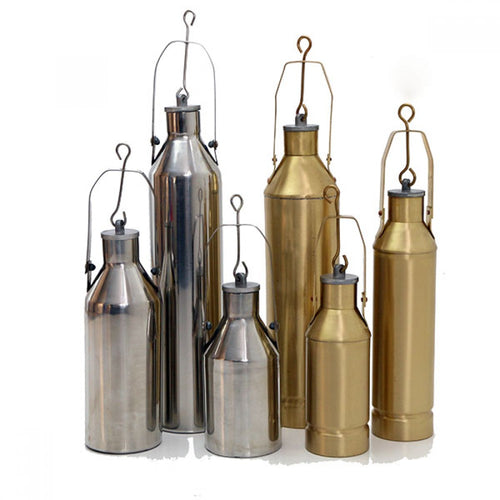

Dipping Bottle
304 SS or Brass body | Aluminum stopper | 300–1000ml volumes | 62–77mm diameter | 153–325mm height

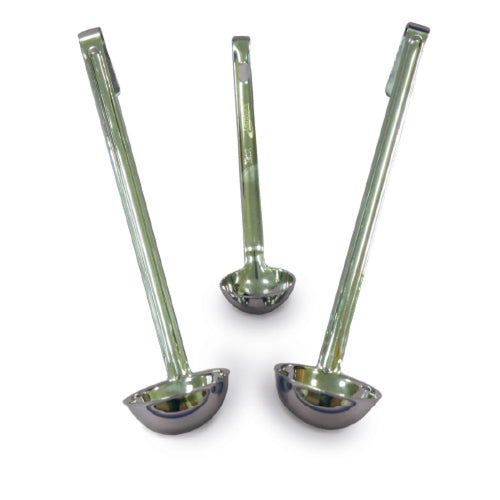

Stainless Ladle
