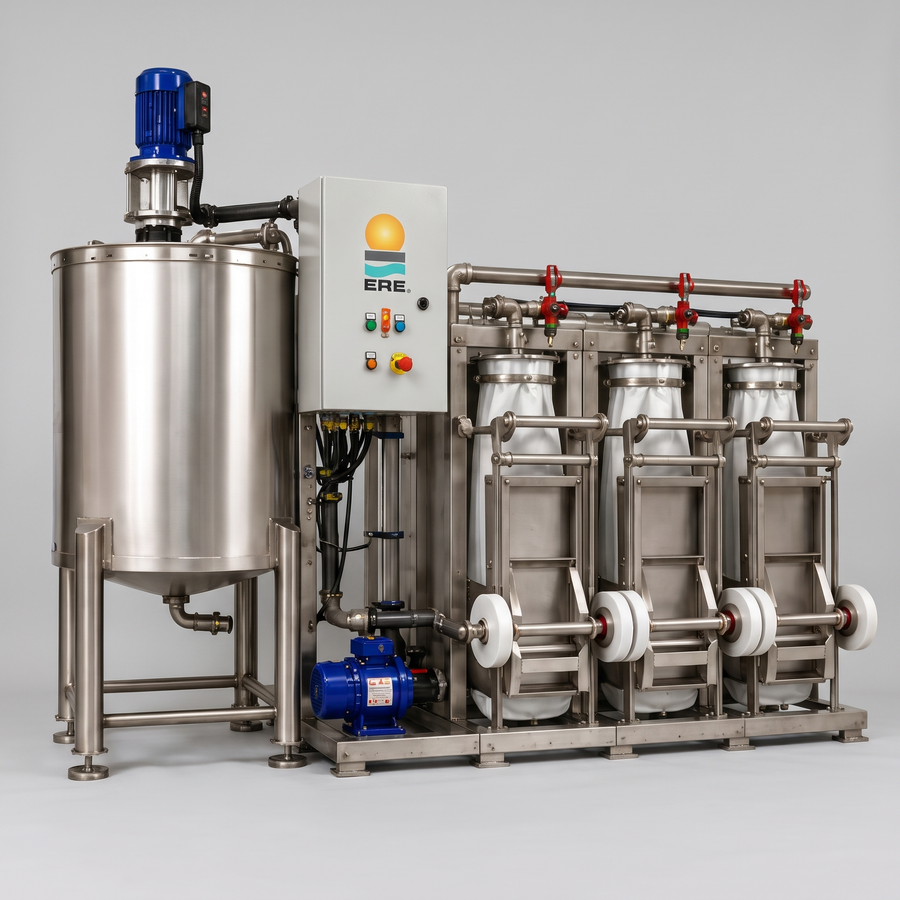

The MicroFloc™ ER-93-500 treats wastewater in batches with dry flocculant, a mixer and a gravity bag dewatering unit. Flocculant goes into the 500 L stainless steel mixing tank by scoop, the mixer builds the floc, and a low-shear pump transfers the batch to one, two or three filter bags that drain to about 15 % dry solids: you roll out a cake, not a slurry. Robust, simple to operate and modular, it is designed and assembled in Québec and runs on 230 V single-phase power.
- No chemical feed system: dry flocculant goes in by scoop, so there is nothing to pump, dilute or calibrate
- A cake, not a slurry: bags drain by gravity to about 15 % dry solids; roll the bag out on its trolley and tie it off
- No consumable paper: one filter bag per fill, with no rolls, no paper waste and no drive to jam
- Simple electrical connection: 230 V / 1 Ph / 60 Hz, 30 A, with no three-phase supply and no compressed air
- Three sizes on one platform: 1, 2 or 3 bags for 12, 24 or 36 kg of dry solids per day
- 500 L mixing tank in 3 mm 304 stainless steel with a 1.5 kW paddle mixer (CSA motor) and a conical bottom drain
- Control panel with mixer VFD and adjustable timers, low-shear progressive cavity transfer pump and painted carbon-steel skid
- Paints and coatings: wash water, booth water and gun cleaning
- Machining and grinding: fines, swarf and water-soluble coolants
- Equipment and floor washing: wash water with silt and oil
- Construction and remediation: dewatering fines, drilling mud and excavation water
- Pilot and laboratory work: test the flocculant dose before scaling up
Send your flow, solids load and lab results with a quote request and we will size the system.
Specifications
- Filter bags
- 1B: 1 / 2B: 2 / 3B: 3
- Dry solids capacity
- 1B: 12 kg/day (26.5 lb/day) / 2B: 24 kg/day (52.9 lb/day) / 3B: 36 kg/day (79.4 lb/day)
- Skid footprint
- 1B: 2550 x 1220 mm (100.4 x 48.0 in.) / 2B: 3150 x 1220 mm (124.0 x 48.0 in.) / 3B: 3750 x 1220 mm (147.6 x 48.0 in.)
- Bag structure (ERE-built)
- 1B: 750 x 840 mm (29.5 x 33.1 in.) / 2B: 1350 x 840 mm (53.1 x 33.1 in.) / 3B: 1950 x 840 mm (76.8 x 33.1 in.)
- Bag collar / inlet height
- 1850 mm (72.8 in.) above skid deck
- Filtrate outlet height
- 570 mm (22.4 in.) above skid deck
- Overall height
- 2300 mm (90.6 in.) standard; 2100 mm (82.7 in.) low build
- Height to mixer motor
- Approx. 2050 mm (80.7 in.)
- Connections
- Sludge inlet G 1 1/4 in.; filtrate Ø50 mm (2.0 in.) PP; drain G 1/2 in. (2B and 3B: one inlet per bag from a common header)
- Dry weight (estimated)
- 1B: approx. 620 kg (1,370 lb) / 2B: approx. 760 kg (1,680 lb) / 3B: approx. 900 kg (1,980 lb)
- Operating weight
- 1B: approx. 1,220 kg (2,690 lb) / 2B: approx. 1,450 kg (3,200 lb) / 3B: approx. 1,670 kg (3,680 lb)
- Power
- 230 V / 1 Ph / 60 Hz, 30 A; no compressed air required
- Mixing tank
- 500 L, 304 stainless steel 3 mm, satin polish inside and out, flat open lid (no hinge), flat leg plates with anchor holes
- Tank drain
- Conical bottom centre drain port with 2 in. Tri-Clamp butterfly valve
- Mixer
- 1.5 kW side-bracket 3-leaf paddle mixer, CSA motor
- Transfer pump
- Low-shear progressive cavity pump
- Controls
- Control panel with mixer VFD and adjustable timers
- Flocculant dosing
- Manual dry flocculant addition
- Construction
- ERE-built stainless steel bag filter units on a painted carbon-steel structural skid
- Included
- Bag removal trolley
- Origin
- Designed and assembled in Québec
Documents
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
What warranty does it carry?
The manufacturer's warranty applies. The exact terms are in the warranty document. Read the warranty
Related equipment we stock

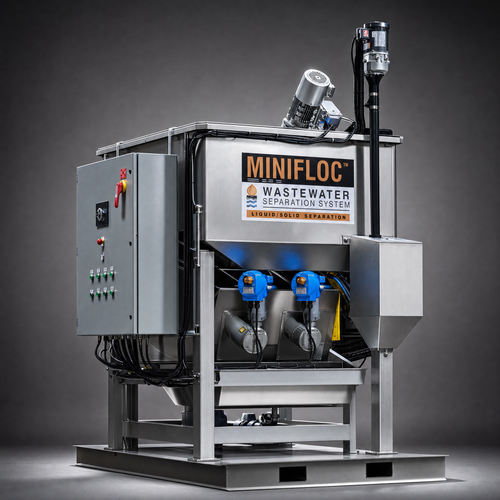

MiniFloc™ Wastewater Separation System
