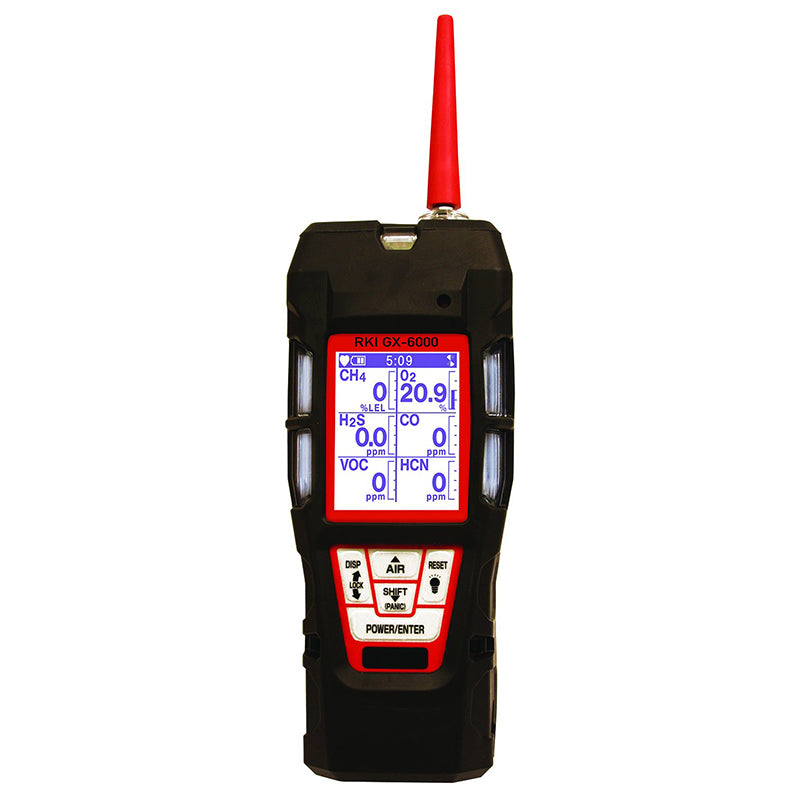

The GX-6000 simultaneously monitors up to 6-gases. In addition to the standard 4 confined space gases which include LEL, O2, CO, & H2S, the GX-6000 has 2 additional smart channels that accept PID, IR or super toxic sensors. It can operate as a single gas PID unit or a multifunctional tool utilizing all 6 channels. A benzene-specific version is also available using a pre-filter tube for detecting low levels of benzene.
Features
• Monitors up to 6 gases
• Two smart sensor slots auto recognize PID, IR and super toxic sensors
• Six operating modes: normal, leak check, benzene select mode, inert, snap log and bar hole
• Four PID options: 10.6 (2 ranges) eV, 10.0 eV, and 11.7 eV lamps
• PID library of over 600 VOCs
• Benzene specific version
• PPM leak check mode
• LEL sensor protection mode
• Man-down alarm
• Panic alarm, auto display rotation
• Peak-bar display
• LED Light source
• Internal sample pump
• Light weight, small, rugged IP-67 design
• Li-Ion or alkaline battery packs (interchangeable)
• Field replaceable sensors, batteries, filters and pump
Applications
• Confined space entry
• Hazmat response teams
• Arson investigation
• Remediation site
• Perimeter monitoring
• Leak detection
• Landfill monitoring
• Winery tank entry
Kit includes
• GX-6000 monitor
• Probe attached with 3 ft Teflon lined hose
• Tapper nozzle
• Belt clip
• Hand strap
• Rubber boot
• Hydrophobic & dust filter
• 115/220 VAC adapter for charger
• Li-Ion battery pack & 100-240 VAC charger
• Quick reference card
• Low Cost of Ownership
• RKI instruments are designed to deliver reliable performance while minimizing long-term costs.
Their low cost of ownership comes from a combination of durability, efficiency, and ease of maintenance.
• Long sensor lifespan
• Sensors 3 year warranty
• Perform Better than the Competition
• Minimal maintenance requirements
• User friendly replaceable parts
• Energy efficiency
• Durable construction
• Reduced calibration costs
*Other configurations are also available
| Model | GX-6000 | |||||||||||||||
| Gas Detected | 600 VOC's | Benzene Specific | 300 VOC's | High Voltage Lamp | Oxygen (O2) | Carbon Monoxide (CO) | Hydrogen Sulfide (H2S) | Ammonia (NH3) | Chlorine (CL2) | Hydrogen Cyanide (HCN) | Nitrogen Dioxide (NO2) | Sulfur Dioxide (SO2) | Carbon Dioxide (CO2) | Methane (CH4) | Hydrocarbons | Hydrocarbons (CH4, std) |
| Detection Principal | PID Sensors | Galvanic Cell | Electrochemical Cell | Toxics (Electrochemical Sensors) | Infrared (IR Sensors) | Catalytic Combustion | ||||||||||
| Detection Range | 0 - 50,000 ppb | 0.1 -50 ppm | 0 - 100 ppm | 0 - 1000 ppm | 0 - 40.0% Vol. | 0 - 500 ppm | 0 - 100.0 ppm | 0 - 400.0 ppm | 0 - 10.00 ppm | 0 - 15.0 ppm | 0 - 20.00 ppm | 0 - 99.90 ppm | 0 - 10,000 ppm | 0 - 100% LEL 0 - 100% Vol. | 0 - 100% LEL 0 - 30% Vol. | 0 - 100% LEL |
| 0 - 6000 ppm | 0 - 10.00% Vol. | |||||||||||||||
| Accuracy | ± 10% of reading, ± 1 digit | ± 0.5% O2 | ± 5% of reading or ± 5 ppm CO | ± 5% of reading or ± 2 ppm H2S | ± 10% of reading or ± 5% of full scale | ± 5% of reading or ± 2% of full scale | ± 5% of reading or ± 2% LEL | |||||||||
| Sampling Method | Sample draw pump, flow rate 0.45 LPM, 50 foot sample range | |||||||||||||||
Power Source (Configurable) | Li-Ion or Alkaline | |||||||||||||||
| Operating Temp. & Humidity | -20°C ~ +50°C (-4°F to 122°F ), 0- 95% RH non condensing | |||||||||||||||
| Safety Rating | Explosion proof: IECEx , ATEX , TIIS , cCSAus | |||||||||||||||
| Part Number | Description | Calibration Equipment |
| RK-72-6ABX-C | GX-6000 For LEL/ O2/H2S/CO/VOCs (0-6,000 ppm PID) With Li-Ion Battery Pack & 100-240 VAC Charger | • NLB-J1055100PA • NLB-Z105325PM51 • NLB-8C10 • RK-06-1248RK-03 • NLB-505 |
| Accessories & Calibration Equipment | |
| Part Number | Description |
| RK-81-SDM6000-01 | SDM-6000 Calibration Station For GX-6000 With Particle Filter, Connection Brackets, SD Card, USB SD Card Reader, Ethernet Cable, USB Cable For PC, 10’ Exhaust Tubing & Single Unit AC Adapter |
| NLB-Z105325PM51 | Calibration Gas 25 PPM H2S / 50 PPM CO / 2.5% CH4 (50% LEL) / 12% O2 In N2, 58 Liter Aluminum Cylinder With CGA C-10 |
| NLB-J105100PA | Calibration Gas 100 PPM Isobutylene In Air, 103 Liter Aluminum Cylinder With CGA C-10 |
| NLB-8C10 | Demand Flow Regulator For Cylinders With CGA C-10 |
| RK-06-1248RK-03 | 3/16" O.D. x 5/16" I.D. Polyurethane Calibration Tubing, 3 ft |
| NLB-505 | Case For 58 / 103 / 116 Liter Aluminum Cylinders, Holds 2 Cylinders |
| PC-920-1001 | Black NANUK™ Case 920 With Cubed Foam (Other Colors Available Upon Request) |
Related equipment we stock

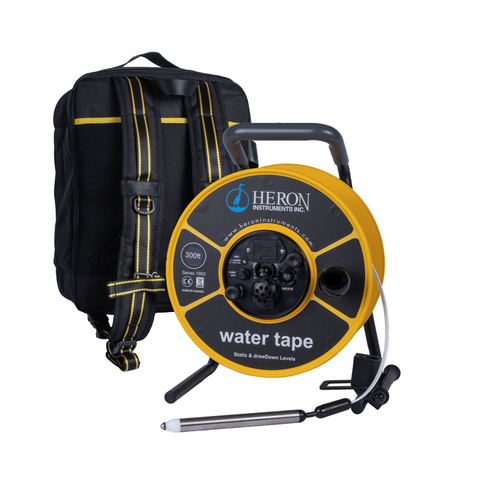

Water Tape (Series 1902) Version 2 Economical Water Level Meter
• 5/8" water level probe (IP68) with holder | Includes: padded storage/carrying case

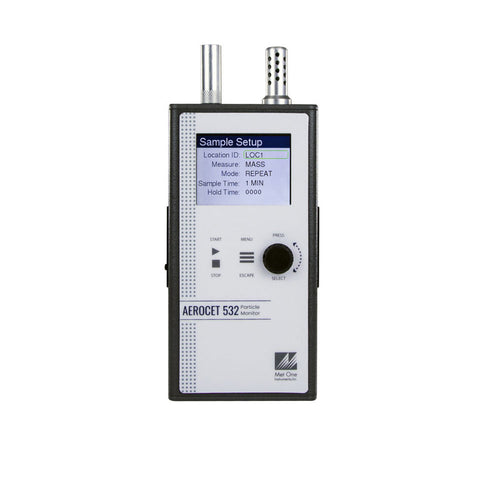

Aerocet 532 Handheld Particle Monitor
Includes: | • AC Adapter/Battery Charger

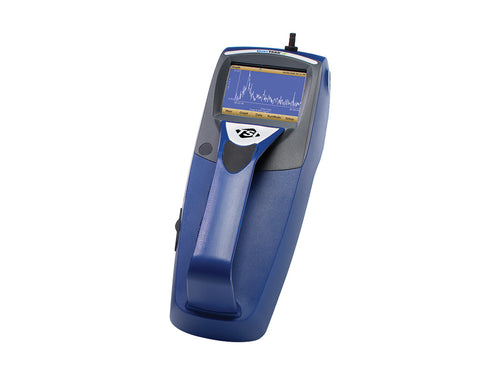

DustTrak™ II Aerosol Monitor 8532
