Samplers for liquids in tanks, drums, rivers and process lines: stainless, PTFE and polypropylene dippers, telescopic pole samplers, weighted depth samplers and the Bacon Bomb, coliwasas and drum thieves, grab sample kits, and single-use SteriWare thieves and ladles.
Body Dia: 73 mm (2-7/8") | Height: 127 mm (5") | Sample Size: 75 ml/shot (std) | Lift: >80 ft vertical, >90 ft horizontal | Materials: Aluminum / 316 SS / PVC

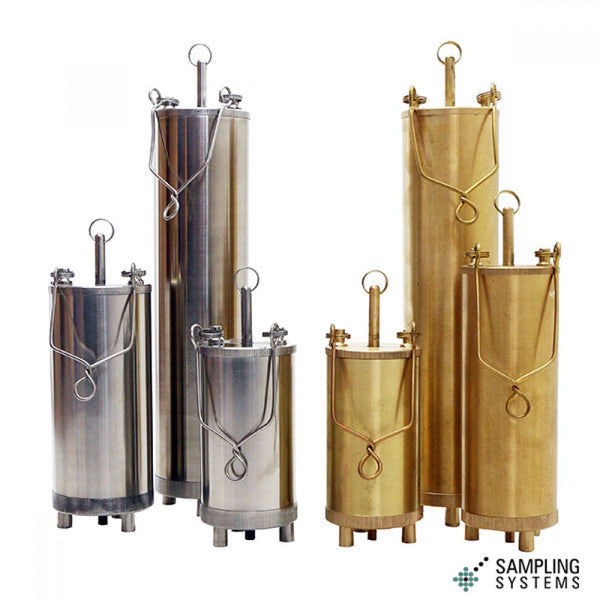

304 SS or Brass body | Aluminum stopper | 300–1000ml volumes | 62–77mm diameter | 153–325mm height
Handle Length: 215 mm (8.5'') | Bowl Diameter: 62 mm (2.4'')
Length: 500 mm (19.7'') | Outer Diameter: 21 mm (0.8 | Sampling Hole: 10 mm (0.4'') | Volume: 100 ml
Length: 450 mm (17.7'') | Diameter: 21 mm (0.8'') | Internal Diameter: 17 mm (0.7'') | Maximum Sample Volume: 80 ml
HDPE USP Class VI | 50 ml | 48 mm diameter | Sterile (SAL 10-6) | 25 units/box
Length: 453 mm (17.8'') | Diameter Of Cup: 43 mm (1.7'') | 40/Box
Length: 260 mm (10.2'') | Diameter Of Cup: 48 mm (1.9'') | 40/Box
Length: 260 mm (10.2'') | Diameter Of Cup: 48 mm (1.9'') | 40/Box
Length: 1000 mm (39.4'') | Diameter: 12 mm (0.5'') | Internal Diameter: 9 mm (0.4'') | Maximum Sample Volume: 60 ml
Length: 500 mm (19.7") | Outer Diameter: 21 mm (0.8") | Sampling Hole: 1.5 mm (0.06'') | Volume: 100 ml
Length: 450 mm (17.7'') | Capacity: 80 ml | 20/Box

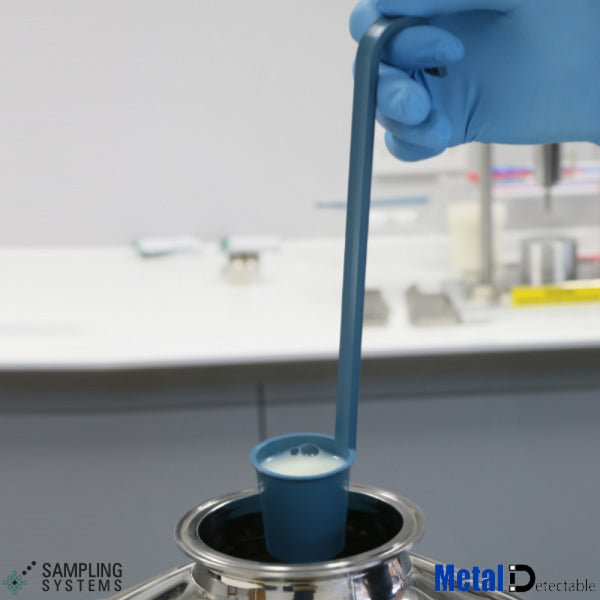

50 ml | 48 mm cup diameter | Blue Polypropylene | Non-Sterile | FDA / EC 1935/2004 / EU 10/2011 conforming PP
Length: 600 mm (23.6'') | Diameter: 25 mm (1'')
10 ml volume | 150 mm length | 25 mm cup diameter | PTFE construction | Heat resistant to 280°C (400°F)
PP construction | 250–1000 ml capacity | 1130–1190 mm length | 79–117 mm diameter | Surface liquid sampling
Handle Length: 600 mm (23.6'') – Removable | Cup Diameter: 55 mm (2.2'')
240 ml Coliwasa, Teflon®, 1" x 2' Long, 1 Unit
Length: 600 mm (23.6'') | Diameter: 25 mm (1'') | Maximum Volume: 150 ml
304 SS or Brass | 70mm diameter | 300ml / 500ml / 1000ml | 125–303mm height | Two-method sampling (bottom-open or mid-level control line)
Aluminum & Plastic or 316L SS & PTFE | Rod lengths 750mm–6000mm (telescopic) | Beaker volumes 500–2000ml | Polypropylene or 316L SS beakers | Interchangeable angular, pendulum, bottle, and net attachments
Telescopic aluminum handle | Polypropylene sampling head | 1000 mL wide-mouth jar capacity | 4 lengths: 4'–8', 5'–12', 7'–18', 7'–24' | Optional displacement plunger (1\" headspace)

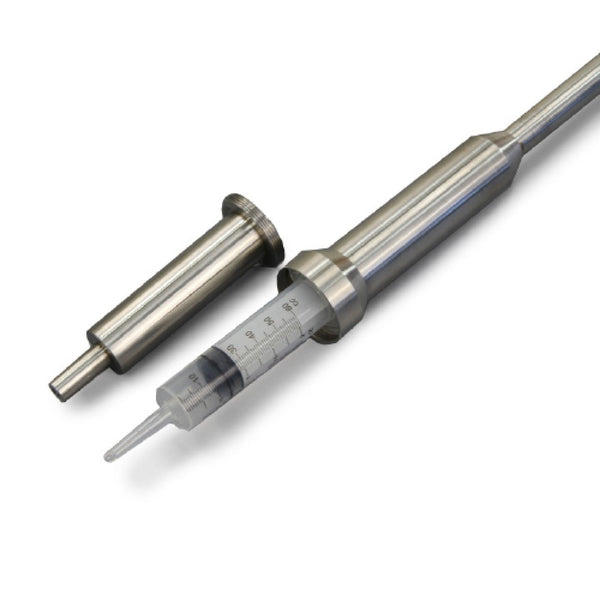

316L stainless steel | 5 / 30 / 60 ml sample volumes | Lengths: 600 / 1200 / 1800 mm | Medical-grade replaceable syringe (PP/PE) | Patented unit-dose design

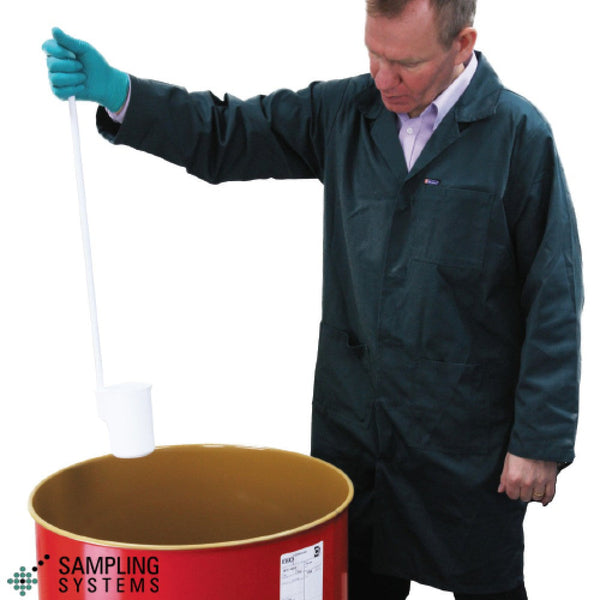

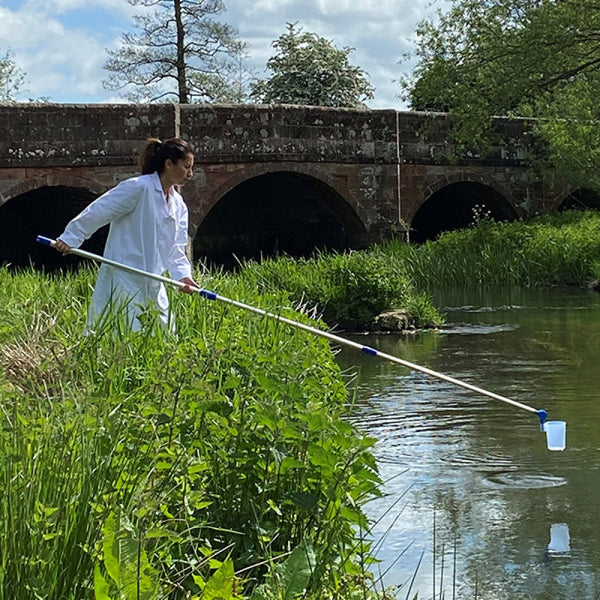

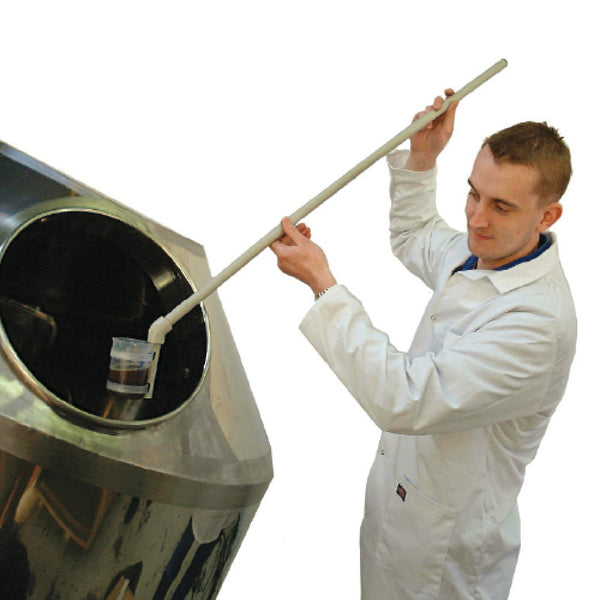

Samplers for liquids in tanks, drums, rivers and process lines, grouped by where the sample comes from. At the surface: dippers in 316L stainless, PTFE or PP (Stainless Dipper, PTFE Dipper, Chemical Dipper), long-handled HDPE dippers to 12 ft, and the TeleScoop on poles up to 6 m. From a set depth: the weighted Sub Sampler, the Sub Sampler Pro, the Bacon Bomb, the Deep Water Sampler and the Bottle Sampler. Through the depth of a drum: coliwasas, drum thieves and the three-level Multi Dipper 2. From streams and outfalls: the Grab Sample Kit, Swing Sampler and In Stream Grab Sampler. Single-use SteriWare thieves and ladles are here too.
A coliwasa. Lowered open, it fills at the same level as the liquid around it; closing its valve then holds a full vertical column with every layer in proportion. See our coliwasa guide.
Use a sampler that opens only where you want it. The Sub Sampler Pro and the Bacon Bomb open when they touch bottom, or at mid-height with a control line or pull cord, and close as they are lifted. For hazardous liquids in categories IIA and IIB, the spark-suppressant brass and glass Sub Sampler is used with conductive hand reels and lines.
Glass and PTFE resist aggressive solvents and acids; HDPE and polypropylene suit aqueous and mild liquids; 316L stainless is robust and reusable. Compatibility is a safety decision, because the wrong material can fail mid-sample. Our drum and tank sampling guide matches samplers to liquids.
With a bottle holder on a pole, so you are not leaning over the water. The Grab Sample Kit has a telescopic pole (6 to 12 ft or 8 to 16 ft), a Purcy clamp, eight 1 L Nalgene bottles and a carrying case; the Swing Sampler's head swings to take samples at angles up to 90°.
