Reusable Sampling Systems samplers for free-flowing powders and granules: slot, pocket, sleeve and point samplers in 316L stainless or aluminum, the Grain Spear, sack samplers, unit-dose samplers down to 0.01 ml, and single-use SteriWare thieves and probes, sterile or not.
HDPE | 325mm length | 33mm or 45mm diameter | 100/box | Food-grade, FDA-compliant, BSE/TSE free
Overall Length: 420 mm (16.5'') | Diameter Of Outer Tube: 26 mm (1'') | Diameter Of Inner Blade: 22 mm (0.9'') | Sample Volume: 50 ml
Length: 620 mm (24.4'') | Diameter: 25 mm (1'') | Sample Volume: 50 ml | 20/Box
Overall Length: 233 mm (9.2'') | Blade Length: 150 mm (5.9") | Blade Width: 20 mm (0.8'')
Overall Length: 300 mm (11.8'') | Blade Length: 200 mm (7.9'') | Diameter: 25 mm (1'')
Length: 300 mm (11.8'') | Diameter: 25 mm (1'') | No. Of Sampling Points: 1
Length: 1000 mm (39.4'') | Diameter: 40 mm (1.6'') | No. Of Inserts Required: 3
1 x SS-1500A-01 T-Bar Handle, 600 mm (23.6’’) | 4 x SS-1500A-02 Handle Extension Rods, 600 mm (23.6’’) | 10 x Sampling Tips (0.1 ml To 2.5 ml) | 1 x SS-1500C-01 High Quality Lockable Sampler Case
Overall Length: 500 mm (19.7") | Overall Diameter: 21 mm (0.8") | 20/Box

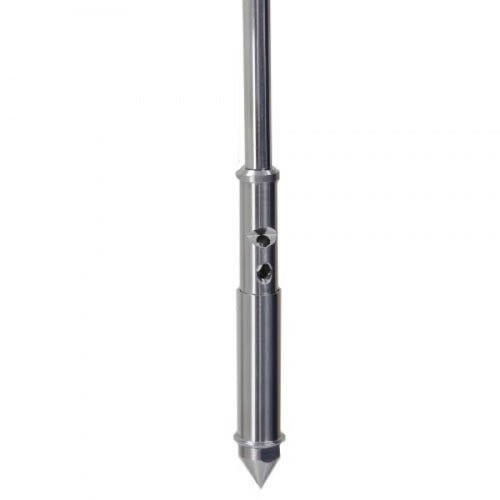

Maximum Sampling Depth: 350 mm (13.8'') | Diameter: 5 mm (0.2'') | Sample Volume: Variable - Up To 0.1 ml
Maximum Sampling Depth: 350 mm (13.8'') | Diameter: 5 mm (0.2'') | Sample Volume: Variable Between 0.01 & 0.1 ml
Length: 1000 mm (39.4") | Diameter: 40 mm (1.6'') | Maximum Sample Volume: 150 ml
Overall Length: 155 mm (6.1'') | Outer Scoop Diameter: 10 mm (0.4'') | Inner Scoop Diameter: 7 mm (0.3'') | Scoop Depth: 25 mm (1'')
Length: 400 mm (15.7'') | Diameter: 25 mm (1'')
Length: 400 mm (15.7'') | Diameter: 25 mm (1'') | 100/Box
Length: 400 mm (15.7'') | Diameter: 40 mm (1.6'')
Length: 1000 mm (39.4'') | Diameter: 25 mm (1'') | Volume: 20 ml
Material Of Outer Tube: 316L Stainless Steel | Material Of Inner Rod: PTFE | Length: 600 mm (23.6'') | Diameter: 25 mm (1'')
Length: 900 mm (35.4'') | Diameter: 50 mm (2'') | Maximum Sample Volume: 880 ml
Length: 300 mm (11.8'') | Diameter: 25 mm (1'') | Maximum Sample Volume: 45 ml
Overall Length: 985 mm | Max. Sampling Depth: 730 mm | Number of Slots: 4 | Slot Length: 122 mm
Handle Length: 2000 mm (78.7'') | Diameter: 60 mm (2.4'') | Sample Volume: 100 ml

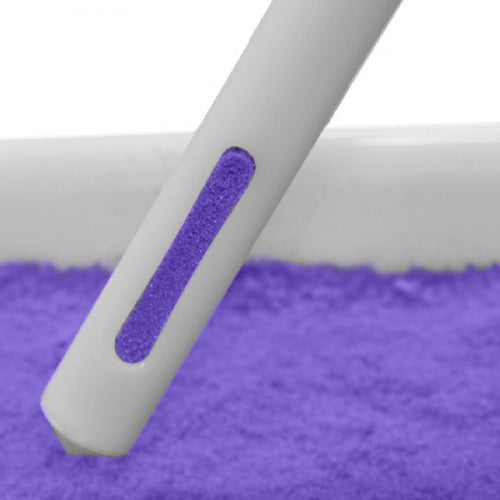

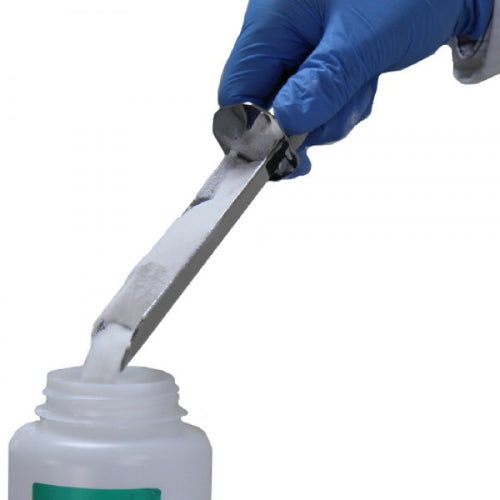

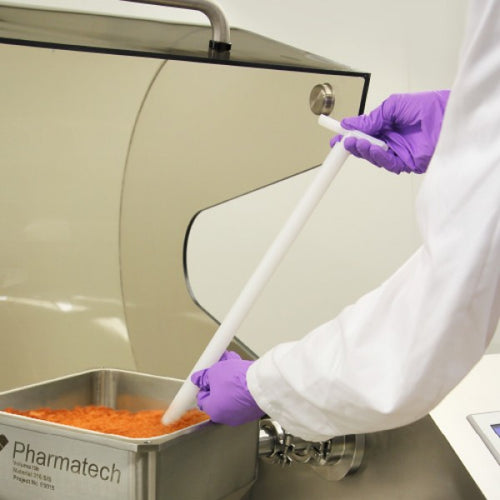

A free-flowing powder runs into the sampler on its own: push it in closed, open it at depth, let product enter, close it and withdraw. For an all-layer sample: the Multilevel Slot Sampler in 316L stainless, the Aluminum Slot Sampler (up to 880 ml), the Grain Spear, whose spiral pockets fill from the bottom first, and pocket samplers. For one point: the Mono Pocket Sampler, the 100 ml Point Sampler and the Sleeve Sampler, with 100 to 200 ml chambers and extension rods for depths up to 6 m. For sacks: the Sack Master and Jumbo Sack Sampler. Single-use SteriWare thieves and probes are here too.

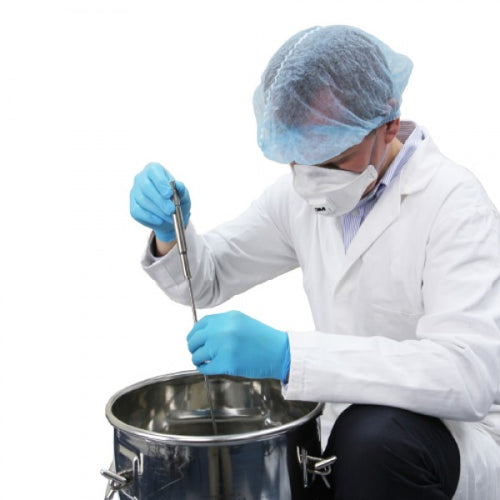

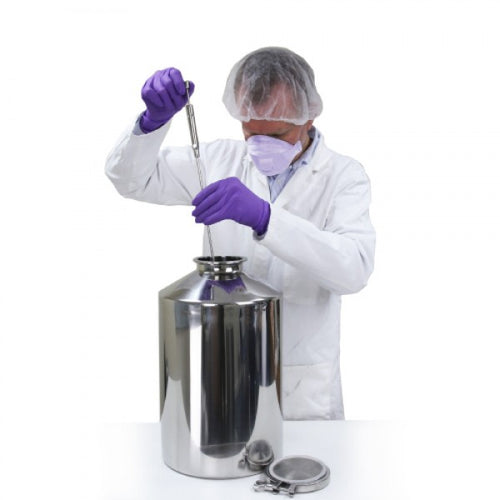

A multilevel sampler collects product from several depths in one pass, for an all-layer sample of a drum, sack or bin. A single-point sampler takes product from one chosen depth, to check a given level or to take a unit dose.

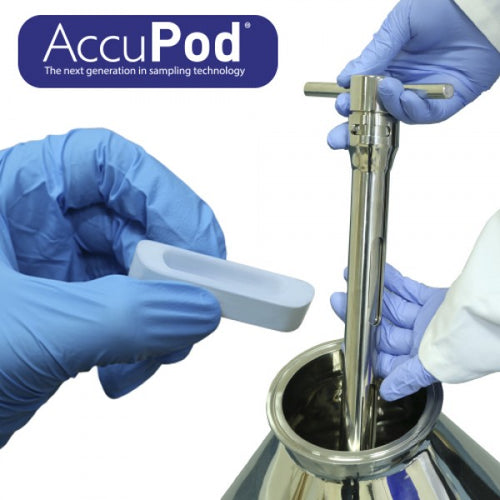

Taking a sample about the size of one dose from set points in a pharmaceutical blend. The U-D Master collects it in removable inserts from 0.1 to 4 ml, the MicroThief and MicroMate adjust from 0.01 to 0.1 ml, and the AccuPod keeps the sample in a single-use pod with a click-on lid, so it is not transferred before it reaches the lab.

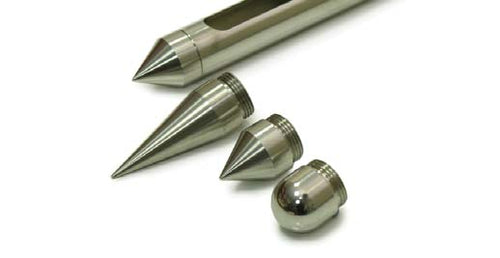

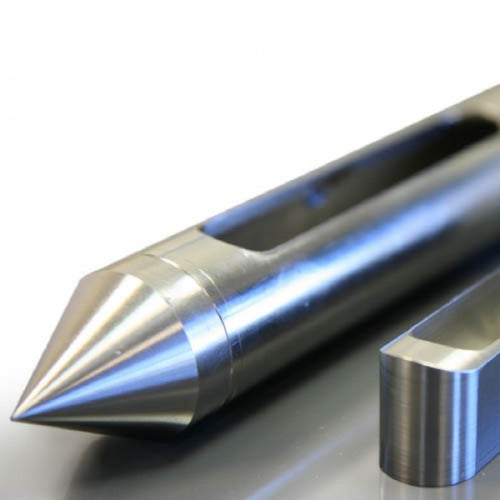

Samplers come with a standard tip, which suits most powders. A pointed tip helps with hard, dense powders; a rounded tip lowers the risk of damaging your equipment. Additional tips in 316L stainless fit 25 mm and 40 mm samplers.
316L stainless steel is the choice when chemical resistance is needed. Anodized aluminum keeps long samplers light and easy to handle, as on the Grain Spear and the Aluminum Slot Sampler.
