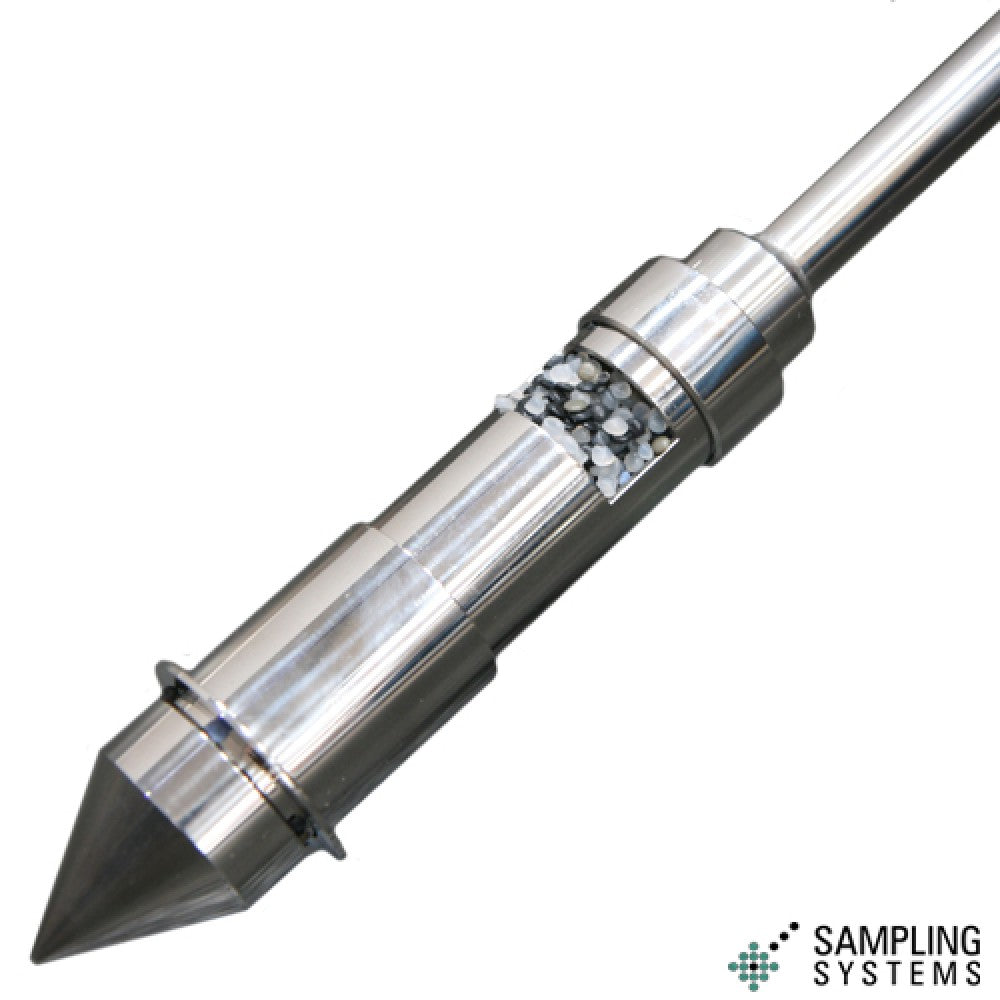

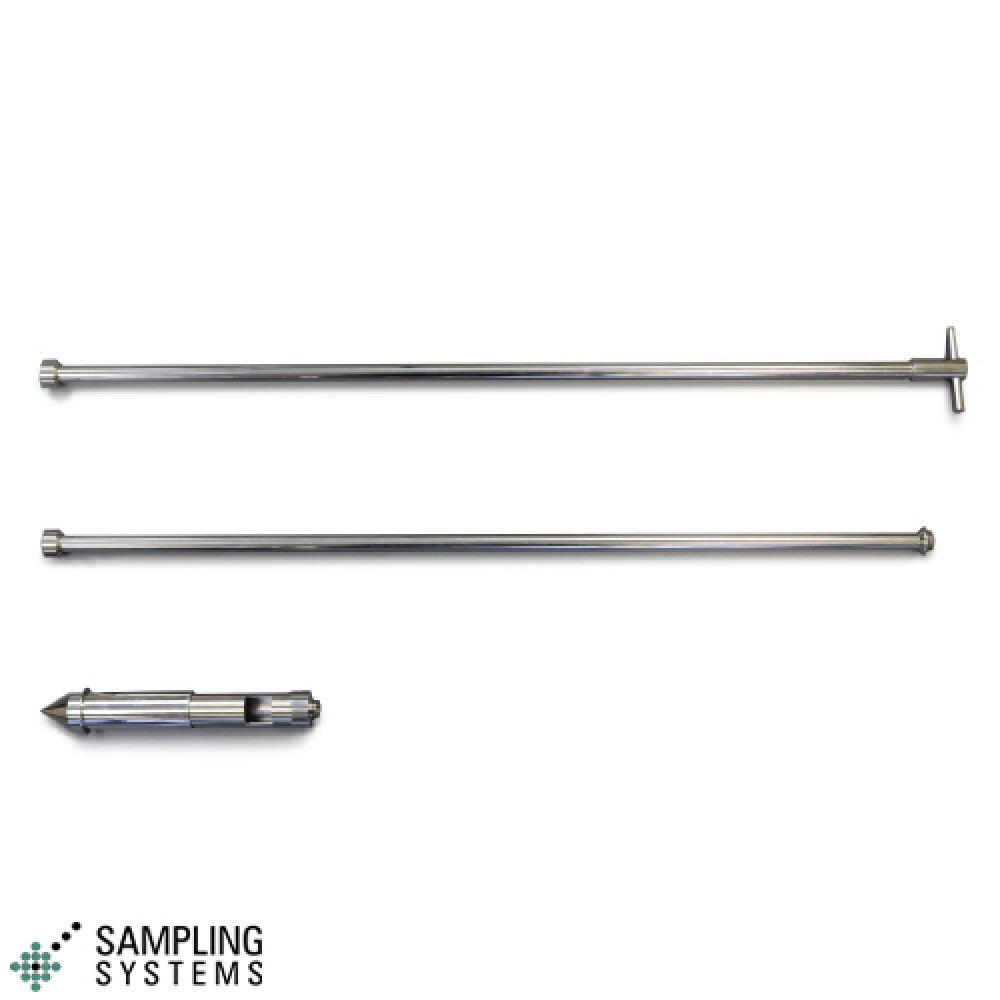

Various sized chambers can be attached to the same handle to allow different sample volumes to be taken. The heavy duty handle and extension rods have been designed to be extremely strong and robust to allow samples to be taken from great depths. We only recommend Heavy Duty handles with the Sleeve Sampler.

Type: Single point
Material: 316 stainless steel, bright finish
Options: Special lengths, chamber sizes and extension handles

Operation:

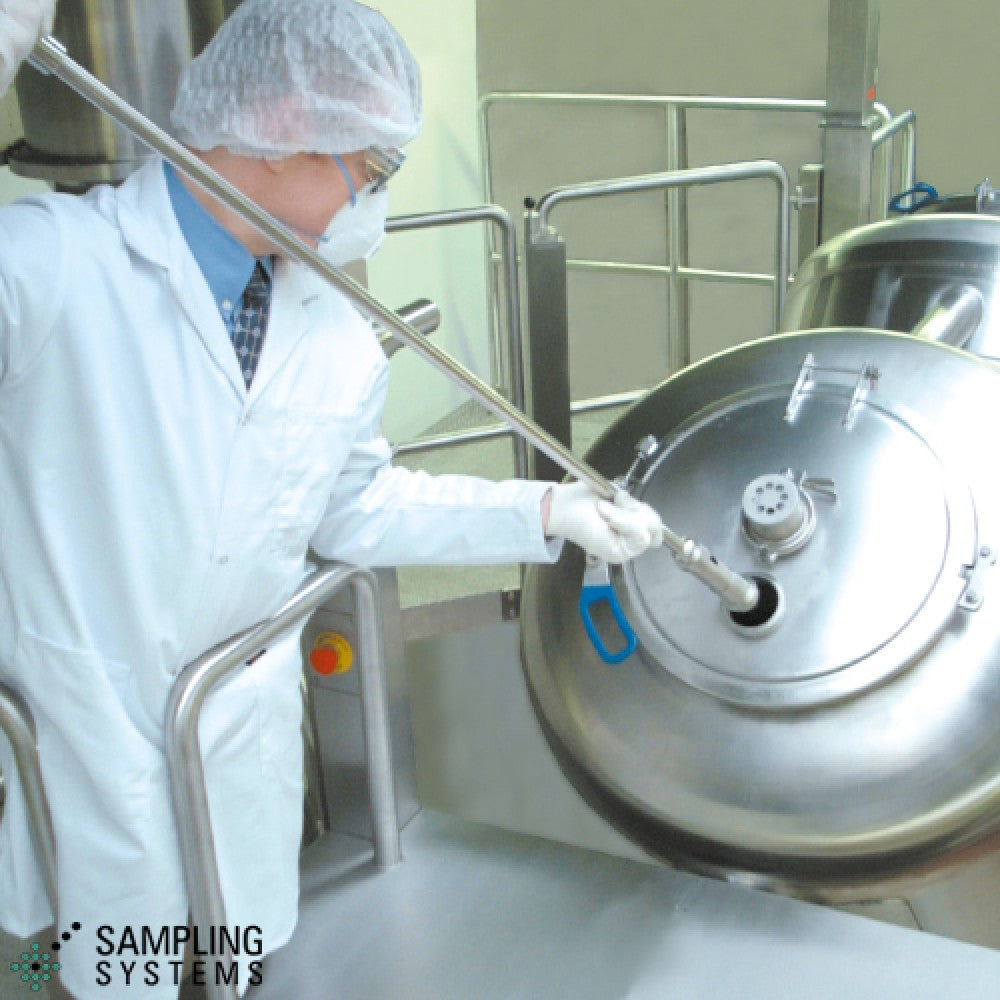

1. Select the correct chamber for the volume to be sampled and screw it onto the handle. Insert the sampler into the product.
2. At the required depth pull up the sampler slightly. This will force the sleeve down so that product can fall into the sample chamber.
3. Remove sampler.
4. To empty sampler either pour sample out of filling port or unscrew the tip.

Part NumberModelLengthCapacity
SS-1035A-1000Handles & Extension Rods Sleeve Sampler, Heavy Duty Handle1000 mm (39.4")-
SS-1035A-1500Handles & Extension Rods Sleeve Sampler, Heavy Duty Handle1500 mm (59.1")-
SS-1035E-1000Handles & Extension Rods Sleeve Sampler, Heavy Duty Extension Rod1000 mm (39.4")-
SS-1035T-100Sample Chambers Sample Chamber-100 ml (3.4 oz)
SS-1035T-150Sample Chambers Sample Chamber-150 ml (5.1 oz)
SS-1035T-200Sample Chambers Sample Chamber-200 ml (6.8 oz)
