The versatile design enables the sample volume to be quickly and easily changed by changing the removable sample cells.
Operation
1. Select the correct volume inserts and fit them into the inner rod.
2. Slide the assembled inner rod into the outer tube
3. Insert the sampler into the product, turn the handle to expose the sampling cells to the product.
4. Turn the handle so no sampling inserts are exposed then remove the sampler from the product.

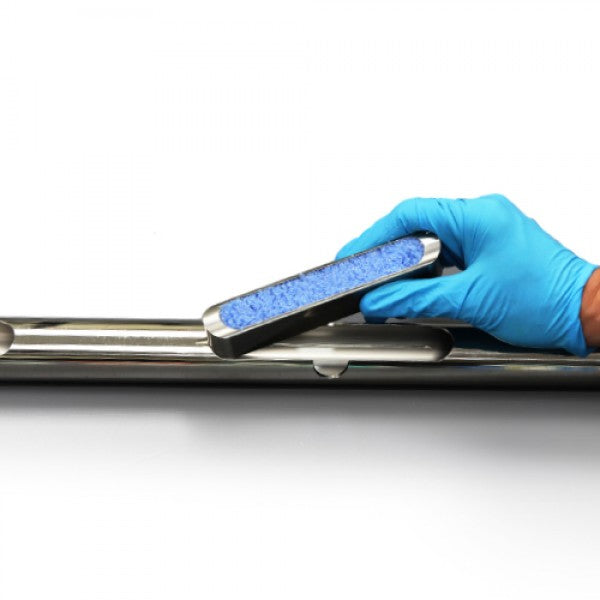

5. Remove the inner rod from the outer sleeve, the individual Sampling Inserts can then be easily removed for analysis.
*Note - cleaning brush and transport case also available
| Part Number | Length | Diameter | Number of Inserts Required | Volume | Material | Quantity |
| SS-1290K-1000 | 1000mm | 40mm | 3 | - | 316L stainless steel | 1/Box |
| SS-1290K-1500 | 1500mm | 40mm | 4 | - | 316L stainless steel | 1/Box |
| SS-1290K-2000 | 2000mm | 40mm | 4 | - | 316L stainless steel | 1/Box |
| SS-1290W-05 | - | - | - | 5ml | 316L stainless steel | 1/Box |
| SS-1290W-10 | - | - | - | 10ml | 316L stainless steel | 1/Box |
| SS-1290W-25 | - | - | - | 25ml | 316L stainless steel | 1/Box |
| SS-1290W-50 | - | - | - | 50ml | 316L stainless steel | 1/Box |
| SS-1290W-60 | - | - | - | 60ml | 316L stainless steel | 1/Box |
