Portable landfill gas analyzers: the QED GEM5000 for gas collection wellfields, the Geotech GA5000 with up to six gases, the BIOGAS 5000 for anaerobic digesters, and the SEM5000 laser methane detector for surface emission surveys. Rent or buy.
CH4 0–100% / CO2 0–100% / O2 0–25% / H2S 0–10,000 ppm (opt.) | Weight: 1.6 kg | Battery: ~8 hrs | IP65 | ATEX Zone 1 / IECEx / CSA / MCERTS certified
CH4 0–100% vol | CO2 0–100% vol | O2 0–25% vol | Operating temp -10 to +50°C | Battery ~8 hr, ATEX & CSA certified
CH4/CO2 0–100% vol | O2 0–25% vol | H2S up to 1,000 ppm | IP65 | ATEX/MCERTS/CSA certified | 8-hr battery | 1.6 kg
Methane (CH4) | 0–10,000 ppm / 1–100% Vol | TDLAS laser detection | ATEX Zone 1 / IP65 | 1.3 kg, 10 hr battery

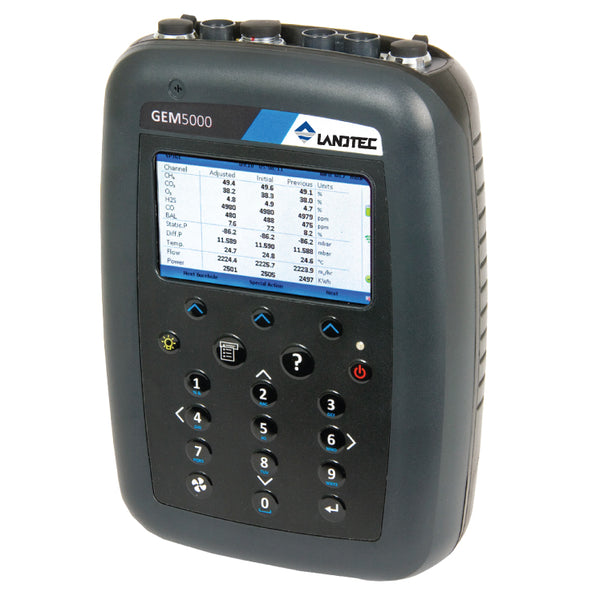

Landfill gas analyzers measure methane, carbon dioxide and oxygen to tune extraction wells, check flare feed and watch migration probes. The QED GEM5000 is built for landfill gas collection: it measures CH4, CO2 and O2 with static and differential pressure, and calculates balance gas, flow and calorific value. The Geotech GA5000 is modular, with up to six gases including H2S and CO, for landfills and contaminated land. The BIOGAS 5000 is made for anaerobic digesters and carbon-credit projects, with optional H2S. The QED SEM5000 uses a tunable diode laser specific to methane, from 0.5 ppm to 100% by volume, for surface emission and wellhead leak surveys under EPA Method 21. ERE rents and sells landfill gas monitors.
The GEM5000 is the standard tool for landfill gas collection and control systems; the GA5000 adds modular capability up to six gases; the BIOGAS 5000 is built for digesters and carbon-credit reporting rather than landfills. See our landfill gas monitoring guide.
Methane is explosive between roughly 5 and 15% in air and displaces oxygen in confined spaces, so the same readings serve compliance reporting and worker safety. The analyzers here carry ATEX or CSA certification for those atmospheres; check the rating against your site's classification.
Rent for a survey, a pilot or a short project; buy for routine wellfield rounds. Rental units are calibrated and tested before shipment.
