The sampler is designed to fit most common commercial drills. It is available in 3 diameters from 10mm to 50mm.

The sampler has an optional stainless steel ejection rod. This makes it easy to eject the sample from the sampler.

Operation

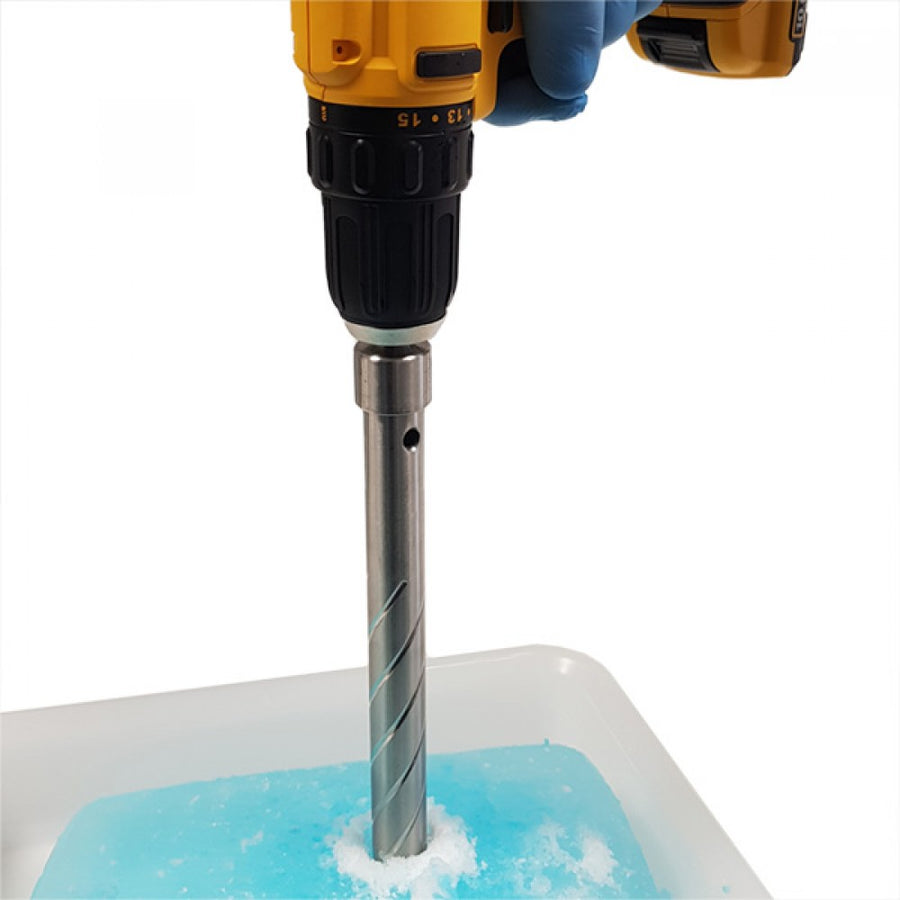

1. Attach the sampler to a drill
2. Press power which will rotate the sampler

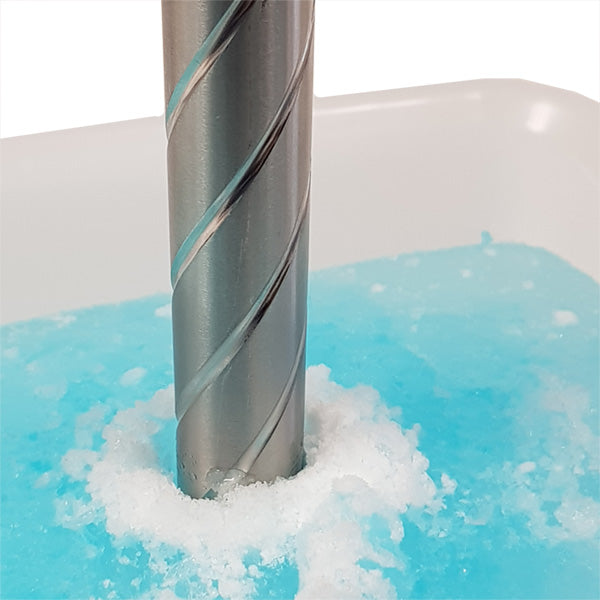

3. Start cutting the material into the sampler

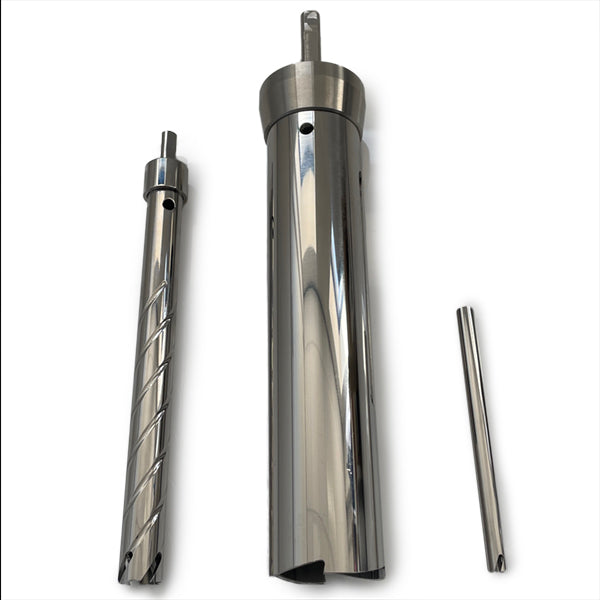

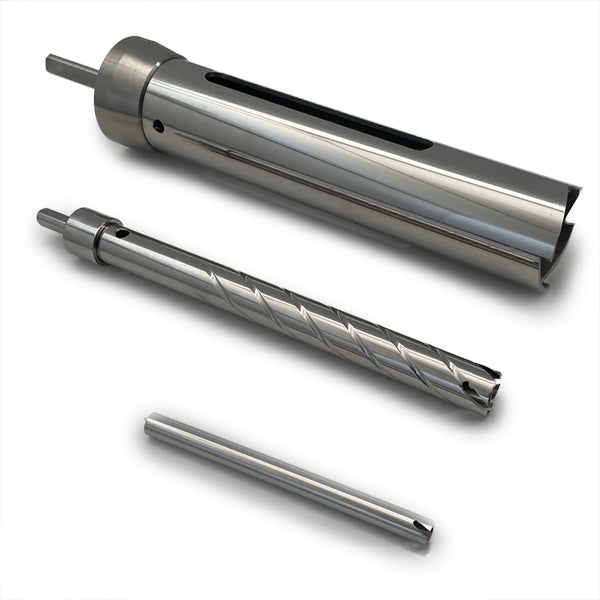

Part NumberModelLengthMaterial
6011A-10Powered Ice Sampler. 10mm diameter125mm316L stainless steel
6011A-20Powered Ice Sampler. 20mm diameter210mm316L stainless steel
6010A-50Powered Ice Sampler Body. 50mm diameter240mm316L stainless steel
6010A-240Powered Ice Sampler. 50mm diameter with discharge rod240mm316L stainless steel
6011A-20DDischarge Rod for 20mm powered ice sampler230mm316L stainless steel
6010A-50DDischarge Rod for 50mm powered ice sampler240mm316L stainless steel
Model Item Quantity Unit Price Line Total
Powered Ice Sampler - 10mm diameter - Powdered Ice Sampler
$ 0.00
Powered Ice Sampler. 20mm diameter - Powdered Ice Sampler
$ 0.00
Powered Ice Sampler Body. 50mm diameter - Powdered Ice Sampler
$ 0.00
Powered Ice Sampler. 50mm diameter with discharge rod - Powdered Ice Sampler
$ 0.00
Discharge rod for 20mm powered ice sampler - Powdered Ice Sampler
$ 0.00
Discharge rod for 50mm powered ice sampler - Powdered Ice Sampler
$ 0.00
$ 0.00
