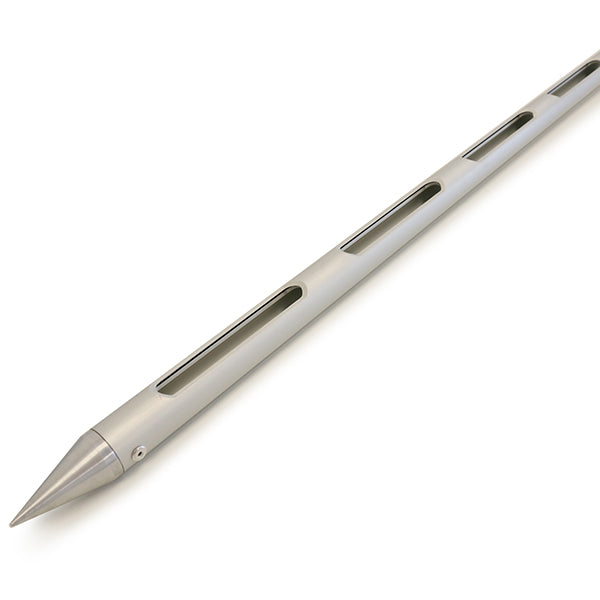

The Aluminum Slot Sampler has a number of sampling windows which help to ensure it gives a representative, all layer sample. This sampler is suitable for sampling free flowing powders and granules.
Operation
1. Insert the sampler into the product
2. Turn the handle to open the slot - the product can now be collected in the central tube
3. Turn the handle to close the slot
4. Remove the sampler
5. Invert the sampler to discharge the sample
| Part Number | Length | Diameter | Volume | No. of Sampling Points | Material |
| SS-1610A-600 | 600mm | 25mm | 80ml | 3 | Anodized Aluminum |
| SS-1610A-1000 | 1000mm | 25mm | 135ml | 5 | Anodized Aluminum |
| SS-1610A-1500 | 1500mm | 25mm | 190ml | 7 | Anodized Aluminum |
| SS-1610A-2000 | 2000mm | 25mm | 245ml | 7 | Anodized Aluminum |
| SS-1610A-2500 | 2500mm | 25mm | 350ml | 10 | Anodized Aluminum |
| SS-1210J-900 | 900mm | 50mm | 890ml | 3 | Anodized Aluminum |
| SS-1210J-1500 | 1500mm | 50mm | 1630ml | 5 | Anodized Aluminum |
| SS-1210J-2500 | 2500mm | 50mm | 2370ml | 7 | Anodized Aluminum |
