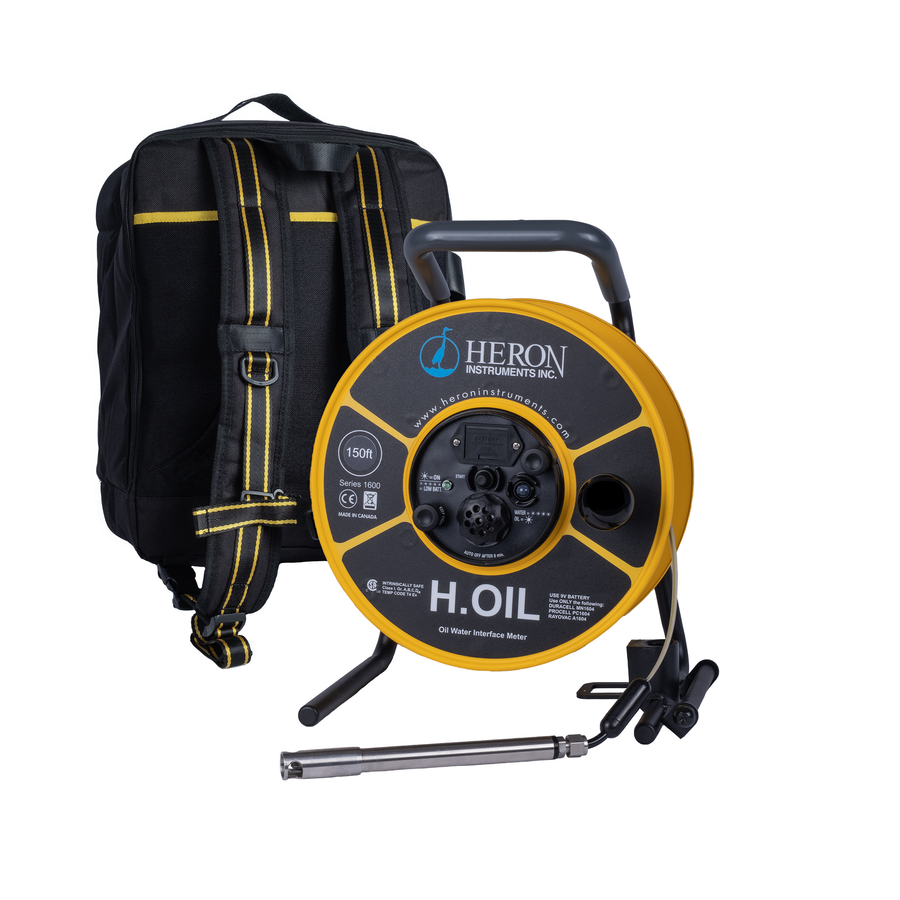

How the H.Oil Interface Meter Works
The ⅝" detachable probe (IP68) is lowered on the Kynar™ coated tape. When it contacts a liquid interface, the electronic panel produces distinct audio and visual signals — differentiating floating product (LNAPL), sinking product (DNAPL), and water. A grounding lead and ergonomic vinyl grip support safe one-hand operation, and the unit runs on a 9V battery.
The meter is certified Intrinsically Safe (ATEx, IECEx, UKEx, c-QPS-us) for use in hazardous, classified areas. Tape is available in metric lengths from 20 m to 300 m; imperial (ft) tape models are also available.
Key Specifications
| Part Number | Tape Model | Tape Material | Tape Length | Probe Type |
|---|---|---|---|---|
| HE-1602-20M | Metric | Premium Accuracy / Quality Kynar™ | 20 m | ⅝" Detachable Oil/Water Interface Probe |
| HE-1602-30M | Metric | Premium Accuracy / Quality Kynar™ | 30 m | ⅝" Detachable Oil/Water Interface Probe |
| HE-1602-60M | Metric | Premium Accuracy / Quality Kynar™ | 60 m | ⅝" Detachable Oil/Water Interface Probe |
| HE-1602-100M | Metric | Premium Accuracy / Quality Kynar™ | 100 m | ⅝" Detachable Oil/Water Interface Probe |
| HE-1602-150M | Metric | Premium Accuracy / Quality Kynar™ | 150 m | ⅝" Detachable Oil/Water Interface Probe |
| HE-1602-200M | Metric | Premium Accuracy / Quality Kynar™ | 200 m | ⅝" Detachable Oil/Water Interface Probe |
| HE-1602-300M | Metric | Premium Accuracy / Quality Kynar™ | 300 m | ⅝" Detachable Oil/Water Interface Probe |
*Tape model in imperial (ft) also available.
Includes
- H.Oil Version 2 Oil/Water Interface Meter
- Padded carrying case
Applications
- Remediation sites
- Oil & gas
- Chemical industry
- Petrochemical industry
- Hazardous environments
Related equipment we stock

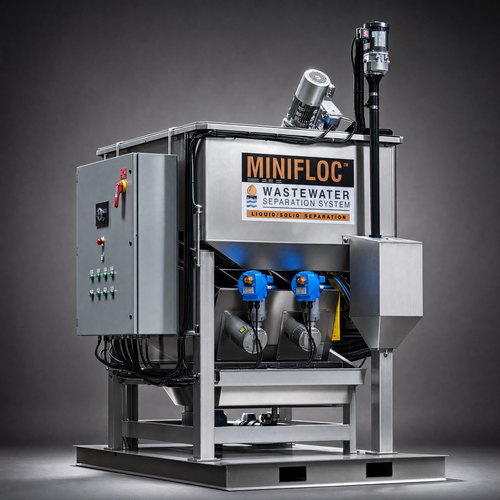

MiniFloc™ Wastewater Separation System
Model: ER-92-125 | Footprint: 8.5' L x 4.8' x 108" H | Power: 230/3/60 | Dry-flocculant batch process

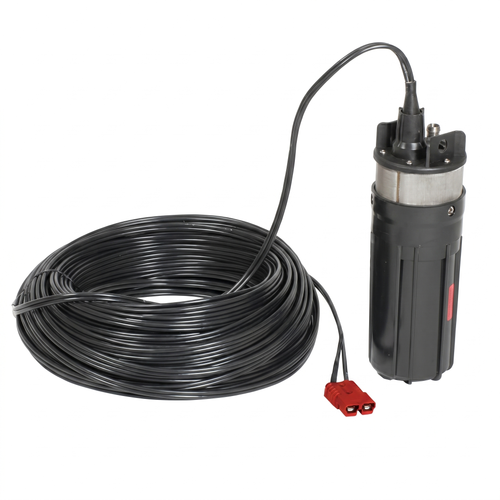

12V Abyss® Pumps
Max depth: 220–300 ft | Max flow: 2.30 GPM | Power: 75 W, 5 A, 12–15V | Well: 4” schedule 40+

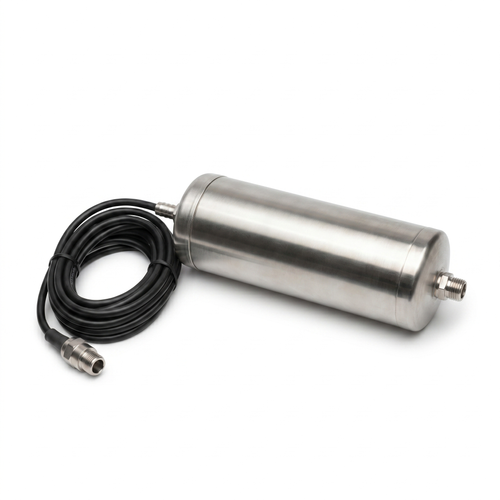

12V Stainless Steel XL Pumps
