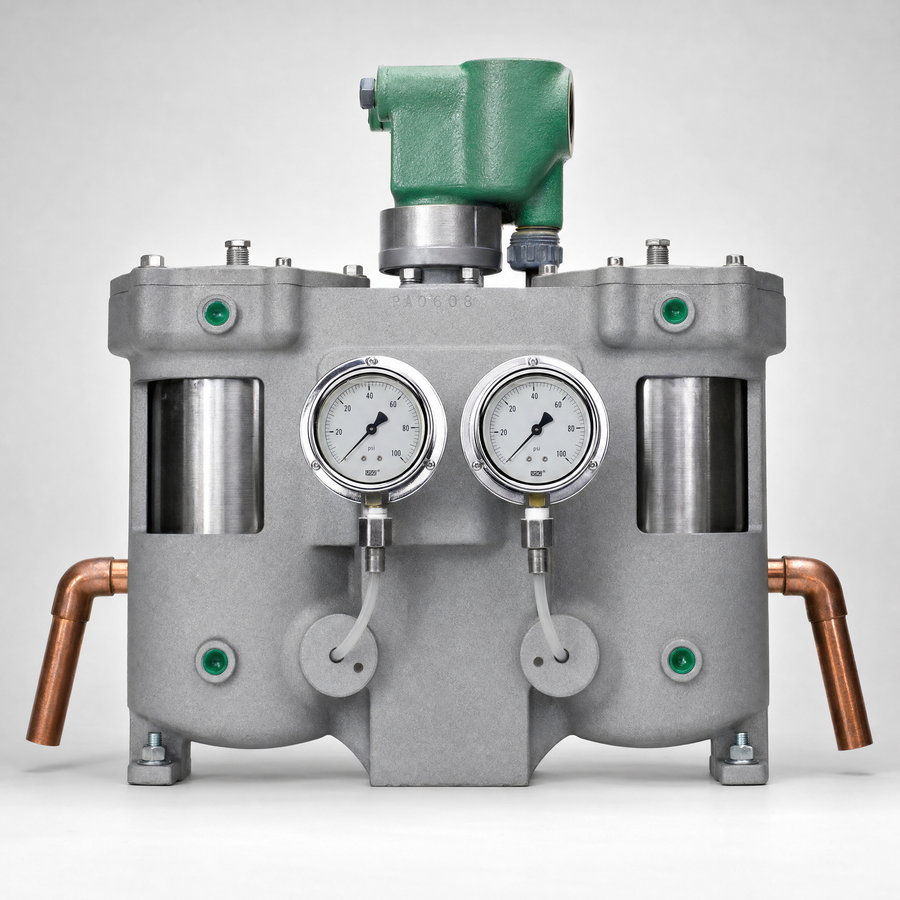

How the EasyClean™ Filter System Works
The EasyClean™ is a Zero Gravity self-cleaning filter: a variable-pitch aerospace-grade stainless steel spiral coil filters continuously, then "zeros out" gravity and opens evenly top-to-bottom during an automatic backwash — delivering a 100% clean element every cycle with no interruption to flow and no disposable media.
Engineered for 24/7/365 operation, the non-disposable stainless element eliminates consumable media and labor, making it a fit for long-duration remediation and industrial filtration where downtime is costly.
Specifications
| Filtration Technology | Zero Gravity self-cleaning spiral-coil filtration |
|---|---|
| Filtration Rating | 20–400 micron absolute (down to 1–5 micron coolant quality) |
| Filter Element | Aerospace-grade stainless steel spiral coil; interchangeable micron sizes; 5-year guarantee |
| Cleaning | Automatic backwash — coil opens top-to-bottom for 100% clean; uninterrupted flow during backwash |
| Media | None — non-disposable stainless element (no consumable filter media) |
| Operation | 24/7/365 continuous, no downtime |
| Flow Range | 1 gpm to unlimited (modular sizing) |
| Available Models | EZ Clean EC-100 · Easy Clean 700 (EC-700) |
Applications
- Cooling towers & chilled-water circuits
- White water & process/flume streams
- River water intake & analyzer protection
- Aluminum & metal machining coolant
- Quench and wash water
- Industrial process-water polishing
Related equipment we stock
RhinoSand™ Zeolite
Media: clinoptilolite zeolite | Mesh: 14×40 (0.4–1.4 mm) | Density: 55 lb/ft³ | Filtration: <5 µm nominal | Capacity: 2.6–2.8× sand

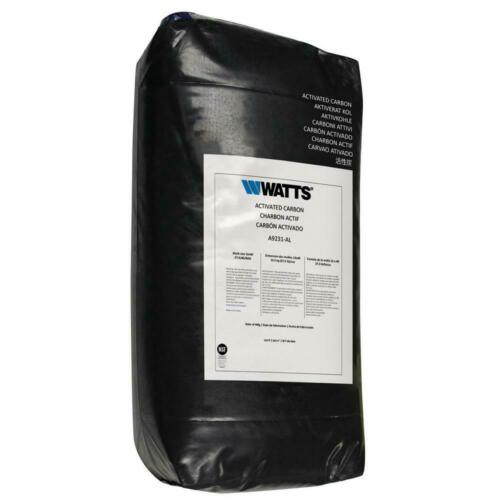

Watts® Activated Carbon - Granular Activated Carbon (GAC)
Coconut shell GAC | chlorine/taste/odor | max 110°F | max 125 psig | min 30 psig inlet

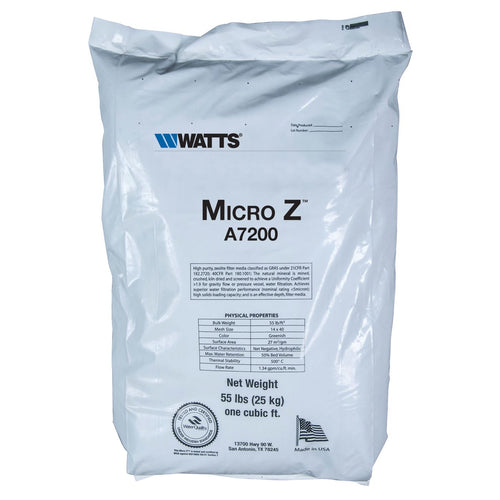

Watts® Micro Z - Superior Filtration Media
Zeolite | 14x40 mesh | 5 micron nominal | 12-20 gpm/sq.ft | bed 36-48 in | NSF/ANSI 61 & 372

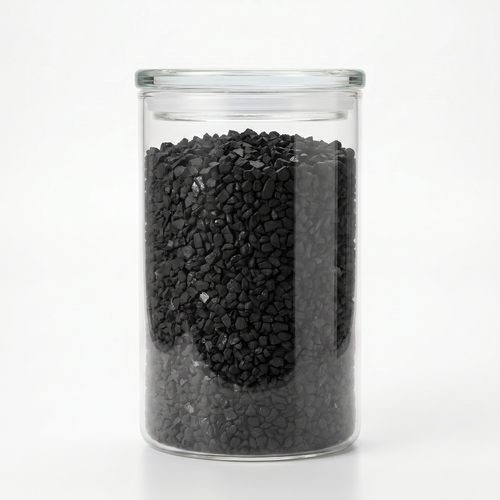

Water Treatment Activated Carbon Media
