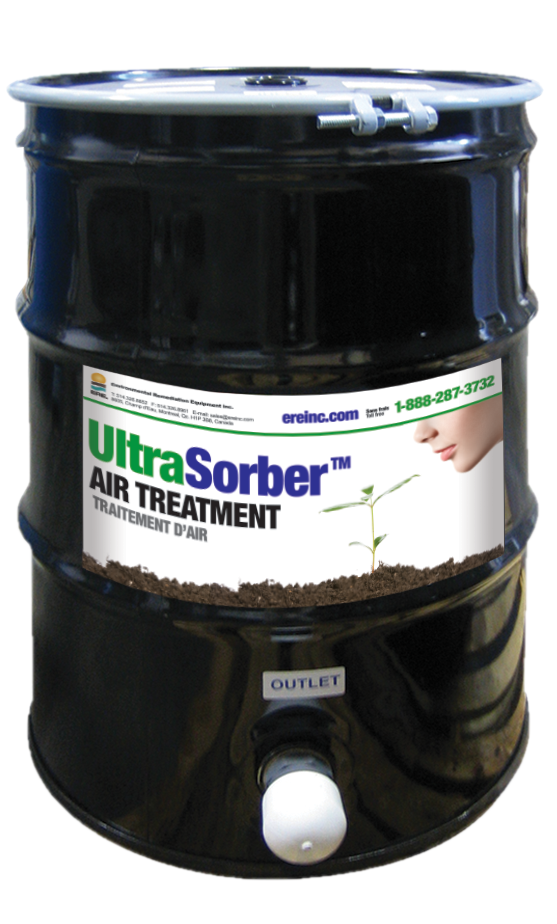

ERE Inc. manufactures the UltraSorber™ Air treatment units for many different types of applications. From industrial to commercial applications. Also available in different sizes. Each unit is specifically designed for each application.
| Applies To All Air Treatment Containers & Drums | |||||
| Drum Size | 5 Gal. (Plastic) | 10 Gal. (Plastic) | 25 Gal. (Plastic) | 55 Gal. (Metal Or Plastic) | 250 Gal. (Plastic) |
| Liquid Loading Rate | 36.7 fpm @ 20 cfm | 36.59 fpm @ 45 cfm | 42.08 fpm @ 85 cfm | 54.35 fpm @ 150 cfm | 60 fpm @ 600 cfm |
| Residence Time | 1.9 sec @ 20 cfm | 1.64 sec @ 45 cfm | 3.09 sec @ 85 cfm | 3.21 sec. @ 150 cfm | 2.67 sec @ 600 cfm |
| Inlet & Outlet | 1" FNPT | 1 ¼" FNPT | 2" FNPT | 2″ FNPT | 4" Slip / 6" Slip |
| UltraSorber-ODOR™, Sewage Odour Control - H2S or Sulphur Compounds Removal Media: Catalytic Activated Bituminous Coal Based Carbon | |||||||
| Part Number | Drum Size | Drum Material | Bulk Density (lbs/cf) | Mesh Size | Approx. Media Weight | Flow Rate | Max. Pressure (psi) |
| 90-020-5P | 5 | Plastic | 28 | 4 x 6 | 11.2 | 25 | |
| 90-020-10P | 10 | 28 | 40 | ||||
| 90-020-25P | 25 | 84 | 85 | ||||
| 90-020-55P | 55 | 168 | 150 | ||||
| 90-020-250P | 250 | 880 | 600 | ||||
