Graded Density Filtration

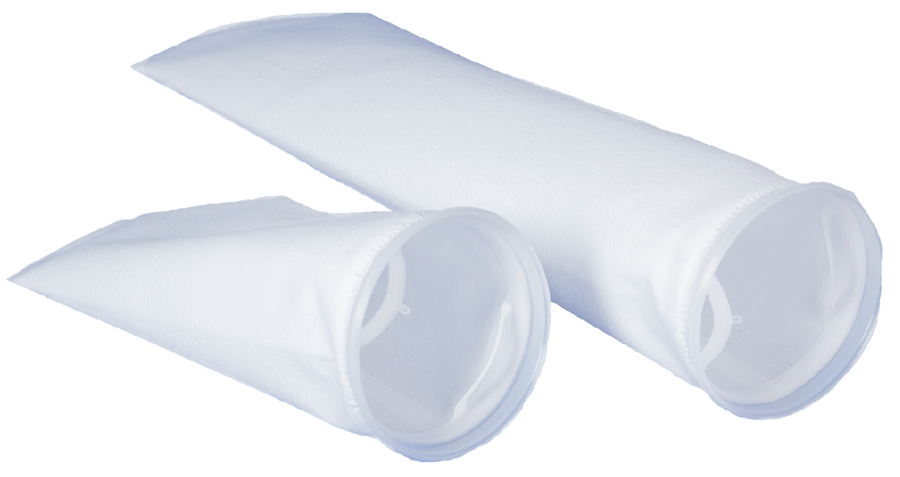

All Sampson™ high efficiency filter bags are manufactured from chemically resistant polypropylene microfiber media. Multiple layers of polypropylene microfiber media are combined to create a high-loft filter with excellent dirt holding characteristics. The layers are arranged for graded density filtration with the inner layers serving as a pre-filter to remove coarse particles, while the denser outer layers progressively remove finer particles for a polishing effect.
Welded Seam
Thermally bonded components coupled with staggered seam construction combine to
achieve improved particle retention efficiencies of up to 99.9%.
Applications
• Automotive
• Food, Beverage and Petrochemical
• Paint, Coatings, Ink and Adhesives
• Oil and Gas
| Micron Size | Size 1 | Size 2 | Size 3 | Size 4 |
| 0.5 | POMF-0.5-HE1P-P | POMF-0.5-HE2P-P | POMF-0.5-HE3P-P | POMF-0.5-HE4P-P |
| 1 | POMF-1-HE1P-P | POMF-1-HE2P-P | POMF-1-HE3P-P | POMF-1-HE4P-P |
| 2 | POMF-2-HE1P-P | POMF-2-HE2P-P | POMF-2-HE3P-P | POMF-2-HE4P-P |
| 5 | POMF-5-HE1P-P | POMF-5-HE2P-P | POMF-5-HE3P-P | POMF-5-HE4P-P |
| 10 | POMF-10-HE1P-P | POMF-10-HE2P-P | POMF-10-HE3P-P | POMF-10-HE4P-P |
| 25 | POMF-25-HE1P-P | POMF-25-HE2P-P | POMF-25-HE3P-P | POMF-25-HE4P-P |
| Filter Model | Removal Efficiency | Size Removed |
| POMF-0.5 | 99.9% | 0.5-1 μm |
| POMF-1 | 99.0% | 1-2 μm |
| POMF-2 | 99.6% | 2-5 μm |
| POMF-5 | 99.3% | 5-10 μm |
| POMF-10 | 99.8% | 10-15 μm |
| POMF-25 | 99.9% | 20-30 μm |
Filter Dimensions | Maximum Flow Rate | ||
| Size | Dimension | GPM | m³/h |
| 1 | 7 Ø x 16.5" | 60 | 14 |
| 2 | 7 Ø x 32" | 100 | 23 |
| 3 | 4 Ø x 8" | 20 | 5 |
| 4 | 4 Ø x 14" | 40 | 9 |
Maximum Operating Temperature | |||
POMF | 200 °F | 93 °C | |
