In addition, the Diffusive model also has an externally located Intrinsically Safe sensor for quick and easy servicing without the need for a hot work permit and only requires annual maintenance. Dual certification allows your fixed VOC gas detector to be serviced and calibrated in a hazardous environment without having to remove power!
Features
• IP65 ingress protection
• Live readings & instantaneous alarms
• Robust ExD housing offers ease of installation and product protection
• Typhoon technology prevents condensation forming within the PID sensor
• UL Certified
| Part Number | Description | Detection Range | Stack Color | Lamp | Calibration Points | Sensitivity | Kit Includes | Calibration Equipment |

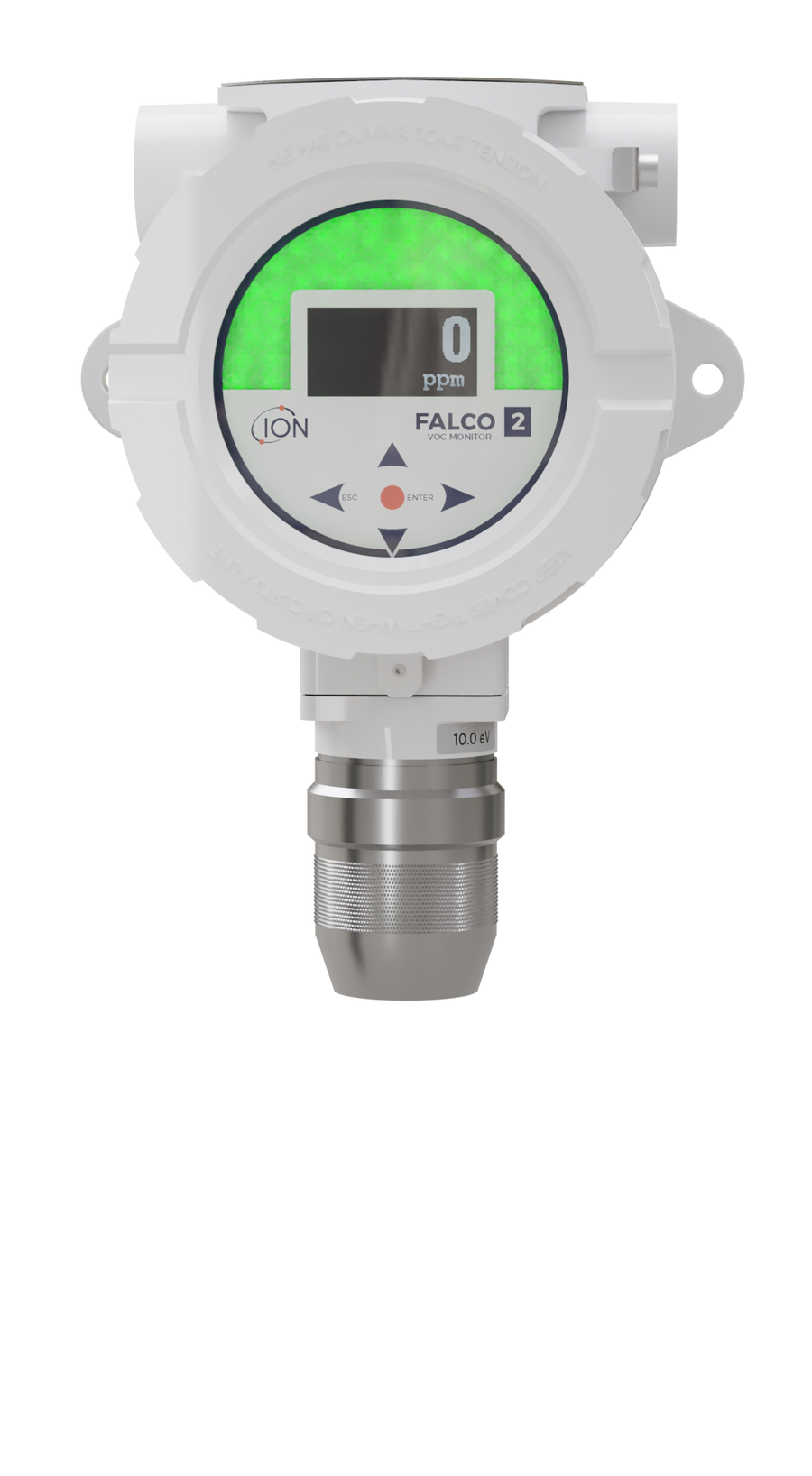

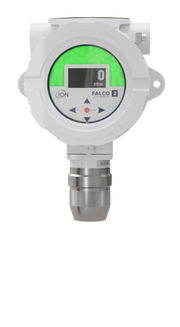

| IS-FA2BSXBXX-50D | Falco 2.1 Tac Fixed VOC Detector 0.01 - 50 ppm Diffused Model | 0.01 - 50.0 ppm (TAC) | White + Gold Spot | 10.0 eV | 2 points | 0.01 ppm | • Falco 2 TAC MiniPID (6-Pin) White + Gold Spot • Warranty Registration Card • Safety Notice For Falco 2 Instrument • PID Lamp Cleaning Kit • Falco 2 No Pump Comes With Rj45 Cable • MiniPID Electrode Stack Removal Tool • Package Information Card | • NLB-H105550PA • NLB-417 |

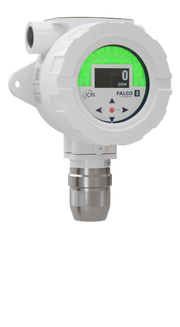

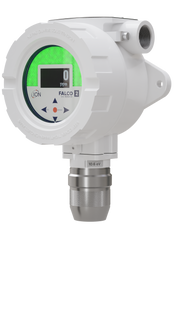

| IS-FA2XSXBXX-10D | Falco 2.1 Fixed VOC Detector 0.001 - 10 ppm Diffused Model | 0.001 - 10 ppm | White | 10.6 eV | 2 points | 0.001 ppm | •Falco 2 MiniPID (6-Pin) White • Warranty Registration Card • Safety Notice For Falco 2 Instrument • PID Lamp Cleaning Kit • Falco 2 No Pump Comes With Rj45 Cable • MiniPID Electrode Stack Removal Tool • Package Information Card | • NLB-H105510PA • NLB-417 |
| IS-FA2XSXBXX-50D | Falco 2.1 Fixed VOC Detector 0.01 - 50 ppm Diffused Model | 0.01 - 50 ppm | Orange | 10.6 eV | 2 points | 0.01 ppm | •Falco 2 MiniPID (6-Pin) Orange • Warranty Registration Card • Safety Notice For Falco 2 Instrument • PID Lamp Cleaning Kit • Falco 2 No Pump Comes With Rj45 Cable • MiniPID Electrode Stack Removal Tool • Package Information Card | • NLB-H105550PA • NLB-417 |
| IS-FA2XSXBXX-1000D | Falco 2.1 Fixed VOC Detector 0.1 - 1000 ppm Diffused Model | 0.1 - 1000 ppm | White | 10.6 eV | 3 points | 0.1 ppm | •Falco 2 MiniPID (6-Pin) White • Warranty Registration Card • Safety Notice For Falco 2 Instrument • PID Lamp Cleaning Kit • Falco 2 No Pump Comes With Rj45 Cable • MiniPID Electrode Stack Removal Tool • Package Information Card | • NLB-H1055100PA • NLB-H10551000PA • NLB-417 |
| IS-FA2XSXBXX-3000D | Falco 2.1 Fixed VOC Detector 1 - 3000 ppm Diffused Model | 1 - 3000 ppm | Orange | 10.6 eV | 3 points | 1 ppm | •Falco 2 MiniPID (6-Pin) Orange • Warranty Registration Card • Safety Notice For Falco 2 Instrument • PID Lamp Cleaning Kit • Falco 2 No Pump Comes With Rj45 Cable • MiniPID Electrode Stack Removal Tool • Package Information Card | • NLB-H1055100PA • NLB-H10551000PA • NLB-417 |
Comparable models
Browse all →
Related equipment we stock
M2A-XL Stand Alone Transmitter
Quote on request
Request a Quote
IS-FA2BSXBXX-50P
Falco 2 Fixed VOC Detector Pumped Model
• Detection Range: 0.01 - 50.0 ppm (TAC) | • Stack Colour: White + Gold Spot | • Lamp: 10.0 eV | • Calibration Points: 2 points
Quote on request
Request a Quote
IS-875405
Transport Case For Titan 2 Replacement Detector Module
Quote on request
Request a Quote

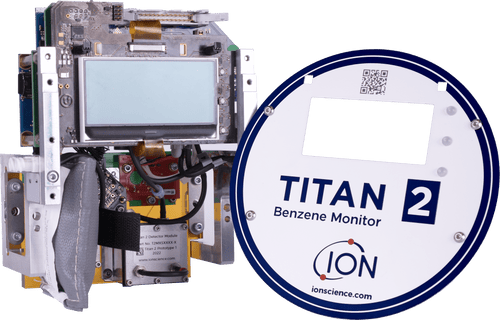

IS-T2SMXSXXXX-X
