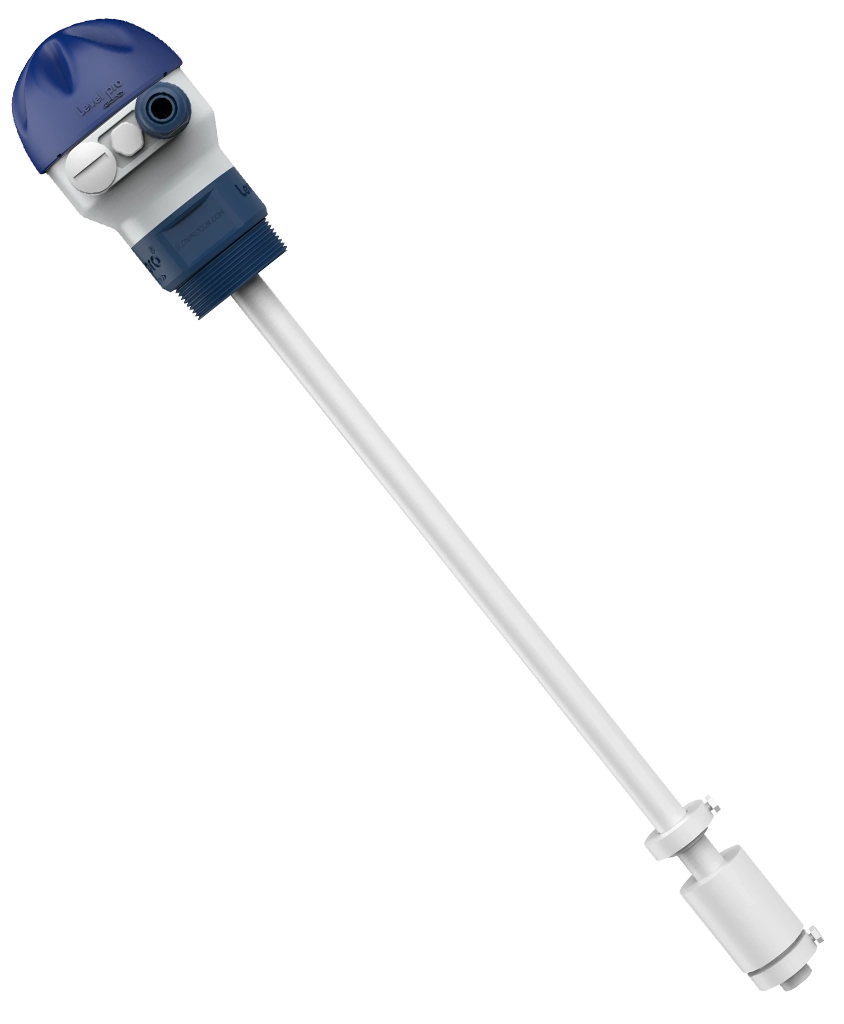

The PLF is a multi-point liquid level float switch assembly with 1 to 8 switch points and a compact junction box for wiring. It suits day tanks, skids, cooling towers and sumps with non-viscous, non-coating liquids, and needs no power.
- 1 to 8 level switch points
- Lengths of 6 in to 72 in
- PVC, PP, PVDF or 316 SS
- 2 in NPT or flange connection
- No power required
- Direct connection to a PLC or relay controller
Specify number of floats (X), normally open or closed contact (Y) and length (D, 6-72 in). Priced for 6-24 in; add $139 (PVC, 316 SS), $155 (PP) or $199 (PVDF) per additional 12 in. Contact us to order.
