FEATURES
Pre-treatment included
• Wall mount vessels (2) 20-BB
• Sediment cartridge FM-BB-20-1
• Activated carbon cartridge WCBCFF20

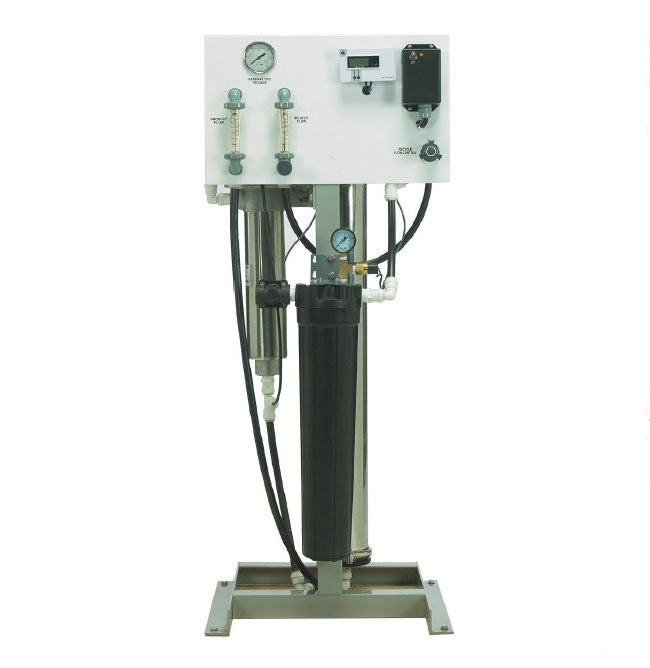

Reverse osmosis system, PUR-O-04 Series (120 volts)
• Powder coated steel frame
• Inlet solenoid valve
• Low-pressure protection with microprocessor, with auto reset
• 20” prefilter with pressure gauge
• Multistage centrifugal pump
• 2 ½” liquid filled pump pressure gauge
• Stainless steel pressure vessel(s)
• Low pressure TFC Membrane with a nominal reject rate of 98 %
• Recovery rate up to 75 %
• Product and Reject flow meter
• Concentrate needle valve
• Non metallic recycle needle valve
• On / off toggle switch
• Feed water and product water TDS monitor
Additional features included in PUR-O-4B Series (230 volts)
• Tank level input (dry contact)
• Pre-treatment interlock input (dry contact)
| Part Number | Permeate output GPD (25 C) | Membranes size and number | Dimensions(LxHxD) | Pump (HP) |
| PUR-O-04A-2200 | 2,200 | (1) - 4’’ x 40’’ | 20’’ x 20’’ x 50’’ | ¾ |
| PUR-O-04B-2200 | ||||
| PUR-O-04A-4400 | 4,400 | (2) - 4’’ x 40’’ | 20’’ x 20’’ x 50’’ | 1 |
| PUR-O-04B-4400 | ||||
| PUR-O-04A-6600 | 6,600 | (3) - 4’’ x 40’’ | 20’’ x 26’’ x 50’’ | 1 ½ |
| PUR-O-04B-6600 |
| Part Number | Model |
| PUR-O-FL | Level float |
| PUR-O-165 | Atmospheric storage tank, 165 gallons, with level float and GRUNDFOS MQ3 pump |
| PUR-O-300 | Atmospheric storage tank, 300 gallons, with level float and GRUNDFOS MQ3 pump |
| PUR-O-500 | Atmospheric storage tank, 500 gallons, with level float and GRUNDFOS MQ3 pump |
