Sludge Dewatering Systems!

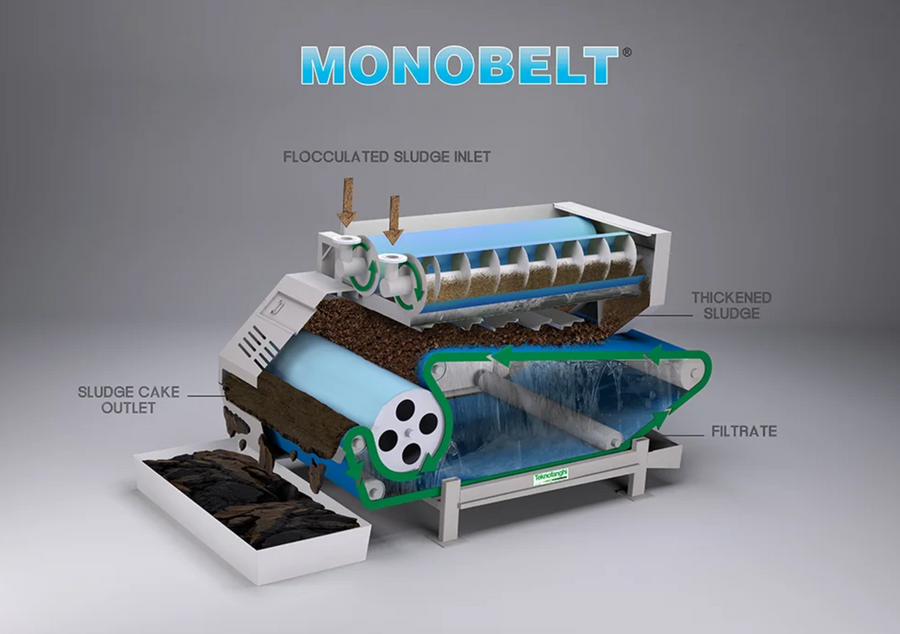

The MONOBELT® belt filter press is an entirely new patented design. It comprises two units, the pre-thickener and the sludge press. The prethickener performs the initial solid/liquid separation stage, taking sludge solids concentration from 0.5 - 3% up to 5 - 15%. The sludge press takes pre-thickened sludge and spreads it uniformly onto the main filter cloth via a series of baffles. Final dewatering occurs as the sludge cake passes between the perforated cylinder, which is covered with secondary cloth, and the main cloth. Discharged sludge cake can reach dry solids contents of 18 - 30%.
Max flow depends on the type of sludge and concentration of DS.
Related equipment we stock

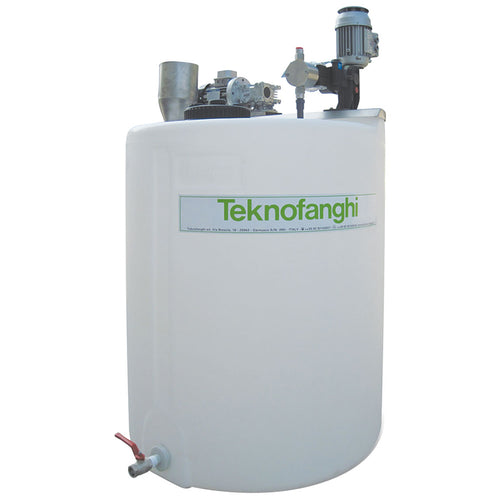

POLYDILUTION® TE-CMP Manual Series
300 / 500 / 1000 L tanks (CMP03 / CMP05 / CMP10) | AISI 304 stainless steel metal parts | Plunger metering pump, manual flow adjustment 10–100% | Polyethylene tank with visual level gauge | For small WWTPs, pairs with TEKNOBAG®-DRAIMAD®

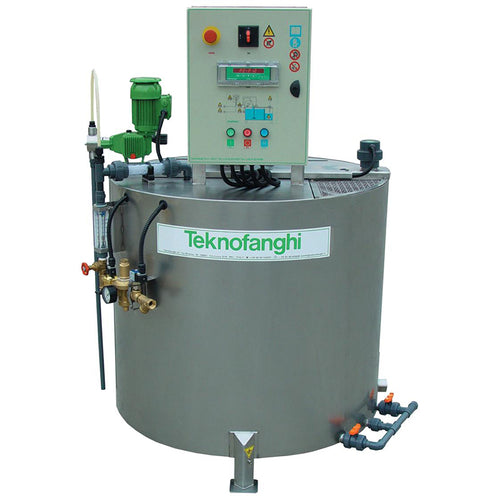

POLYDILUTION® TE-CAP Series - Emulsion
Emulsion-base polyelectrolyte | Max 2,000 or 6,000 L/h solution | AISI 304 stainless steel | Automatic, digital controller | Min. 20 min ageing

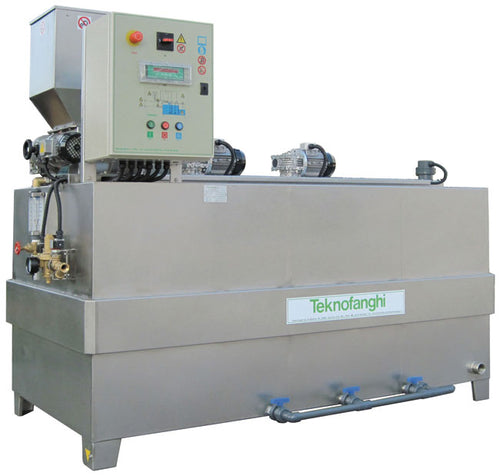

POLYDILUTION® TE-CAP Series - Powder
Automatic continuous powder polyelectrolyte preparation | 750–6,000 L/h solution output (4 models: CAP07CE–CAP60CE) | AISI 304 stainless steel construction | 3-stage process: dilution, dispersion, ageing/storage tanks

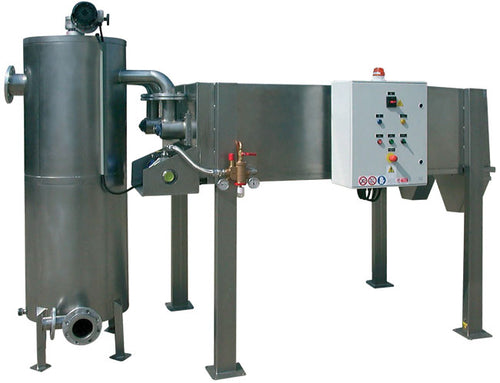

Teknofanghi SCRUDRAIN® Dynamic Drum Sludge Thickener
Thickens 0.5–3% DS sludge to 5–15% DS | Capacity up to 200 m³/h per unit | Capture rate up to 98% | Archimedean-screw rotating drum | Plug-and-play with control panel + washing pump
