TE-CMP Manual Series!

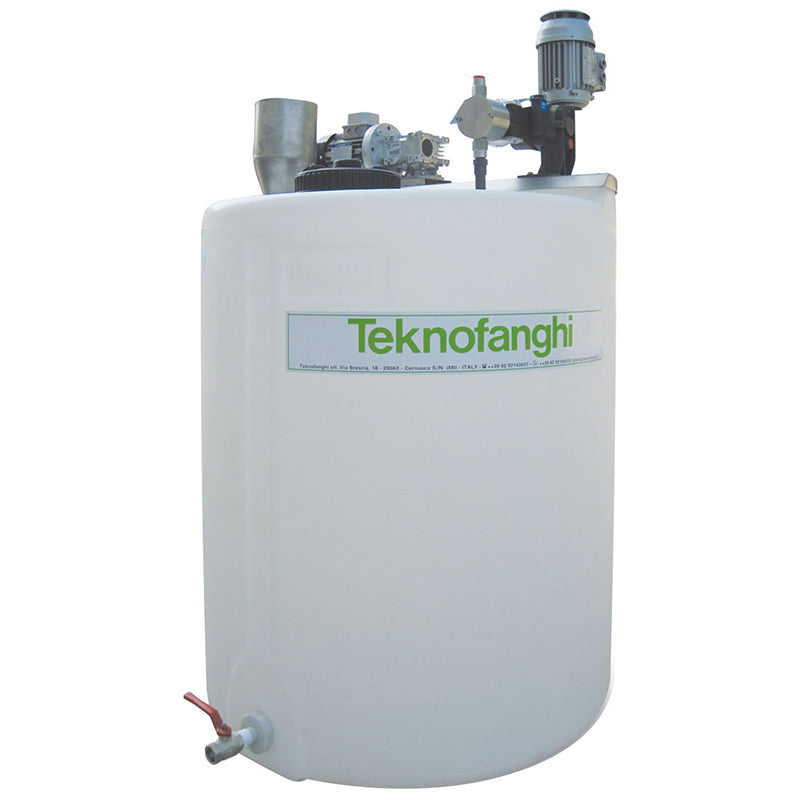

Polyelectrolyte preparation and dosing equipment has been designed for use with our range of sludge dewatering equipment.
The manual range is suitable where the requirement for flocculant is not continuous and personnel are available for chemical make-up. The manual models (TE-CMP series) are suitable for small waste water treatment plant installation, and can be installed mainly with the TEKNOBAG®-DRAIMAD®.
This series of equipment are made of anticorrosive materials and all metal parts are manufactured from stainless steel AISI 304.
TE-CMP Manual Series comes complete with:
• Polyethylene tank with visual level gauge, inspection cap and manual drain valve
• Safety protection made in AISI 304 grade stainless steel and fixed under the inspection cap
• Reinforced top plate in AISI 304 grade stainless steel
• Mixer with 45° three-bladed propeller constructed in AISI 304 gr ade stainless steel
• Metering pump suction pipe
• Plunger metering pump with manual flow adjustment from 10% to 100%. Adjustable with pump operating or stopped
• Metering pump protected by safety valve (optional)
