This is the most modern & economical solution to sludge thickening. Sludge thickeners are widely used in many waste-water and water treatment plants. The SCRUDRAIN® sludge thickeners can handle from 10 m3/h to a maximum of 60 m3/h, depending on the type of sludge and the dry solid content. Changing the speed of the Archimedean screw allows adjustment of the concentration of the thickened sludge & minimises the use of polyelectrolyte according to requirements. As a general guide, sludge with 0,5 - 3% can be thickened to 5 - 15% DS.

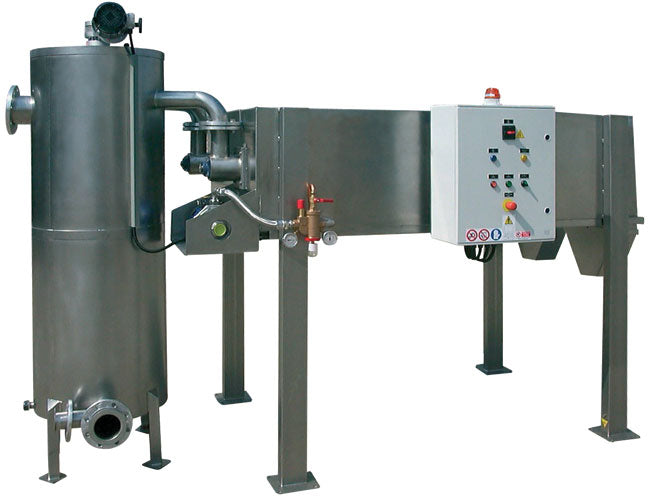

SCRUDRAIN® rotating thickener with Archimedean screw comes complete with:
• Control panel
• Washing pump
• Set of covers to keep the thickener in accordance with "EC" safety directives
| OPTIONS | |
| TERCT-250 | Flocculation-Reactor 250 liters (TEAD04C) |
| TERCT-375 | Flocculation-Reactor 375 liters (TEAD06C) |
| TERCT-500 | Flocculation-Reactor 500 liters (TEAD04D) |
| TERCT-750 | Flocculation-Reactor 750 liters (TEAD06D) |
| TETRM-AD04C | Hopper for thickening sludge for TEAD04C including evacuation pump 4 m3 /h |
| TETRM-AD04D | Hopper for thickening sludge for TEAD04D including evacuation pump 8 m3 /h |
| TETRM-AD06C | Hopper for thickening sludge for TEAD06C including evacuation pump 6 m3 /h |
| TETRM-AD06D | Hopper for thickening sludge for TEAD06D including evacuation pump 12 m3 /h |
Compare models
Your selection is highlighted. Select a row to switch.| MODELS | |
| TEAD04C | Dynamic thickener with one Ø 400 mm rotating drums |
| TEAD04D | Dynamic thickener with two Ø 400 mm rotating drums |
| TEAD06C | Dynamic thickener with one Ø 600 mm rotating drums |
| TEAD06D | Dynamic thickener with two Ø 600 mm rotating drums |
