In addition, the Diffusive model also has an externally located Intrinsically Safe sensor for quick and easy servicing without the need for a hot work permit and only requires annual maintenance. Dual certification allows your fixed VOC gas detector to be serviced and calibrated in a hazardous environment without having to remove power!
Features
• IP65 ingress protection
• Live readings & instantaneous alarms
• Robust ExD housing offers ease of installation and product protection
• Typhoon technology prevents condensation forming within the PID sensor
• UL Certified
Compare models
Your selection is highlighted. Select a row to switch.| Part Number | Description | Detection Range | Stack Color | Lamp | Calibration Points | Sensitivity | Kit Includes | Calibration Equipment |
| IS-FA2BSXBXX-50D | Falco 2.1 Tac Fixed VOC Detector 0.01 - 50 ppm Diffused Model | 0.01 - 50.0 ppm (TAC) | White + Gold Spot | 10.0 eV | 2 points | 0.01 ppm | • Falco 2 TAC MiniPID (6-Pin) White + Gold Spot • Warranty Registration Card • Safety Notice For Falco 2 Instrument • PID Lamp Cleaning Kit • Falco 2 No Pump Comes With Rj45 Cable • MiniPID Electrode Stack Removal Tool • Package Information Card | • NLB-H105550PA • NLB-417 |

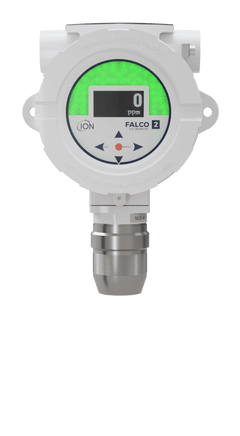

| IS-FA2XSXBXX-10D | Falco 2.1 Fixed VOC Detector 0.001 - 10 ppm Diffused Model | 0.001 - 10 ppm | White | 10.6 eV | 2 points | 0.001 ppm | •Falco 2 MiniPID (6-Pin) White • Warranty Registration Card • Safety Notice For Falco 2 Instrument • PID Lamp Cleaning Kit • Falco 2 No Pump Comes With Rj45 Cable • MiniPID Electrode Stack Removal Tool • Package Information Card | • NLB-H105510PA • NLB-417 |
| IS-FA2XSXBXX-50D | Falco 2.1 Fixed VOC Detector 0.01 - 50 ppm Diffused Model | 0.01 - 50 ppm | Orange | 10.6 eV | 2 points | 0.01 ppm | •Falco 2 MiniPID (6-Pin) Orange • Warranty Registration Card • Safety Notice For Falco 2 Instrument • PID Lamp Cleaning Kit • Falco 2 No Pump Comes With Rj45 Cable • MiniPID Electrode Stack Removal Tool • Package Information Card | • NLB-H105550PA • NLB-417 |
| IS-FA2XSXBXX-1000D | Falco 2.1 Fixed VOC Detector 0.1 - 1000 ppm Diffused Model | 0.1 - 1000 ppm | White | 10.6 eV | 3 points | 0.1 ppm | •Falco 2 MiniPID (6-Pin) White • Warranty Registration Card • Safety Notice For Falco 2 Instrument • PID Lamp Cleaning Kit • Falco 2 No Pump Comes With Rj45 Cable • MiniPID Electrode Stack Removal Tool • Package Information Card | • NLB-H1055100PA • NLB-H10551000PA • NLB-417 |
| IS-FA2XSXBXX-3000D | Falco 2.1 Fixed VOC Detector 1 - 3000 ppm Diffused Model | 1 - 3000 ppm | Orange | 10.6 eV | 3 points | 1 ppm | •Falco 2 MiniPID (6-Pin) Orange • Warranty Registration Card • Safety Notice For Falco 2 Instrument • PID Lamp Cleaning Kit • Falco 2 No Pump Comes With Rj45 Cable • MiniPID Electrode Stack Removal Tool • Package Information Card | • NLB-H1055100PA • NLB-H10551000PA • NLB-417 |
Documents
Calibration and repair
Send it to our Montreal service team. We evaluate the instrument and send a detailed quote before any work starts.
Compare with similar models
Ion Science Inc. · Fixed Gas Detector| Spec | This model Falco 2 Fixed VOC Detector Diffused ModelPrice on quote

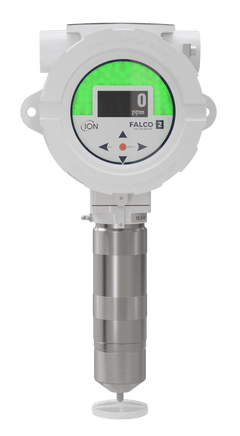

|  Falco 2 Fixed VOC Detector Pumped ModelPrice on quote
|
|---|---|---|
| • Detection Range | 0.001 - 10 ppm | 0.01 - 50.0 ppm (TAC) |
| • Stack Colour | White | White + Gold Spot |
| • Lamp | 10.6 eV | 10.0 eV |
| • Calibration Points | 2 points | 2 points |
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
Can ERE calibrate or repair it?
Yes. Our Montréal service shop calibrates and repairs it in-house. Request service
What warranty does it carry?
The manufacturer's warranty applies. The exact terms are in the warranty document. Read the warranty
