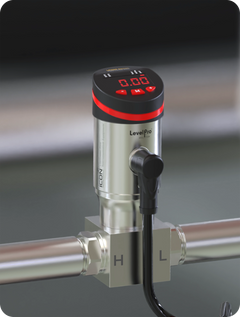

The DPS50i is a digital differential pressure sensor for monitoring across strainers, filters and pipelines. It has a diffused silicon diaphragm, a 316 SS housing, a bright LED display and 4-20mA with IO-Link or RS485 output.
- Differential pressure across filters and strainers
- 316 SS housing and wetted parts
- Bright LED display, 330 degree rotatable
- 4-20mA, IO-Link and PNP/NPN switch output (RS485 version available)
- Eight pressure ranges from 0-1.45 to 0-362.5 psi
Specifications
- Supply Voltage
- 12 to 30 VDC
- Accuracy
- ±0.5% of range
- Medium Temperature
- -4 to 185 F (-20 to 85 C)
- Diaphragm
- Diffused silicon
Documents
Compare with similar models
Icon Process Controls · Pressure Transmitter| Spec | This model Icon DPS50i Digital Differential Pressure Sensor$899.75 CAD

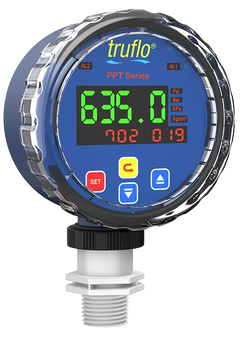

|  Icon PPT Tri-Display Pressure Meter with 2 Relay Outputs and 4-20mAfrom $799.95 CAD

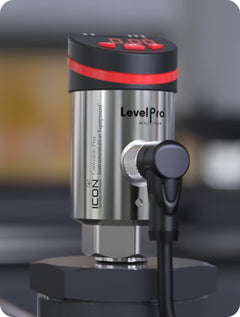

|  Icon LPS50i Digital Pressure Transmitter and Switch with IO-Link$699.95 CAD

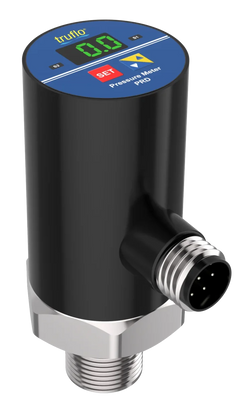

|  Icon PRD 3-Digit Pressure Meter with 2 Relay Outputs and 4-20mAfrom $699.95 CAD
|
|---|---|---|---|---|
| Max Pressure | 1.45 - 362.5 psi | 145 - 1450 psi | 14.5 - 232 psi | 145 - 435 psi |
| Accuracy | ±0.5 % of range | ±1 % FS | ±0.5 % FS | ±1 % FS |
| Output | 4-20mA / IO-Link / RS485 | 4-20mA + 2 relays | 4-20mA / IO-Link / PNP relay | 4-20mA + 2 relays |
