Features
• Ideal for High Purity commercial and industrial applications
• Accepts Single Open-Ended cartridges with 222 or 226 style connectors

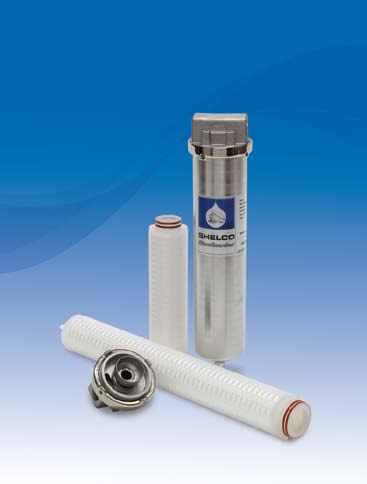

• Stainless Steel Filters feature heavy duty 316L stainless steel construction for maximum durability
• Maximum operating pressure is 300 PSI (20 bar) @ 200°F (93°C)
• Quick-locking ring nut closure for easy cartridge change outs
• Available in 3/4″ and 1″ connection sizes
• Wide variety of gasket options for compatibility with almost any industrial liquid
• In line fittings for easy installation (standard FNPT, flanged, sanitary (TC) or BSP connections)
• Includes mounting bracket kit and rod (for opening & closing)
Applications
• Water
• Chemicals
• Food & Beverage
• Electronics
• Inks / Paints / Coatings
• Coolants
• Pulp & Paper
Specifications & Operating Parameters
| Maximum Operating Pressure | 300 psig (20.7 bar) @ 200°F (93°C) |
| Connections | Inlet /Outlet: 3/4" or 1" FNPT Optional: BSPT, BSPP, RF Flanges, Sanitary Ferrules or Grooved Fittings Drain Port: 1/4" NPT Plug |
| Gaskets | Buna N Optional: EPR, Silicone, Viton |
| Materials of Construction | Head / Shell: RHS 316L SS |
| Custom Options | - Gauge Ports - Vent Port with Vent Screw See Ordering Guide for complete selection of options |
| Model | Cartridge Length | Maximum Flow Rate | Maximum Cartridge Diameter | Drain Size | Dimensions |
| CSF-78 | 1 (9 3/4-10") | 7 GPM (26.5 LPM) | 2 3/4" | 1/4" | 16 9/16" (42.1 cm) x 17 7/16" (44.3 cm) |
| CSF-80 | 1 (19 1/2 - 20") | 14 GPM (53 LPM) | 2 3/4" | 1/4" | 26 9/16" (67.5 cm) x 27 7/16" (69.7 cm) |
| CSF-90 | 1 (30") | 21GPM (79.5 LPM) | 2 3/4" | 1/4" | 26 9/16" (67.5 cm) x 37 7/16" (95.1 cm) |
* Based upon 7 gpm (26.5 lpm) per 10" cartridge length with a 25 micron wound cartridge at 2 PSID clean and a viscosity of 1 cps.
Flow rates are guidelines only. Actual flow rates are based upon fluid, viscosity, cartridge type, micron ratings and other factors
