Specifications

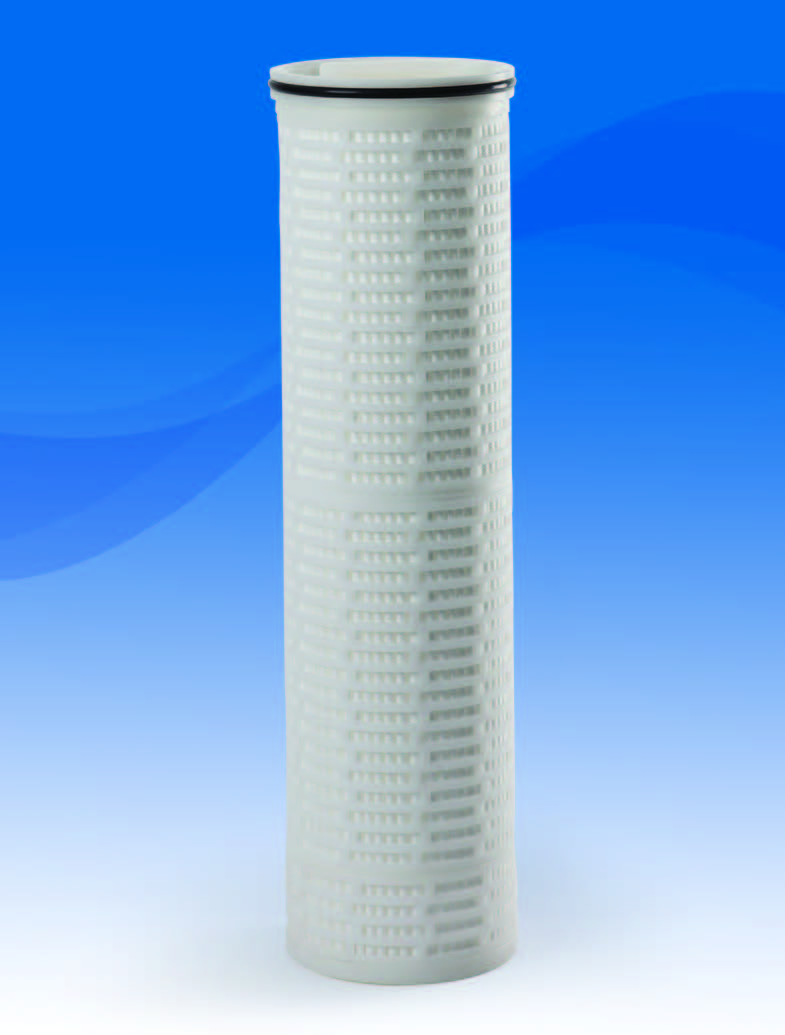

• High Flow Eco Cartridges are designed for residential, commercial and light industrial filtration at an economic price and an exceptional value
• All polypropylene construction 98% retention ratings from .5 to 70 microns
• Heavy duty outer cage replaces costly stainless steel support basket.
• Handle provides fast and easy push / pull installation
• O-ring seal on cartridge eliminates bypass
• Inside out flow retains contaminant during change out
• Pleated media designed for high flow and long service life
• Thermally bonded construction
• FDA listed materials – All materials comply with FDA Title 21 of the Code of Federal Regulations Sections 174.5 and 177.1520, as applicable for food and beverage contact
Applications
• Water
• Desalination
• RO Systems
• Food & Beverage
• Chemicals
• Coolants
• Electronics
• Power
• Sea Water
• Waste Water
| Pore Sizes | 0.5, 1, 5, 10, 20, 50, 70 micron |
| Nominal Lengths | 23” (58.4 cm) |
| Outside Diameter | 6” (15.2cm) |
| Surface Area | 25 ft² (2.32 m²) |
| Materials of Construction | Filter Media: Polypropylene End Caps: Polypropylene Cage: Polypropylene Gaskets: EPDM standard Optional: Buna-N, Viton, Silicone |
| Operating Parameters | Maximum operating Temperature: 140°F @ 20 psid (60°C @ 1.4 bar) |
| Recommended Change-out Differential Pressure | Differential Pressure: 15 psid (1.0 bar) |
| FDA and USP Compliance | MEE products are manufactured of materials with no additivesor other manufacturing agents. All materials used in theproduction of these cartridges meet the requirements of FDA Title 21 of The Code of Federal Regulations. |
Documents
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
Related equipment we stock
FLOW-MAX Pleated Synthetic Cartridge
2.75" x 20"
MicroVantage™ MAS-P Series - PES Membrane – Pharmaceutical Grade

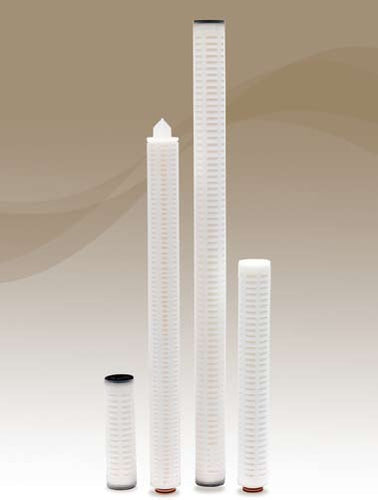

MicroVantage™ MPA Series
