Specifications

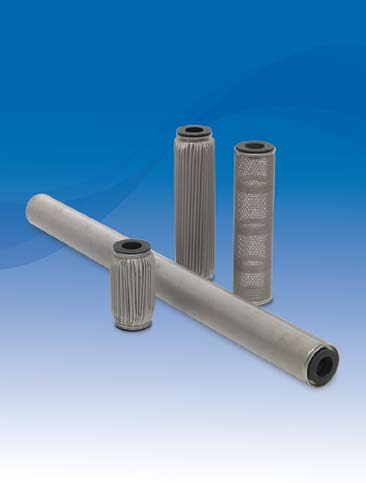

• 304L or 316L stainless steel filter media with welded cartridge construction for highest mechanical strength
• Available in a cylindrical or pleated filter configuration for longer life and greater dirt holding capacity
• Suitable for temperatures greater than 500ºF and differential pressures up to 60 PSID
• Cleanable and reusable cartridge
• Available in 5 to 840 microns for uses from precise filtration to straining
Applications
• High Temperature
• High Differential Pressures
• Viscous Fluids
• Corrosive Liquids and Gases
• Caustic Fluids
• Plating Solutions
• Straining
• Hydraulic Oils
• Petrochemicals
• Photo Solutions
• Magnetic Coatings
• Process Water
• Wastewater
• Wastewater
| Pore Sizes | 2, 5, 10, 20, 40, 75, 100, 120,150, 190, 230, 280, 370, 540, 840 microns |
| Nominal Lengths | 4 7/8", 9 3/4", 9 7/8", 10", 19 1/2", 20", 29 1/4", 30", 40" |
| Outside Diameter | 2 1/2" (Cylindrical), 2 5/8" (Pleated) |
| Inside Diameter | 1 1/16" |
| Gaskets/O-rings | Buna, EPR, Teflon, Viton |
| Materials of Construction | 304L or 316L Stainless Steel |
| Maximum Operating Temperature | 500˚F (260˚C) |
| Maximum Change-out Differential Pressure | 60 psid (4.2 bar) |
| End Cap Configurations | DOE, 222/flat, 226/flat, 1" MNPT, 1" FNPT |
| Options | Pleat protector to prevent denting and damage to surface Heavy duty core (300 psi) |
