Features

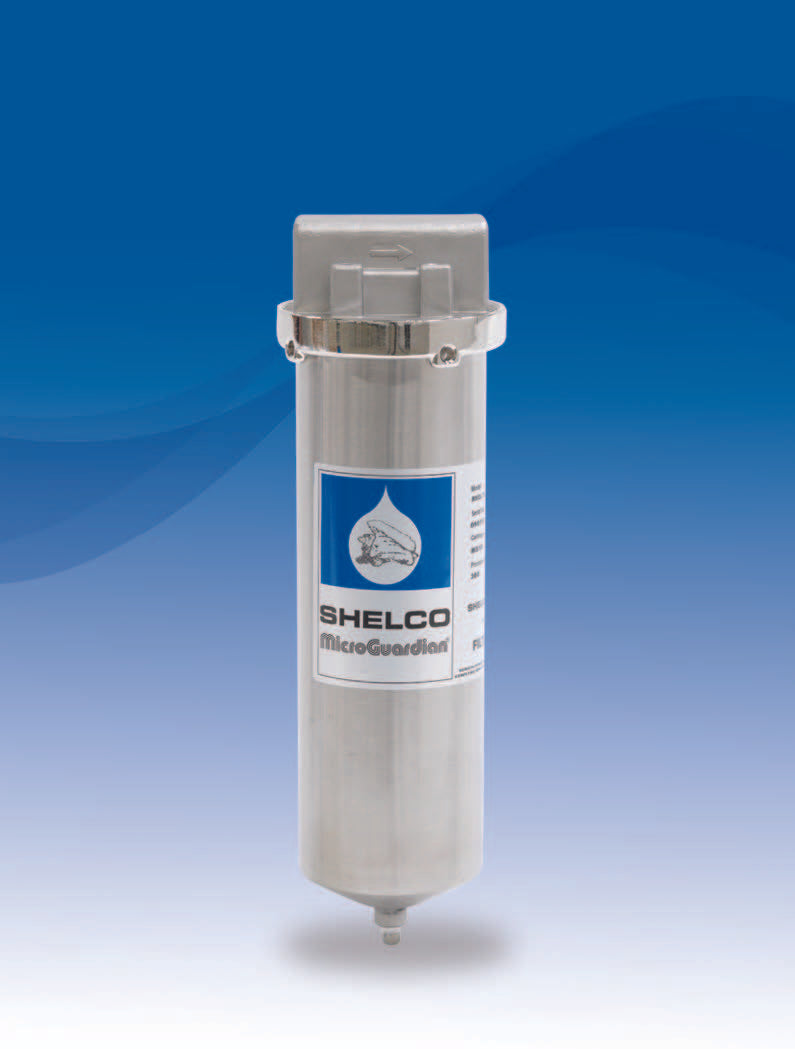

• Heavy duty filter housing constructed of 304L, 316L stainless steel or brass head with a 304L stainless steel body for high durability
• Maximum operating pressure is 300 PSI (20 bar) @ 200°F (93°C)
• Quick-locking ring nut closure for easy cartridge change outs
• Available in 1/2″, 3/4″, and 1″ connection sizes
• Wide variety of gasket options available for compatibility with almost any industrial liquid
• Designed for commercial and industrial filtration applications
• In line fittings for easy installation (standard FNPT, flanged, sanitary (TC) or BSP connections)
• Knife edge seal provides positive sealing of double-open-ended cartridges
• Includes mounting bracket kit and rod (for opening & closing)
Applications
• Water
• Chemicals
• Food & Beverage
• Electronics
• Inks / Paints / Coatings
• Coolants
• & Paper
Specifications & Operating Parameters
| Maximum Operating Pressure | 300 psig (20.7 bar) @ 200°F (93°C) |
| Connections | Inlet /Outlet: 1/2", 3/4" or 1" FNPT Optional: BSPT, BSPP, Sanitary Ferrules Drain: RHS - 1/4" NPT Plug RHB - 1/4" NPT Petcock |
| Gaskets | Buna N (FDA Grade) Optional: EPR, Silicone, Viton |
| Materials of Construction | Head / Shell: RHS 316L SS / 316L SS RHB Brass / 304L Stainless Steel Drain: RHS - 316L SS Plug RHB - Brass Petcock Ring: RHS -Nickel Plated Brass RHB - Brass |
| Cartridge Type | DOE and SOE 213 Internal O-ring |
| Custom Options | - Gauge Ports - Vent Port with Vent Screw See Ordering Guide for complete selection of options |
* Based upon 7 gpm (26.5 lpm) per 10" cartridge length with a 25 micron wound cartridge at 2 PSID clean and a viscosity of 1 cps.
Flow rates are guidelines only. Actual flow rates are based upon fluid, viscosity, cartridge type, micron ratings and other factors
