How the WaterPod™ 500 Works

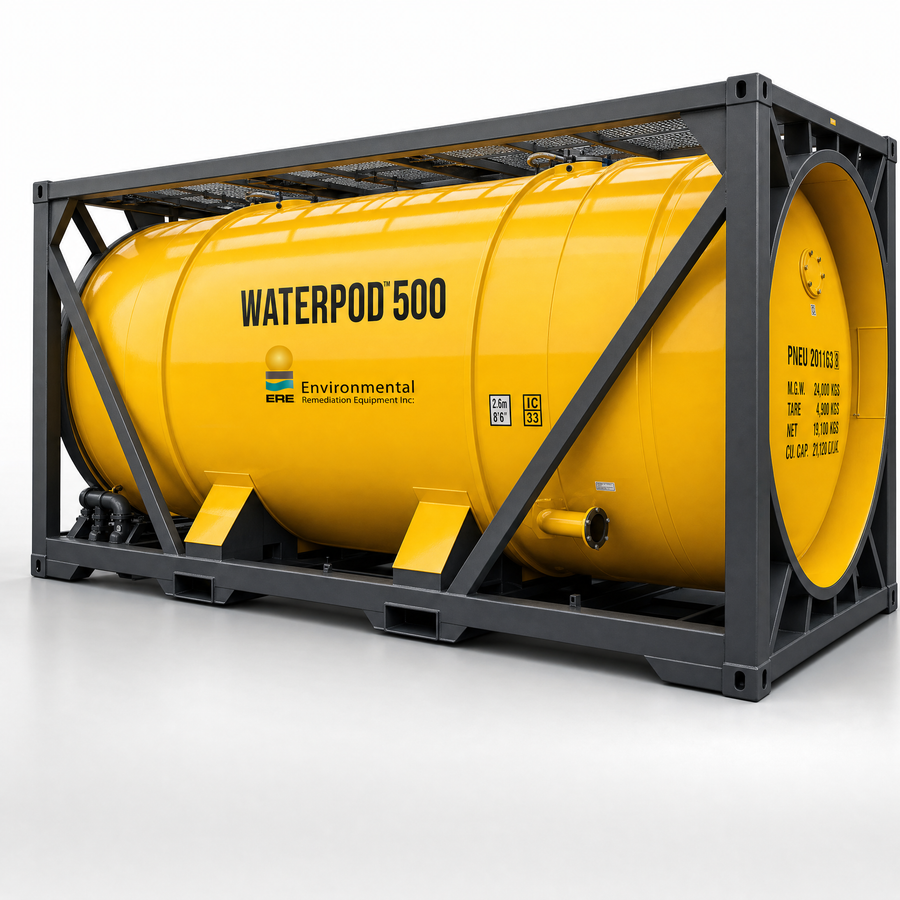

The WaterPod™ 500 houses a carbon-steel pressure vessel inside a standard 20 ft ISO frame. Contaminated water enters through inlet connections and flows through packed media beds — granular activated carbon, multi-media filters, or specialty adsorbents — configured for the site's specific contaminant profile. Treated water discharges to spec, helping meet regulatory limits.
Engineered for continuous 24/7 duty at flows up to 500 GPM, the system pairs high treatment capacity with full mobility. Top access hatches allow inspection and media changeout; inlet, outlet, and drain connections adapt to site requirements.
Key Specifications
| Nominal Flow Rate | 500 GPM (113 m³/h) |
| Max Media Capacity | 600 ft³ (17 m³) |
| EBCT (Contact Time) | Varies based on media and flow rate |
| Dimensions | 20' L × 8' W × 8'6" H (6096 × 2438 × 2591 mm) |
| Empty Weight | ≈ 8,400 lb (3,810 kg) |
| Operating Weight (media & water) | ≈ 40,000 lb (18,140 kg) |
Built For The Field
- Effective treatment — removes a wide range of contaminants
- Rugged design — built for the most demanding conditions
- Fast deployment — ready to install on your site
- Environmentally friendly — helps meet discharge regulations
- Easy access — top hatches for inspection and media replacement
- Versatile connections — inlet, outlet, and drains adapt to your requirements
- Custom media options — wide selection tailored to target your specific contaminants
Applications
- Construction dewatering
- Hydrocarbon-contaminated water
- Industrial process water
- Environmental remediation
- Leachate and runoff treatment
Related equipment we stock
WaterBox™ 100 — 30 FT Mobile Water Treatment System
Flow: up to 200 GPM parallel / 100 GPM series | Tanks: (4) 61" FRP Type 60 | Housings: (2) 4-bag SS | Container: 30 ft marine-grade insulated
OlioSep™ DNAPL 3-Phase Separator
Models: 16 / 24 / 50 GPM | Construction: 304 SS (316 optional) | DNAPL: conical hopper bottom | Media: hexagonal coalescer
AirPod™ 5000 — Air Filter (5000 CFM)
Capacity: 5000 CFM | Construction: 316 stainless steel | Vessel: tall cylindrical, large media bed | Condition: new

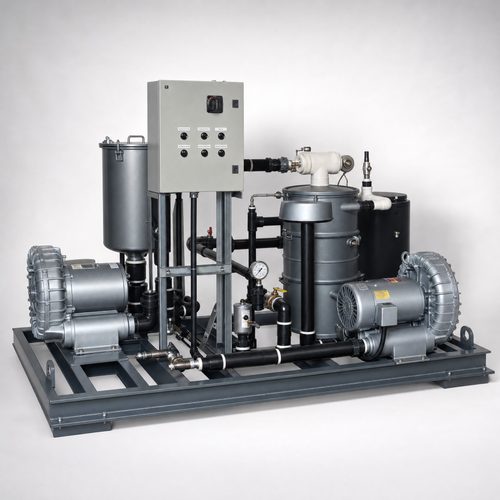

EvacuSol™ 10 HP — Soil Treatment System
