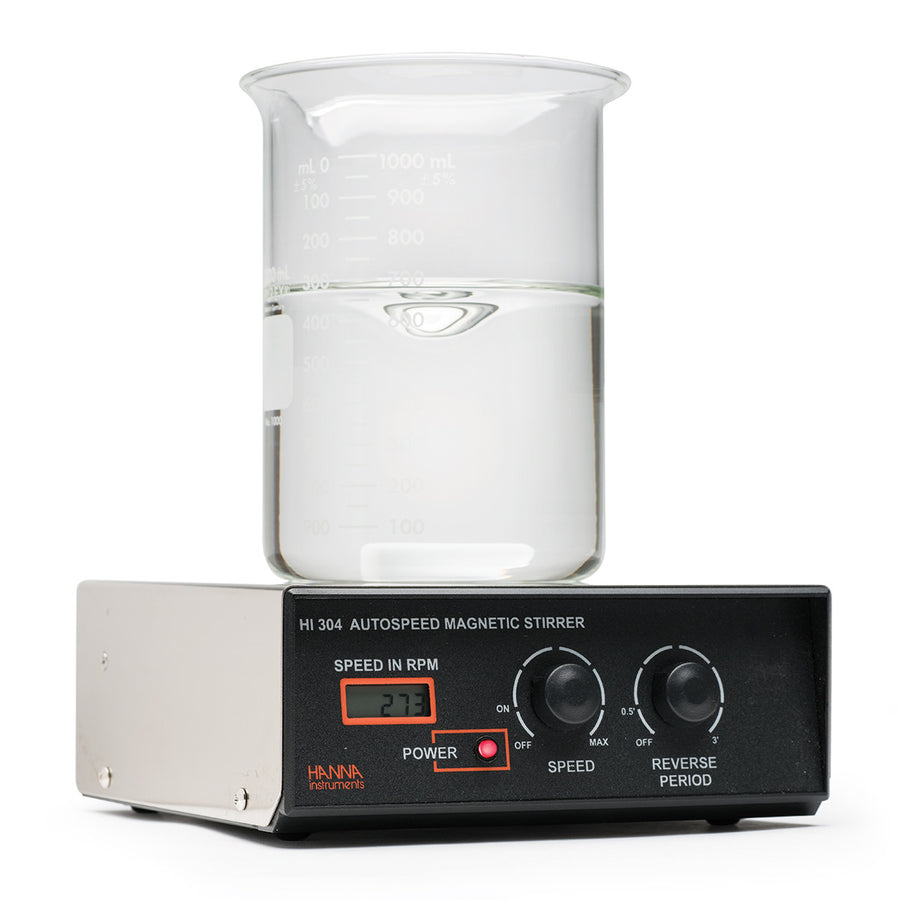

When stirring a solution, to work with a constant speed (Revolutions Per Minute) is an important factor in ensuring that the best repeatability in tests and processes is achieved. Without a tachometer, there is no way of knowing the RPM’s. HA-304N is a heavy-duty stirrer with a built-in tachometer. It is often desirable to stir in two directions in order to achieve maximum homogeneity. An advanced circuit allows HA-304N to reverse the direction of the stir at a user selected interval. The interval can be adjusted from 30 seconds up to 3 minutes. In addition to precision speed control, a limiter will also assure that the maximum speed will never be exceeded (Speedsafe).

Specifications

• 2.5 L Maximum Stirring Capacity
• Speed Range: Low 100 rpm / High 800 to 1000 rpm
• 4-Digit LCD Tachometer
• Reverse Interval: From 30 seconds to 3 minutes
• II Installation Category
• AISI 316 Stainless Steel Cover Material
• 0 to 50°C (32 to 122°F); RH max 95%
• 180 mm x 180 mm x 70 mm (7.1″ x 7.1″ x 2.8″)
• 1.4 kg (3.1 lbs)

Model Item Quantity Unit Price Line Total
100/115 V AC - Auto-Reverse Magnetic Stirrers with Tachometer
$ 0.00
220/240 V AC - Auto-Reverse Magnetic Stirrers with Tachometer
$ 0.00
$ 0.00
