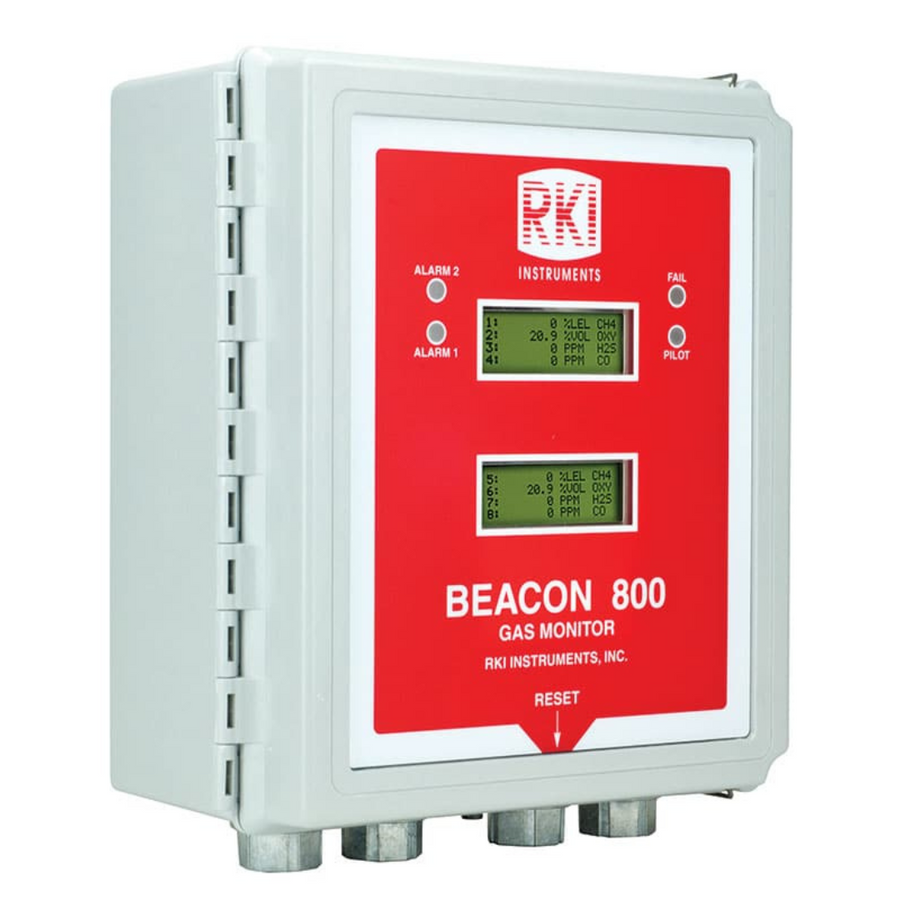

BEACON™ 800

Wall Mount Controller

Applications
Petrochemical plants, refineries, water & wastewater treatment plants, pulp & paper mills, gas, telephone, & electric utilities, parking garages, manufacturing facilities, steel, automotive, HVAC

Features

• Capable of up to 8 separate channels
• Digital display of all 8 channels simultaneously
• Compact, weatherproof, NEMA 4X enclosure
• 85 - 264 V AC or 24 V DC operation
• Long life sensors (2+ years typical)
• Accepts any 4 - 20 mA transmitter
• Audible alarm with reset button
• Two programmable alarm levels per channel
• Common alarm and fail relays
• Relay rating 3 amps, form C
• Low cost versatile solution
• Height: 12.5" (318 mm)
• Width: 11.0" (279 mm)
• Depth: 6.4" (163 mm)

Partial List Of Detectable Gases
Ammonia (NH30 - 75.0 ppm
Arsine (AsH3)0 - 0.20 ppm
Boron Trichloride (BCl30 - 15.0 ppm
Carbon Dioxide (CO20 - 1.0%
Carbon Monoxide (CO) 0 - 300 ppm
Chlorine (Cl20 - 3.0 ppm
Chlorine Dioxide (ClO20 - 1.00 ppm
Chlorine Trifluoride (ClF30 - 1.00 ppm
Combustibles 0 -100% LEL
Diborane (B2H60 - 30.0 ppm
Fluorine (F20 - 6.0 ppm
Hydrogen (H20 - 2,000 ppm
Hydrogen Chloride (HCl) 0 - 15.0 ppm
Hydrogen Fluoride (HF) 0 - 9.0 ppm
Hydrogen Sulfide (H2S) 0 - 100.0 ppm
Nitric Oxide (NO) 0 - 100.0 ppm
Nitrogen Dioxide (NO20 - 15.0 ppm
Nitrogen Trifluoride (NF30 - 30.0 ppm
Oxygen (O20 - 25.0%
Ozone (O30 - 1.0 ppm
Phosphine (PH30 - 1.0 ppm
Silane (SiH40 - 15.0 ppm
Sulfur Dioxide (SO20 - 30.0 ppm

Refer to detector assembly S-Series, M2 Series or call for more information.
Four channel wall mount controller BEACONTM 410 model also available.
