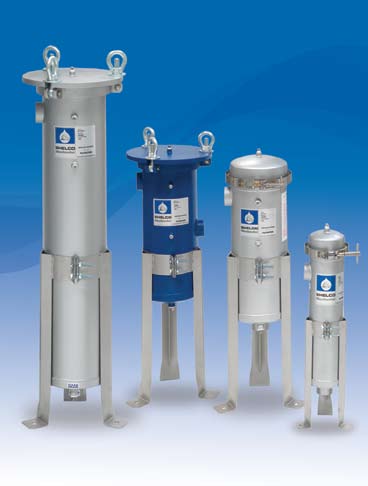

#1 and #2 sizes:
• 304L, 316L or Carbon Steel construction
• Band clamp or swing bolt lid closures
• Stainless steel compression spring
• Standard 2” FNPT side inlet and bottom outlet connections
• Adjustable stainless steel mounting legs
• Stainless steel basket with 9/64” perforations
#3 and #4 sizes:
• 316L Stainless Steel construction
• Clamp closures
• 1½” FNPT with side inlet and bottom outlet configuration
• Stainless steel basket with 9/64” perforations included
Applications
• Water
• Chemicals
• Food & Beverage
• Electronics
• Oil
• Inks / Paints / Coatings
• Coolants
• Pulp & Paper
| Maximum Operating Pressure | 150 psig (10.3 bar) @ 300ËšF (149ËšC) |
| Connections | Inlet /Outlet: 2"" FNPT (#1 and #2 Sizes) 3/4"", 1"" and 1 1/2"" FNPT (#3 and #4 Sizes) Optional: RF Flanges or Sanitary Ferrules Drain Port: 1/2"" FNPT (#1 and #2 Sizes) Gauge Ports: 1/4"" FNPT - clean and dirty sides (#1 and #2 sizes) Vent Port: 1/4"" NPT Plug |
| Materials of Construction | Head / Shell: #1 and #2 Sizes 316L Stainless Steel, 304L Stainless Steel, Carbon Steel #3 and #4 Sizes 316L Stainless Steel Eye Nuts: Zinc plated steel Mounting Legs: 304L Stainless Steel |
| Gaskets | Buna N Optional: EPR, Silicone, Teflon Encapsulated Silicone, Viton |
| Baskets | 1/8"" perforated stainless steel Options: various perforation and mesh sizes |
| Options | - Side Inlet / Side Outlet (#1 and #2 sizes) - 134 epoxy coating for seawater and corrosive applications See ordering guide for complete selection of options |
