Analytic Chemistry Applications: High Performance Liquid Chromatography (HPLC), Inductively Coupled Plasma Mass Spectrometry (ICP-MS), Trace Organics, Electrochemistry
Effluent Water
• Resistivity: 18.2 MΩ-cm
• Flow Rate: up to 2.5 LPM
• Bacteria: < 1 CFU/ml
• Endotoxin: Series 5300 & 5400 only
• Particulates: < 0.2 µm
• TOC: < 5 ppb
• RNase: Series 5300 & 5400 only
• DNase: Series 5300 & 5400 only
Features
• Real-time water quality monitoring

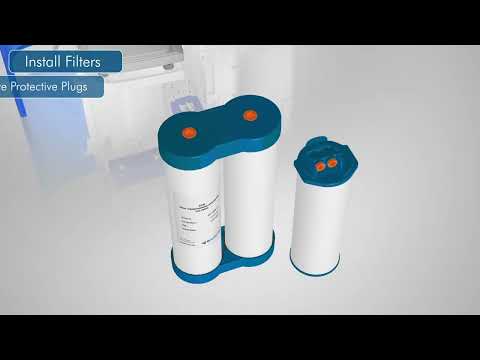

• Self-service consumables
• Flexible mounting options*
+ UV oxidation
+ TOC Monitoring (optional)
*Remote dispense option allows you to position your system on a wall or under sink
| Part Number | Description |

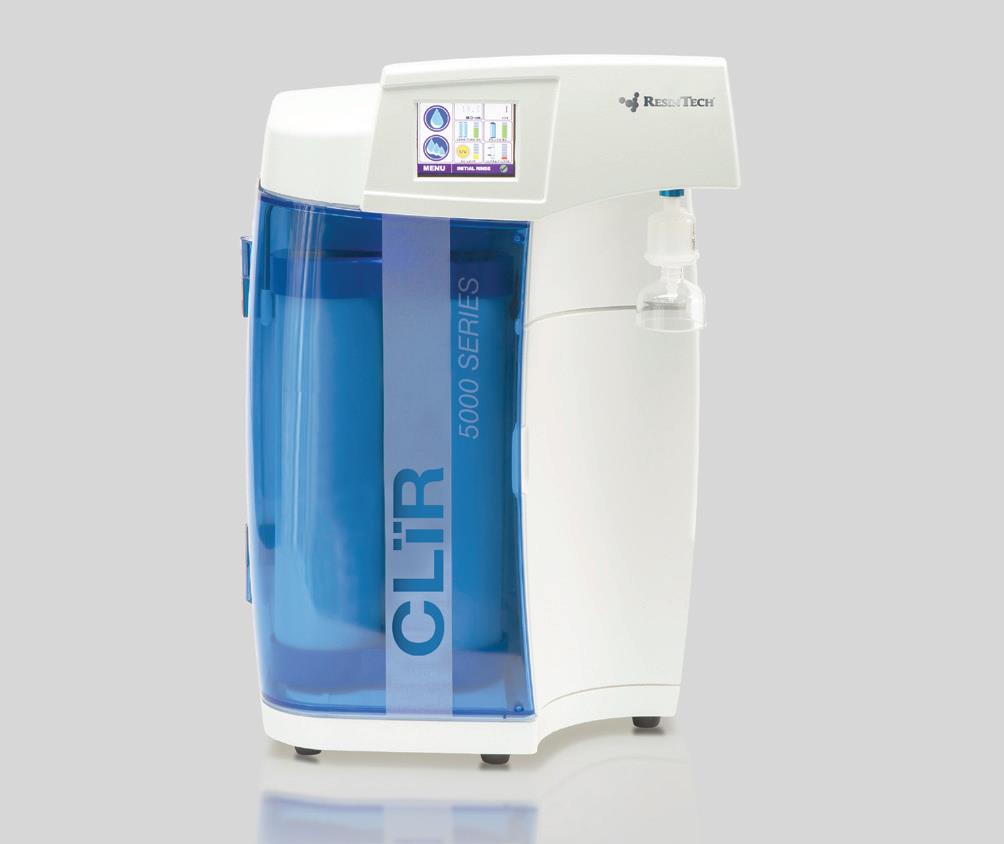

| RT-CLS-5200-S-1 | Benchtop Base System With UV Oxidation Lamp Installed, 120V/60Hz |
| RT-CLS-5200-S-2 | Benchtop Base System With UV Oxidation Lamp Installed, 220V/50Hz |
| RT-CLS-5200-R-1 | Remote Dispense Configuration With UV Oxidation Lamp, 120/60Hz |
| RT-CLS-5200-R-2 | Remote Dispense Configuration With UV Oxidation Lamp, 220/50Hz |
| RT-CLS-5200-S-1-TOC | Benchtop Base System, 120V/60Hz With UV And TOC Monitoring |
| RT-CLS-5200-S-2-TOC | Benchtop Base System, 220V/50Hz With UV And TOC Monitoring |
| RT-CLS-5200-R-1-TOC | Remote Dispense Configuration Base System, 120V/60Hz With UV And TOC Monitoring |
| RT-CLS-5200-R-2-TOC | Remote Dispense Configuration Base System, 220V/50Hz With UV And TOC Monitoring |
