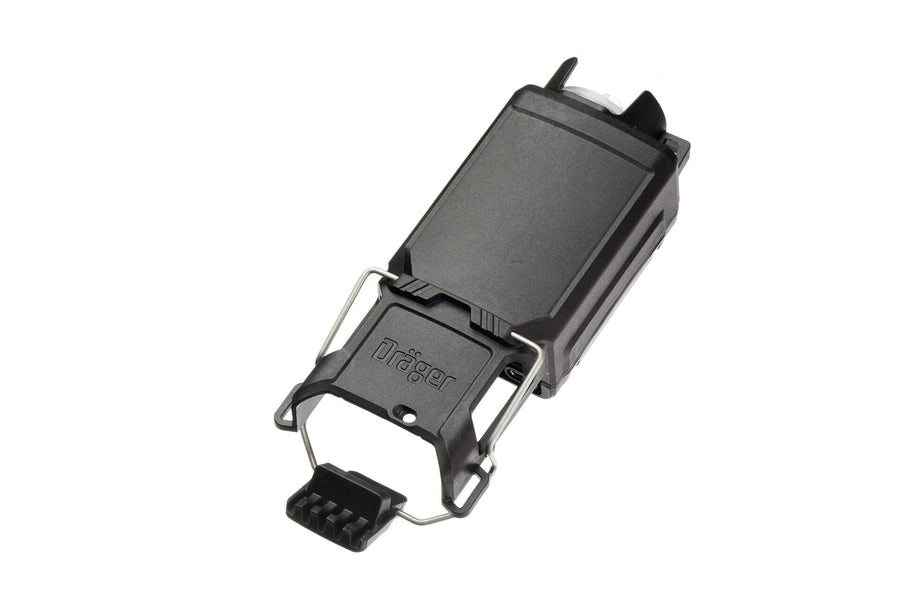

The Dräger X-am Pump is an external pump for the X-am 2500, 2800, 5000, 5600 and 5800 multi gas detectors. It clips onto the detector, starts by itself when connected to a running X-am, and draws samples through up to 147 ft (45 m) of hose for clearance measurement before confined space entry.
- Fits the Dräger X-am 2500, 2800, 5000, 5600 and 5800 multi gas detectors
- Clips onto the detector and switches on automatically when connected to a running X-am; no buttons
- Samples through hoses of 3 or 5 mm diameter, up to 147 ft (45 m) long
- Pump run time, charge status, battery warning and flow alarm show on the X-am and are stored in its data logger
- Up to 20 hours of operation on its own rechargeable battery, independent of the X-am
- Charges through a micro USB port in under 6 hours
- IP67 dust and water protection; Ex zone 0 approval
- Water and dust filter protects the pump
The pump has a Li-ion battery and ships as dangerous goods (UN3481). Request a quote for pricing and availability.
Specifications
- Compatible Detectors
- Dräger X-am 2500 / 2800 / 5000 / 5600 / 5800
- Air Flow Volume
- 0.4 L/min
- Maximum Hose Length
- 147 ft (45 m)
- Hose Connection
- 3 mm or 5 mm diameter hoses
- Operating Time
- Up to 20 hours, depending on application and temperature
- Charging
- Micro USB, under 6 hours, at 0 to 35 °C
- Operating Temperature
- -20 to 50 °C (briefly -40 °C)
- Storage Temperature
- -20 to 45 °C (up to 1 month -20 to 60 °C)
- Pressure
- 700 to 1,300 hPa
- Humidity
- 0 to 95 % RH
- Dimensions
- 67 x 175 x 38 mm without X-am / 67 x 220 x 55 mm with X-am
- Weight
- Approx. 200 g (7 oz)
- Ingress Protection
- IP67
- Approvals
- cCSAus / ATEX / IECEx (Zone 0 T4 and M1) / DNV-GL / CE
Documents
Questions, answered
How fast will I get a price?
Send the quote request and a specialist replies within 4 business hours, Monday to Friday, 8:00 to 4:30 ET.
Can we pay on account or by purchase order?
Yes. With established credit, terms are Net 30 days, and you can send your purchase order with the quote request. We also accept Visa, Mastercard and American Express.
How is shipping charged?
On quotes and account orders, freight is F.O.B. Montréal: the carrier charge is worked out at shipment from the packed weight and dimensions, and added to your invoice. In-stock items can also be picked up the same day in Montréal (8605 rue du Champ-d'Eau).
Can I return it?
Yes, within 30 days of purchase, with a return authorization number from customer service first. A 25% restocking fee applies, unless it is a defect covered by the warranty. Special orders, hazardous materials, flammable liquids and gases can't be returned. Return policy
What warranty does it carry?
The manufacturer's warranty applies. The exact terms are in the warranty document. Read the warranty
