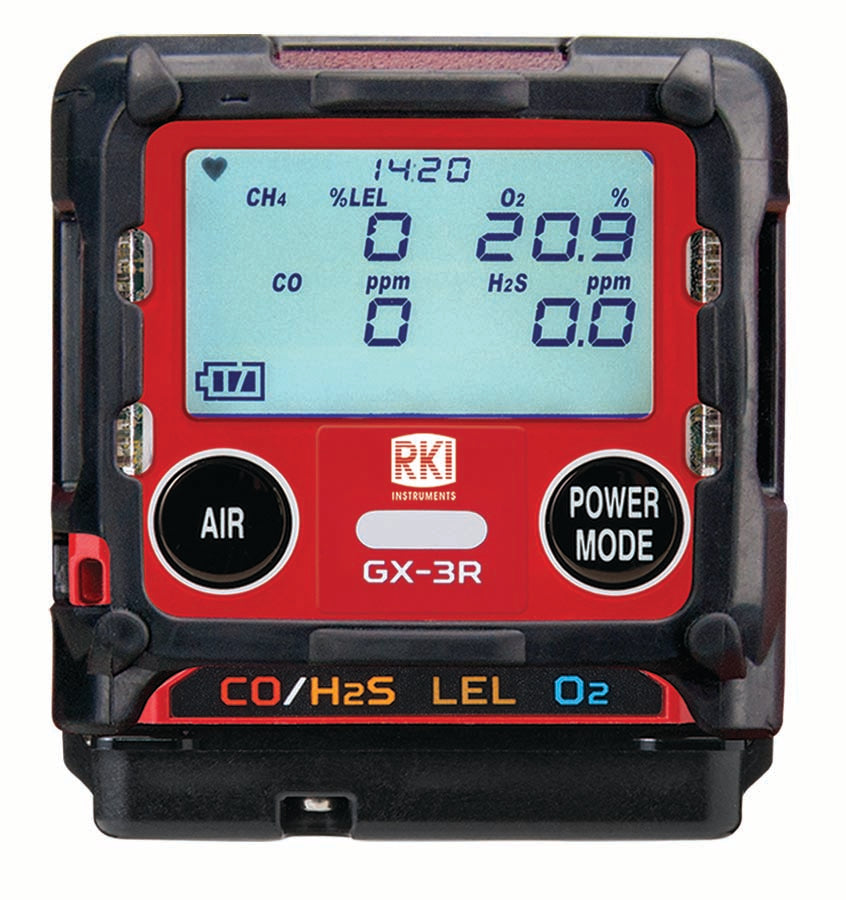

The GX-3R simultaneously monitors and displays LEL combustibles, O2, CO (H2 compensated CO also available) and H2S. The LEL sensor has a unique design with two active filaments in one sensor to increase its resistance to silicone poisoning. If one filament gets poisoned the second filament takes over.
Applications
• Personal monitoring
• Confined spaces
• Refineries / petrochemical
• Oil & gas
• Utilities
• Hazardous material
• Water/waste water treatment
• Fire services
• Construction
Features
• Simultaneous detection of 4 gases: LEL, O2, H2S & CO (H2 Compensated CO sensor available)
• Simple 2-button operation
• 3 user adjustable alarm levels
• Audible, visual & vibration alarms
• Non-compliance indicator
• Large LCD Auto-backlit display
• Field replaceable sensors & filters
• Impact resistant body with removable rubber boot
• Water and dust resistant design, IP66/68
Kit Includes
• GX-3R monitor
• Wrist strap
• Alligator clip
• Rubber boot
• Calibration adapter
• Li-Ion battery pack
• 100-240 VAC charger
*Other configurations are also available
*Optional RP-3R clip-on sample drawing pump also available.
| Model | GX-3R | |||||
| Gas Detected | Carbon Monoxide (CO) H2 Compensated | Carbon Monoxide (CO) | Hydrogen Sulfide (H2S) | Hydrogen Sulfide (H2S) Only | Combustible Gases (Methane (CH4) as standard | Oxygen (O2) |
Dual Sensor | ||||||
| Sensor Slot | 1 | 2 | 3 | |||
| Detection Principal | Electrochemical Cell | Dual Electrochemical Cell | Electrochemical Cell | Catalytic Combustion | Electrochemical Cell | |
| Detection Range (Increments) | 0 ~ 2,000 ppm (1 ppm) | • 0 ~ 2,000 ppm CO (1 ppm) • 0 ~ 200.0 ppm H2S (0.1 ppm) | 0 ~ 200.0 ppm H2S (0.1 ppm) | 0 ~ 100% LEL (1% LEL) | 0 ~ 40.0% Vol. (0.1% Vol.) | |
Accuracy (Whichever is greater) | ± 5% of reading or ± 2 ppm CO | • ± 5% of reading or ± 5 ppm CO • ± 5% of reading or ± 2 ppm H2S | ± 5% of reading or ± 2 ppm H2S | ± 5% of reading or ± 2% LEL | ± 5% CO2 | |
| Power Source | Li-Ion battery pack | |||||
| Sampling Method | Diffusion sampling standard / hand aspirator or motorized pump optional | |||||
| Operating Temp. & Humidity | -20°C ~ +50°C [ -4°F ~ +122°F ], 10 to 90% RH, non-condensing (continuous environment) | |||||
| Safety Rating | ATEX, CSA (Pending) | |||||
| Part Number | Model |
| RK-72-RA-C | GX-3R 4-Gas Personal Monitor For LEL/O2/Combo H2S & CO With Li-Ion Battery Pack & 100-240 VAC Charger |
| Accessories & Calibration Equipment | |
| Part Number | Description |
| RK-81-SDM3R101 | SDM-3R Calibration Station With 1 Solenoid, AC Adapter, Flash Drive, USB Cable & Tubing |
| NLB-Z105325PM51 | Calibration Gas 25 PPM H2S / 50 PPM CO / 2.5% CH4 (50% LEL) / 12% O2 In N2, 58 Liter Aluminum Cylinder With CGA C-10 |
| NLB-513 | 0.25 LPM Regulator With Gauge & Knob For Cylinders With CGA C-10 |
| RK-06-1248RK-03 | 3/16" O.D. x 5/16" I.D. Polyurethane Calibration Tubing, 3 ft |
| NLB-505 | Case For 58 / 103 / 116 Liter Aluminum Cylinders, Holds 2 Cylinders |
| PC-915-1001 | Black NANUK™ Case 915 With Cubed Foam (Other Colors Available Upon Request) |
