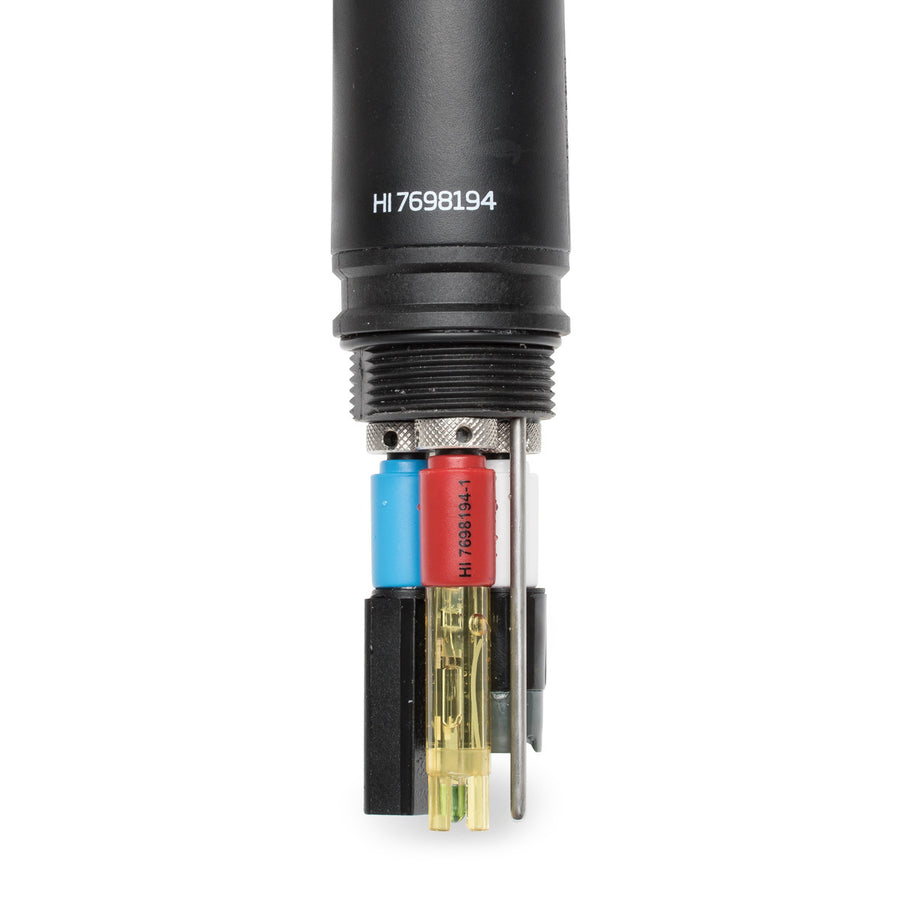

Replacement multiparameter probe and color-coded spare sensors for the Hanna HI98194, HI98195 and HI98196 meters: the HI7698194 probe body with 4, 10 or 20 m cable, the pH/ORP, galvanic dissolved oxygen and 4-ring conductivity sensors, plus the probe maintenance kit and the meter casing.
- HI7698194 digital probe: quick connect DIN connector makes a waterproof connection with the meter
- Three sensor ports; the probe and meter recognize the connected sensors automatically
- HI7698194-1 pH/ORP sensor: glass pH bulb, platinum ORP pin, double junction Ag/AgCl reference in gel
- HI7698194-2 galvanic dissolved oxygen sensor with screw-on HDPE membrane caps and no warm-up time
- HI7698194-3 4-ring conductivity sensor with AISI 316 stainless steel electrodes
- IP68 probe for fresh, brackish and seawater, maximum depth 20 m
- Sensors are field replaceable and color coded for the right port
Probes ship without sensors. Request a quote for pricing and availability.
Specifications
- Compatible Meters
- HI98194 (probe HI7698194); sensors also fit the HI98195 and HI98196 probes
- Sensor Ports
- 3 on HI7698194 (2 on HI7698195 and HI7698196)
- Sample Environment
- Fresh, brackish, seawater
- Probe Protection / Depth
- IP68 / 20 m
- Operating / Storage Temperature
- -5 to 55 °C / -20 to 70 °C
- Probe Dimensions / Weight
- 342 mm long, 46 mm diameter / 570 g with sensors
- Cable
- Multistrand shielded cable with strength member rated 68 kg intermittent; 4, 10 or 20 m
- Wetted Materials
- ABS body, nylon threads, ABS/316 SS shield, 316 SS temperature probe, EPDM O-rings
- pH/ORP Sensor HI7698194-1
- Glass pH tip, platinum ORP pin, double ceramic junction, gel electrolyte; store in HI70300
- DO Sensor HI7698194-2
- Galvanic, Ag cathode / Zn anode, HDPE membrane; fill with HI7042S electrolyte
- EC Sensor HI7698194-3
- 4-ring, AISI 316 stainless steel electrodes
- Probe Maintenance Kit HI76981952
- Small brush, hex key, 5 O-rings, silicone grease sachet, syringe
- Warranty
- Probes and sensors 6 months
Documents
Parts & accessories
-
Price on quote
-
Price on quote
-
Price on quote
-
Price on quote
