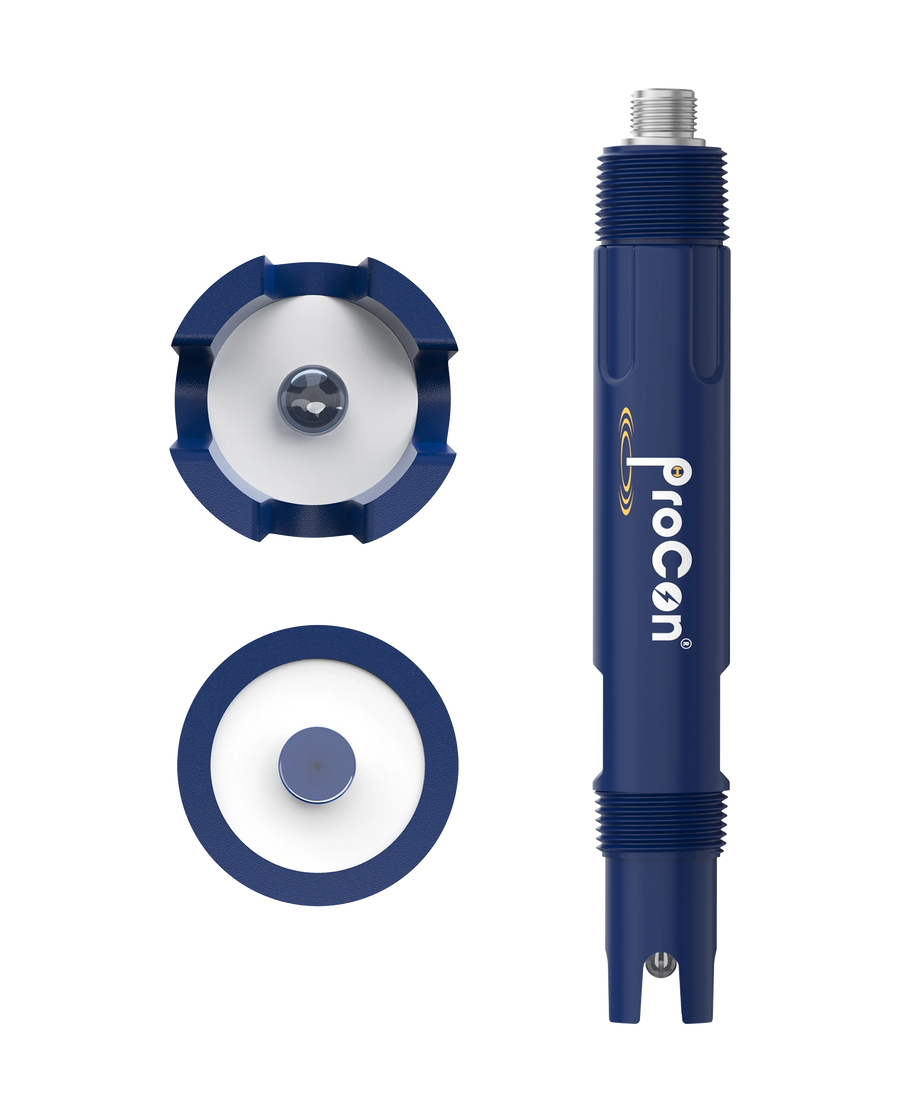

The P14F is a pH sensor transmitter for hydrofluoric acid applications above 4000 ppm HF. It has an HF-resistant antimony measuring electrode and a PTFE Teflon Nexus double junction that resists reference poisoning. It is offered with flat or bulb electrodes.
- PTFE Teflon Nexus double-junction design to resist reference poisoning
- Outputs: 4-wire for ProCon controllers, 2-wire 4-20mA, 4-20mA + RS485 or IO-Link adapter
- Polypropylene body with 3/4 in NPT connection
- Temperature compensated, no preamp required
- Choice of flat or bulb electrode
Ryton (R) body version and flying-lead connection are available on request. Contact us to order.
