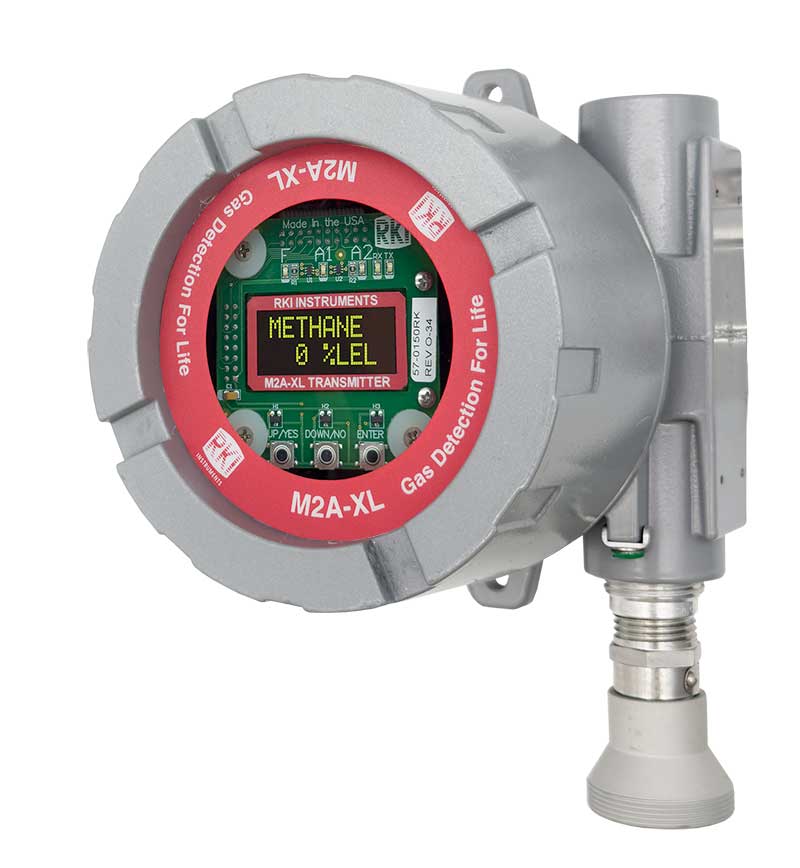

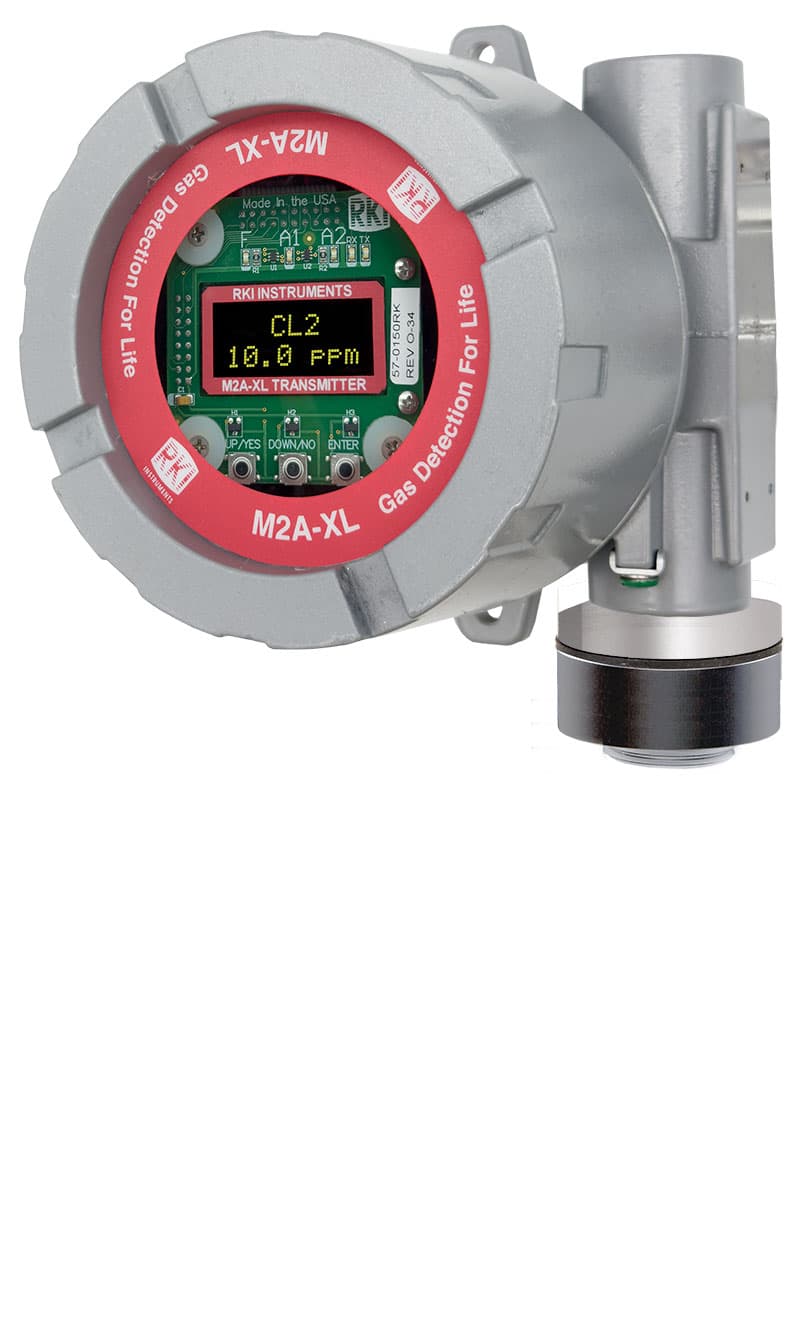

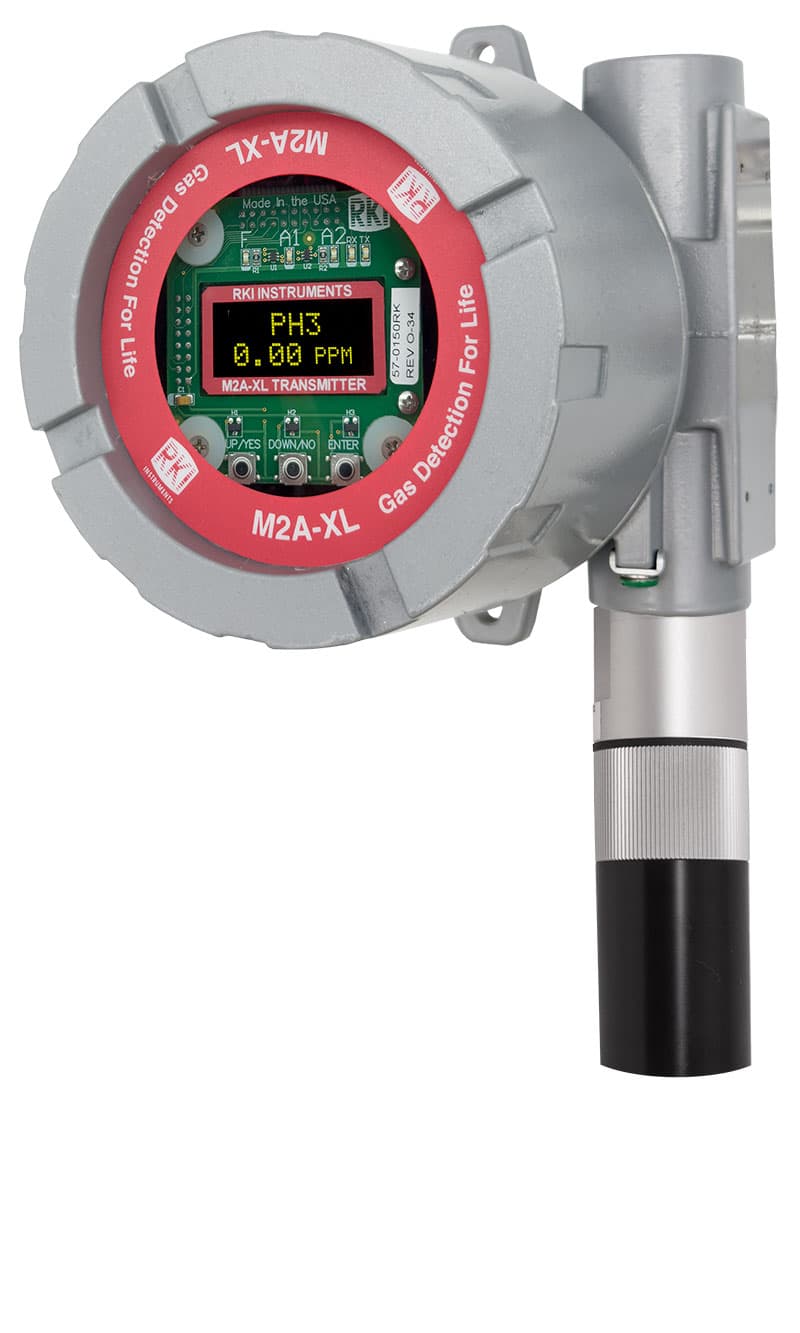

M2A-XL Stand Alone Transmitter

Name: M2A-XL Stand Alone Transmitter
Brand: RKI INSTRUMENTS
Availability: OutOfStock

SKU:

Brief Description:

The M2A-XL is a state-of-the-art transmitter that can operate as an independent, stand-alone monitor or as part of an integrated system. The M2A-XL connects with an analog or digital signal to virtually any controller, PLC, or DCS. Setup procedures are simplified with user friendly push buttons and OLED menus. It utilizes a magnetic wand technique for performing non-intrusive calibration. The M2A-XL provides an automatic zero drift correction feature, which results in more stable readings and reduces the need for adjustments due to sensor aging.

Quantity:

- +

Add to Wishlist

Quantity must be 1 or more

View Quote

The housing of the M2A-XL does not need to be opened for zeroing or calibration, making it unnecessary to declassify the area for routine maintenance. It is designed so that a complete field calibration can be performed by one person. Sensor construction is rated Class I, Div. 1 Groups B, C, D for flammables, CO, H2S, O2, and CO2, and Class I, Div. 2 for all other toxics.

The transmitter provides a 4-20 mA output in addition to a Modbus digital output. It also has two levels of alarms with relays, plus a fail alarm with relay. A digital display of the gas concentration, as well as alarm and status lights, can be viewed through the front window.

The toxic sensors are electrochemical type plug-in sensors, which provide high specificity, fast response, and long life. The plug-in design allows quick replacement in the field with no tools required. Toxic sensors are designed for use in Class I, Div. 2 hazardous locations. Sensors available for NH3, AsH3, Cl2, ClO2, HCN, PH3, NO2 and SO2.

Features
• Operates with or without a controller
• Direct digital readout with OLED cold temperature display
• Available gases include
• LEL, O2, H2S, CO, CO2, and 100% Vol CH4
• Toxic gases include NH3, AsH3, Cl2, ClO2, HCN, NO2, & SO2
• Infrared sensor for combustibles and CO2
• 4-20 mA & digital Modbus outputs standard
• 2 fully programmable alarm relays & fail relay
• Non-intrusive calibration via magnetic wand
• Explosion proof construction
• Patented water repellent sensor cover
• User friendly setup, push buttons & OLED menus
• Long-life sensors (2 + years typical)
