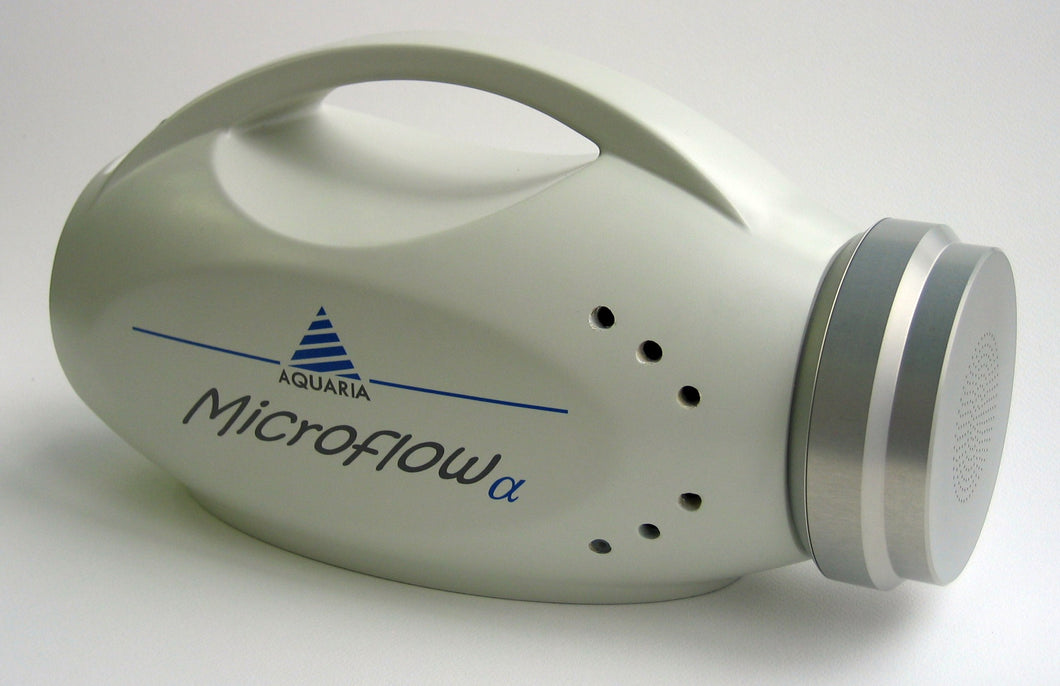

This instrument has been developed for airborne biological contaminants sampling in order to access the level of biocontamination in critical places (ex: clean rooms, operating rooms, pharmaceutical production plants, food and cosmetic industries, water purification plants, landfills, etc.) and in normal working life situations and not (air conditioning and ventilation controls).
Features
• Flow rate: 30 - 60 - 90 - 100 - 120 LPM
• NiMH rechargeable battery, without memory effect
• Silent microprocessor controlled fan to ensure maximum reliability on the sampled air volume
• Compensation airflow system (in compensated models)
• Low battery control and alarm
• Prompts in 5 languages: English, French, German, Spanish, Italian & functions are "step-by-step" visualized
• Delay start
•Total volume of sampled air programmable from 1 up to 2000 L, with 1 L steps
•Manual sampling for air volumes greater than 2000 L
• Sequential sampling also as required by ISPESL guidelines
• Storing and displayed up to 99 samplings, with record of progressive n number, date, hour, sampling volume or time, flow rate, type of sampling (manual, sequential, programmable)
• USB port to download data to a PC (optional)
• Calibration control function (with optional calibration kit)
• Remote switch with infra-red rays control
• Vertical or horizontal sampling (90° and 180°)
• Prepared for mounting on photographic tripod
Applications
• Clean rooms
• Hospitals
• Pharmaceutical industries
• Food and dairy industries
• Air treatment plants
• Water treatment plants
• Working areas exposed to controls in demand of HACCP
Note: Data download requires a structural modification. In case of later purchase, MicroFlow™ α must be returned to Aquaria S.R.L. for software installation.
Part Number | Model | Use With | Includes |
AQ-G.1004 | MicroFlow™ α Kit 60 | Contact Plates 60 mm ± 2 mm | • MicroflowTM α sampler • IR remote control • Pencil torch • Additional 60 mm aluminum sampling head • Base for sampler vertical positioning • Battery charger • Calibration report • Warranty card • User manual • Carrying case |
AQ-G.1004-SS | MicroFlow™ α Stainless Steel Kit 60 | Contact Plates 60 mm ± 2 mm | • MicroflowTM α sampler • IR remote control • Pencil torch • Additional 90 mm aluminum sampling head • Base for sampler vertical positioning • Battery charger • Calibration report • Warranty card • User manual • Carrying case |
AQ-G.1015 | MicroFlow™ α Kit 90/C, With Flow Compensation | 90 mm ± 2 mm Petri Dish | • MicroflowTM α sampler • IR remote control • Pencil torch • 60 & 90 mm aluminum head assembly • Base for sampler vertical positioning • Battery charger • Calibration report • Warranty card • User manual • Carrying case |
AQ-G.1015-SS | MicroFlow™ α Stainless Steel Kit 90/C, With Flow Compensation | 90 mm ± 2 mm Petri Dish | - |
AQ-G.1027 | MicroFlow™ α Kit 60-90/C, With Flow Compensation | 60 mm ± 2 mm Contact Plate & With 90 mm ± 2 mm Petri Dishes | - |
AQ-G.1120 | Digital Calibration Kit | MicroFlow™ α | • Digital Differential Pressure Meter • Fitting Tubes • Conversion Table |
AQ-G.1117-A | USB Interface For Data Download To PC | • Data Transmission • Data Management Software (In Compliance With UNICHIM No.1962) | |
AQ-A.2004 | 3 ft. Master Type Stand | - |
